PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2800 × 1190 mm
Overall footprint	2800 x 2800 x 1190 mm
Worksurface height	750 mm
Per-user worksurface depth	750 mm
Per-user worksurface width	1400 mm
Privacy partition height	1190 mm
Curved knee clearance opening width	680 mm
Under-desk knee clearance height	670 mm
3-drawer pedestal dimensions	400 x 500 x 650 mm
Cable grommet diameter	60 mm
Desktop panel thickness	25 mm
Partition frame wall thickness	1.8 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation static load capacity	600 kg
Recommended user capacity	4 people
Product net weight	280 kg
Commercial warranty period	5 years
Drawer slide cycle rating	50000 cycles
Surface abrasion resistance	2000 cycles
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worksurface substrate	25mm melamine-faced particleboard
Partition frame	1.8mm thick powder-coated white aluminum alloy
Lower partition panels	Melamine-faced board matching worksurface finish
Upper partition panels	Frosted semi-transparent acrylic panels
Drawer pedestals	Powder-coated light gray steel construction
Drawer handles	White ABS plastic pull handles
Leveling feet	Nylon-base adjustable steel glides
Cable grommets	White ABS plastic desk grommets
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular assembly	Knock-down flat-pack construction
Privacy separation	Dual-panel dividers between all adjacent seats
Cable management	Corner cable grommets per work zone
Under-desk storage	3 integrated drawer pedestals per workstation (4 total)
Knee access	Curved arched cutout at each seating position
Floor leveling	Adjustable glides on all frame base points
Pedestal mobility (optional)	Integrated casters compatible
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Provides structured individual work zones for 4 staff without full wall construction
Small to medium business offices	Balances individual privacy and cross-team collaboration for departmental clusters
Startup and co-working spaces	Modular design supports flexible reconfiguration as team size changes
Back-office administrative areas	Integrated drawer storage supports paperwork and supply organization for daily tasks
Staff work zones requiring cable access	Built-in grommets support computer, phone and peripheral wiring without clutter
Commercial office fit-out projects	Standard dimensions allow integration with common office layout planning grids

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables safety and strength requirements, applicable to worksurface design
EN 1335-1:2020	Office furniture seating dimensional coordination reference for knee clearance design
EN 12521:2015	Furniture strength durability and safety for domestic and non-domestic tables
EN 717-1:2004	Wood-based panel formaldehyde emission determination for indoor air quality

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard for load, durability and stability testing
ANSI/BIFMA X5.6-2016	Panel systems performance standard for partition panel strength and stability
ANSI/BIFMA X5.3-2019	Vertical files performance standard for drawer pedestal durability and load

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worksurface and panel components
GB/T 3325-2017	Metal furniture general technical requirements, applicable to steel frames and pedestals
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor office furniture use
GB/T 10357.1-2013	Furniture mechanical performance test for tables, applicable to worksurface load testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worksurface and panel components;
2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frames and pedestals;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office furniture use;
4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to worksurface load testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-CRS4-LW-WF-3D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-CRS4-LW-WF-3D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-CRS4-LW-WF-3DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

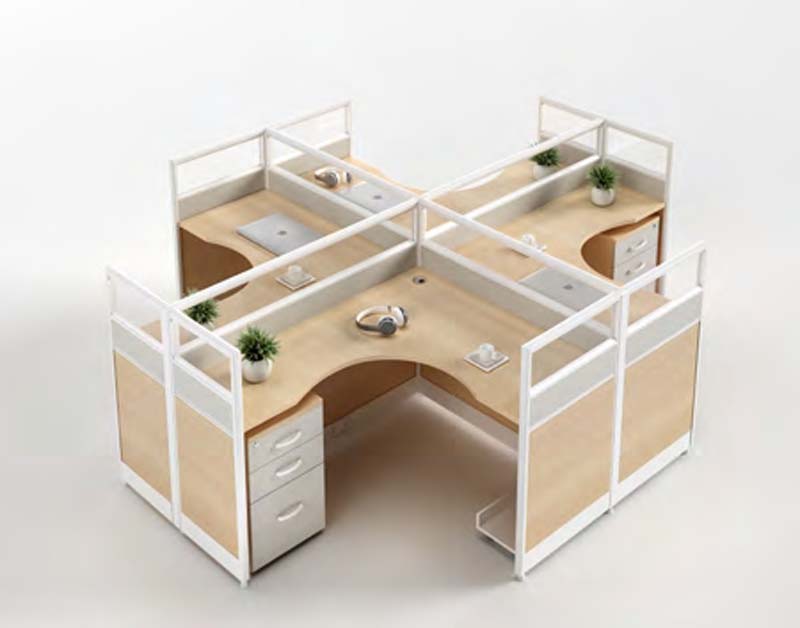

The 4-Person Cross-Shaped Office Cubicle Workstation with Drawer Pedestals, model CUB-CRS4-LW-WF-3D, is an unbranded modular work solution designed to balance privacy and collaborative access for shared office environments. Visually, the unit uses a symmetrical cross-shaped layout that divides the 2800 x 2800 mm footprint into four equal individual work zones, capped by 1190 mm tall partitions that separate adjacent seats without blocking overhead sightlines. Upper partition panels are frosted semi-transparent acrylic to diffuse light, while lower panels match the light wood-finish melamine worksurfaces, framed by clean powder-coated white aluminum supports for a streamlined, professional aesthetic. Each work zone features a 1400 mm wide, 750 mm deep worksurface set at the standard 750 mm desk height, with a curved 680 mm wide arched cutout at the knee space paired with 670 mm of vertical under-desk clearance to support comfortable seated positioning.
Durable, commercial-grade materials form the core of the workstation’s construction. Worksurfaces use 25 mm thick melamine-faced particleboard rated for 2000 cycles of surface abrasion, mounted to 1.8 mm thick powder-coated white aluminum frames secured with M6-M10 connectors that have at least two fixing points at every major joint. Each station includes four total 3-drawer pedestals, constructed from powder-coated light gray steel with white ABS plastic pull handles and drawer slides rated for 50000 open-close cycles; optional integrated casters allow pedestal mobility, while nylon-base adjustable steel glides at every frame base point support stable leveling on uneven flooring. The total unit carries a 600 kg static load capacity, holds a 5-year commercial warranty, and ships as a knock-down flat pack across two cartons, with a reference assembly time of 40 minutes per set.
Practical design elements support daily office use: each work zone includes a corner white ABS cable grommet to route computer, phone, and peripheral wiring without visible clutter, while the integrated drawer pedestals offer dedicated closed storage for paperwork and office supplies. The 1190 mm partition height delivers sufficient privacy for focused individual work while allowing easy cross-communication between adjacent team members, eliminating the isolation of full-height walled offices. This workstation is suited for open-plan office spaces, small to medium business department clusters, startup and co-working spaces that require flexible layout adjustments, back-office administrative areas, and standard commercial office fit-out projects, as its dimensions align with common office layout planning grids. Procurement teams should note the product ships unbranded, supports optional caster additions for mobile storage, and includes four drawer pedestals to match each of the four designated user positions; total packaged volume per set is 0.8 m³, with a packaged gross weight of 120 kg for logistics planning.

4-Person Cross-Shaped Office Cubicle Workstation with Drawer Pedestals Specifications
