Automatic mm / inch conversion · Core engineering specifications
| Overall workstation dimensions | 1200 x 700 x 1200 mm | |
|---|---|---|
| Worktop height from floor | 750 mm | |
| Worktop panel thickness | 25 mm | |
| Privacy partition thickness | 60 mm | |
| Knee clearance height under worktop | 680 mm | |
| Knee clearance depth under worktop | 600 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Translucent upper partition height | 350 mm | |
| Opaque lower partition height | 850 mm | |
| Cable grommet diameter | 60 mm | |
| Adjustable leveler foot height adjustment | 15 mm | |
| Mobile pedestal caster diameter | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Worktop static uniform load capacity | 91 kg | |
|---|---|---|
| Workstation net weight (assembled) | 110 kg | |
| Recommended user weight capacity | 136 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Caster rolling cycle rating | 25000 cycles | |
| Surface scratch resistance rating | 2H pencil hardness | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop substrate | 25mm thick medium-density fiberboard (MDF) | |
|---|---|---|
| Worktop surface finish | Scratch-resistant, water-resistant melamine laminate in light oak woodgrain | |
| Privacy partition frame | Anodized aluminum alloy extrusions with brushed metallic trim | |
| Partition upper section | Translucent frosted horizontal slat acrylic panel | |
| Partition lower section | Dark gray fabric-covered sound-dampening particleboard core | |
| Edge banding | 2mm thick impact-resistant PVC edge trim on all worktop and panel edges | |
| Mobile pedestal construction | Matching melamine-faced MDF with dark gray drawer front and light oak door | |
| Leveler feet | Galvanized steel threaded adjustable feet with non-slip rubber pads | |
| Pedestal casters | Black nylon swivel casters, two with locking brakes | |
| Drawer handle and lock | Brushed aluminum pull handle with integrated keyed cam lock | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
Adjustment / rotation / tilt / mobility / storage features

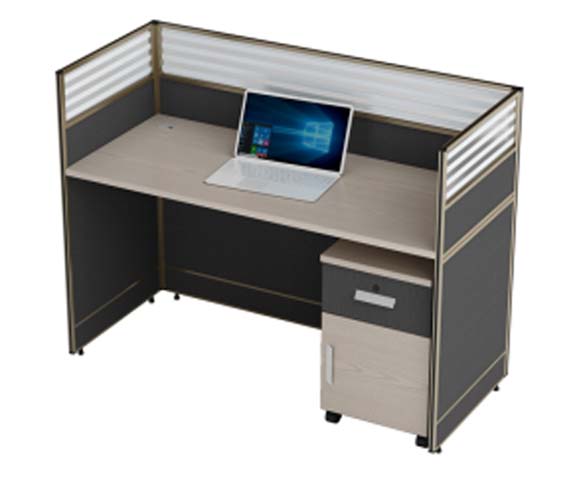

| Three-sided privacy partition | Encloses work area on left, rear, and right sides with open front entry for seated access | |
|---|---|---|
| Mobile storage pedestal | Fits under worktop right side, rolls on casters for repositioning with 1 lockable drawer and 1 door cabinet | |
| Cable management grommet | Recessed circular grommet positioned at rear-left worktop for power and data cable routing | |
| Adjustable leveling feet | Rotates on partition and pedestal bases to stabilize unit on uneven office flooring | |
| Locking storage drawer | Integrated key lock secures top drawer for personal office supply storage | |
| Mobile pedestal door storage | Lower cabinet door opens to reveal fixed shelf for CPU or file storage | |
| Translucent upper panel | Allows ambient light transmission while blocking direct sight lines for visual privacy | |
| Fabric lower partition | Reduces cross-workstation noise reflection and supports pushpin accessory attachment | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Open-plan office focus workstations | Provides semi-private individual work space in open office layouts for focused task work | |
|---|---|---|
| Call center and back office staff positions | Offers noise reduction and visual privacy for daily computer and document-based work | |
| Small office individual workstations | Suites single-employee offices needing separated work and personal storage space | |
| Startup and co-working dedicated desks | Provides assigned, partitioned work spaces with integrated storage for members | |
| Government and enterprise staff work areas | Meets commercial durability and modularity requirements for large-scale deployment | |
| Training room temporary work positions | Can be reconfigured and moved for flexible training or project team seating |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables - Dimensions, applicable for worktop height and clearance requirements | |
|---|---|---|
| EN 527-2:2002 | Office worktables - Mechanical safety requirements, applicable for structural stability | |
| EN 1335-1:2020 | Office work seating dimensions, applicable for coordinating seated clearance with desk |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Safety and performance standard for commercial office desk construction | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Safety and performance standard for mobile pedestal cabinets |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and pedestal construction | |
|---|---|---|
| GB/T 3327-2016 | Office desks, applicable for worktop dimensional and stability requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and pedestal construction; 2. GB/T 3327-2016: Office desks, applicable for worktop dimensional and stability requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to all engineered wood components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
