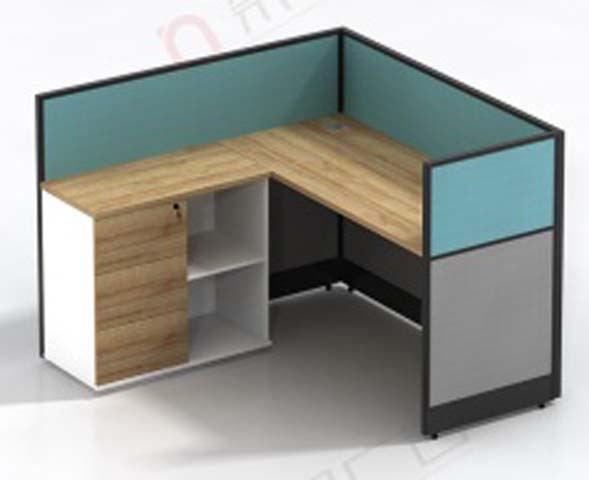

Single-Person L-Shaped Cubicle Office Workstation with Integrated Under-Desk Storage (model L-CUB-1P-1650-TEAL) is listed under L-Shaped Office Desk, with overall dimensions of 1650 × 1650 × 1200 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Fabric,privacy,dividers,L-shaped,corner,layout,integrated,under-desk,storage,modular,cubicle,structure. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 1650 x 1650 x 1200 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Work surface main segment width | 1500 mm | |
| Work surface return segment width | 1500 mm | |
| Work surface depth | 600 mm | |
| Clear knee opening width | 800 mm | |
| Clear knee opening height | 700 mm | |
| Privacy panel total height | 1200 mm | |
| Upper fabric panel height | 500 mm | |
| Lower solid modesty panel height | 700 mm | |
| Privacy panel thickness | 25 mm | |
| Work surface thickness | 25 mm | |
| Integrated storage cabinet width | 800 mm | |
| Storage cabinet depth | 500 mm | |
| Storage cabinet height | 700 mm | |
| Cable grommet diameter | 60 mm | |
| Leveler foot adjustment range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 91 kg | |
|---|---|---|
| Storage cabinet shelf static load | 25 kg | |
| Lockable cabinet door load | 15 kg | |
| Work surface abrasion resistance | 2000 cycles | |
| Recommended user weight capacity | 136 kg | |
| Product net weight | 91 kg | |
| Manufacturer warranty period | 10 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm particleboard core with thermally fused oak-look laminate finish | |
|---|---|---|
| Partition frame | 1.2mm thick powder-coated black steel extrusion | |
| Upper privacy panels | 18mm hardboard core wrapped in teal woven fabric | |
| Lower modesty panels | 18mm particleboard with grey and white matte laminate finish | |
| Storage cabinet | 18mm particleboard with oak-look door, white laminate interior and sides | |
| Hardware components | Zinc-plated steel connectors, hinges, lock cylinder and adjustable nylon glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 60mm desktop grommet routes cords to under-desk wire channels | |
|---|---|---|
| Floor leveling | Adjustable nylon glides on panel bases and supports compensate for 15mm floor unevenness | |
| Storage configuration | Fixed under-desk unit includes 1 lockable hinged door and 2 open storage cubbies | |
| Privacy screening | Three-sided 1200mm tall partitions block cross-desk line of sight for seated users |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office layouts | Provides individual seated work zones with visual privacy for staff | |
|---|---|---|
| Administrative and clerical workstations | Supports monitor, keyboard, document storage and daily office tasks |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2018 | Safety and strength requirements for office work desks | |
|---|---|---|
| EN 1335-2:2018 | Office chair compatibility clearance for desk knee wells | |
| EN 1022:2018 | Stability testing for seating and desk furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Performance standard for desk products | |
|---|---|---|
| ANSI/BIFMA X5.6-2021 | Performance standard for office panel systems |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2018 | Performance test methods for office desks | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2018: Performance test methods for office desks; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
