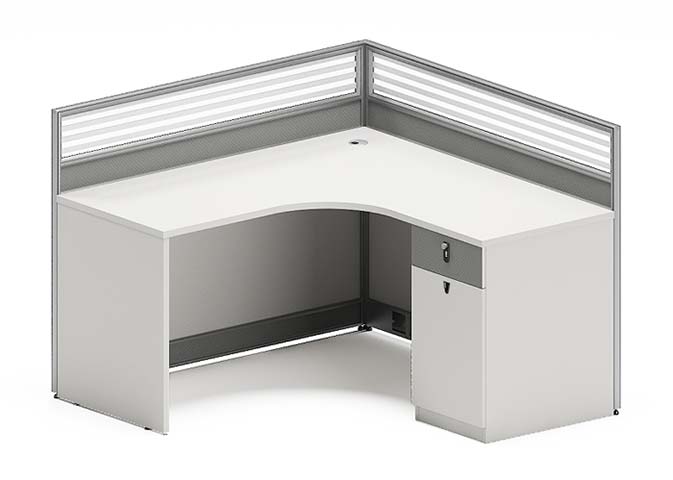

Single-Person L-Shaped Corner Office Cubicle Workstation with Built-In Lockable Storage and Privacy Screens (model LWS-CRV-1650-1D1C) is listed under L-Shaped Office Desk, with overall dimensions of 1651 × 1651 × 1200 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: L-shaped,corner,layout,mid-height,privacy,dividers,curved,ergonomic,knee,integrated,lockable,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint (including screens) | 1651 x 1651 x 1200 mm | |
|---|---|---|
| Desktop height from floor | 750 mm | |
| Desktop thickness | 25 mm | |
| Privacy screen thickness | 40 mm | |
| Privacy screen height above desk | 450 mm | |
| Edge banding thickness | 2 mm | |
| Knee opening width | 900 mm | |
| Under-desk knee clearance height | 725 mm | |
| Storage pedestal width | 400 mm | |
| Storage pedestal depth | 550 mm | |
| Cable grommet diameter | 80 mm | |
| Adjustable foot height adjustment | 15 mm | |
| Upper drawer internal height | 120 mm | |
| Lower cabinet internal height | 580 mm | |
| Work surface primary side depth | 600 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop uniform static load capacity | 120 kg | |
|---|---|---|
| Drawer slide opening cycle rating | 50000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Net product weight | 75 kg | |
| Locking mechanism cycle rating | 10000 cycles | |
| Recommended maximum user weight | 150 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate and finish | E1 grade particleboard with melamine laminate surface | |
|---|---|---|
| Edge banding | 2mm thick PVC rounded edge trim | |
| Privacy screen frame | Powder-coated aluminum alloy framing | |
| Privacy screen upper section | Frosted translucent horizontal slat panels | |
| Privacy screen lower section | Fabric-laminated sound-dampening fiberboard | |
| Storage cabinet and drawer panels | Matching melamine-faced engineered wood |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Rear-corner grommet with under-desk cable channel | |
|---|---|---|
| Lockable storage | Keyed lock for upper drawer and lower cabinet door | |
| Leveling adjustment | Threaded adjustable feet at base corners | |
| Privacy screening | Two-sided mid-height dividers with frosted upper slats |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office individual workstations | Provides dedicated private workspace in shared office environments | |
|---|---|---|
| Cubicle cluster arrangements | Modular design supports linear or clustered multi-seat office layouts |
EU Market Access Requirements* EN Standards
| Office furniture structural strength | EN 527:2002+A1:2019 | |
|---|---|---|
| Furniture surface durability | EN 15185:2011 | |
| Office furniture stability | EN 1730:2012 |
US and Canada office-furniture standards
| Desk safety and performance | ANSI/BIFMA X2021 | |
|---|---|---|
| Storage unit performance | ANSI/BIFMA X2019 |
Standards applicable to China-market projects
| Formaldehyde emission requirement | GB 18580 | |
|---|---|---|
| Desk structural safety requirement | GB/T 3324 | |
| Hardware durability requirement | GB/T 10357.5 |
This product must meet the following technical requirements: 1. Formaldehyde emission requirement: GB 18580; 2. Desk structural safety requirement: GB/T 3324; 3. Hardware durability requirement: GB/T 10357.5; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
