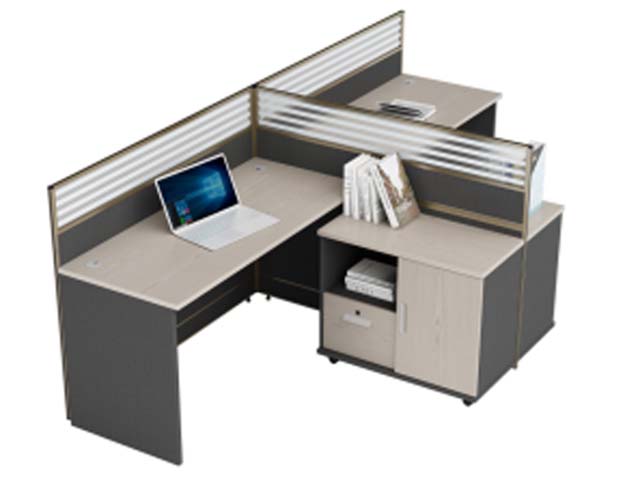

Product supplier2-Person L-Shaped Office Cubicle Workstation with Mobile Storage Cabinet, E1-grade melamine-faced chipboard, 25mm thick, 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3020 × 1530 × 1140 mm | |
|---|---|---|
| Standard worksurface height | 750 mm | |
| Semi-privacy partition panel height | 1140 mm | |
| Per-station L-shaped work surface size | 1500 x 1500 mm | |
| Under-desk knee clearance height | 650 mm | |
| Worksurface panel thickness | 25 mm | |
| Partition panel thickness | 60 mm | |
| Mobile storage cabinet dimensions | 580 x 400 x 635 mm | |
| Cable grommet diameter | 60 mm | |
| Adjustable foot height adjustment range | 15 mm | |
| Mobile cabinet caster diameter | 50 mm | |
| Open storage shelf internal height | 250 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 153 kg | |
|---|---|---|
| Per worksurface static load capacity | 100 kg | |
| Recommended user capacity | 2 people | |
| Surface abrasion resistance | 2000 cycles | |
| Manufacturer warranty period | 10 years | |
| Available color options | 5 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface panels | E1-grade melamine-faced chipboard, 25mm thick, 2mm PVC edge banding | |
|---|---|---|
| Partition panel frame | Anodized aluminum alloy extrusion, 1.2mm wall thickness | |
| Partition panel infill | Fabric-wrapped hardboard with horizontal frosted slat accents | |
| Desk support structure | Powder-coated square steel legs, 1.5mm wall thickness, with adjustable plastic levelers | |
| Storage cabinet panels | 18mm thick melamine-faced particle board, matching worksurface finish | |
| Cabinet hardware | Aluminum alloy pull handles, three-section ball-bearing drawer slides, keyed drawer lock | |
| Mobile cabinet casters | Nylon swivel casters, two with locking brakes | |
| Cable management components | ABS plastic cable grommets, under-desk PVC cable raceway | |
| Structural fasteners | Zinc-plated steel cam locks and connecting bolts | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seated privacy partition | Semi-high framed panels block direct line of sight between adjacent seated users | |
|---|---|---|
| Cable management | Dual surface grommets and under-desk raceway route power and data cords off work surfaces | |
| Mobile storage unit | Wheeled cabinet includes lockable drawer, open shelf, and closed storage door, repositionable along desk edge | |
| Floor leveling | Adjustable steel leg feet compensate for 15mm of uneven floor slope to keep work surface stable | |
| Lockable document storage | Keyed drawer lock secures private files and personal office items in mobile pedestal | |
| Modular layout flexibility | Knock-down panel connection allows reconfiguration to alternate multi-station layouts | |
| Reversible workstation orientation | Symmetric partition frame supports left or right L-arm configuration per seat | |
| Mobility lock for storage cabinet | Two locking casters fix the mobile cabinet in position during active use | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Provides dedicated semi-private workspaces for teams in open office layouts without full wall construction | |
|---|---|---|
| Small business administrative offices | Suitable for 2-person admin, accounting or customer service teams requiring on-desk storage | |
| Call center and telemarketing floors | Low partitions reduce visual distraction while allowing supervisor visibility across the floor | |
| Startup and co-working spaces | Modular design allows fast reconfiguration as team size and layout needs change | |
| Government and corporate back-office zones | Durable commercial construction supports heavy daily use for long-term office deployments | |
| Satellite office branch locations | Flat-pack shipping and simple assembly reduce installation cost for remote office setups |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applicable to work surfaces and support structures | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensions for seated work, applicable to worksurface height and knee clearance | |
| EN 1022:2018 | Furniture seating stability test reference for workstation user load stability verification |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products performance and safety standard, recommended for structural load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office storage units performance standard, applicable to mobile cabinet and drawer components | |
| ANSI/BIFMA G1-2013 | Ergonomic guidelines for office furniture, applicable to worksurface height and clearance dimensions |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel-based work surfaces and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Technical requirements for office desks and workstations, applicable to structural stability and load performance | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement for all board components |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel-based work surfaces and cabinet components; 2. GB/T 3327-2017: Technical requirements for office desks and workstations, applicable to structural stability and load performance; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade requirement for all board components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
