PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2820 × 2820 × 1100 mm
Overall footprint	2820 x 2820 x 1100 mm
Standard work surface height	750 mm
Single L-shaped worktop size per seat	1400 x 1200 mm
Worktop thickness	25 mm
Privacy divider height above worktop	350 mm
Divider panel thickness	10 mm
Knee clearance height under worktop	650 mm
Knee cutout radius at user position	300 mm
Support leg diameter	60 mm
Cable grommet diameter	60 mm
Pedestal drawer unit size per seat	400 x 500 x 600 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation net weight	110 kg
Static load capacity per work surface	100 kg
Worksurface scratch resistance	2000 cycles
Recommended user capacity	4 people
Product warranty period	3 years
Available finish color options	4
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop surface	Light wood grain melamine laminate on E1 particleboard core
Drawer front panels	Navy blue matte painted MDF
Pedestal cabinet body	Light grey melamine coated particleboard
Privacy dividers	Semi-transparent frosted acrylic with perforated lower panel and black frame
Support legs	White powder-coated cylindrical steel tubing
Hardware and connectors	Zinc-plated steel brackets and cam lock fasteners
Cable grommets	ABS plastic round desk outlets
Divider center connector	Die-cast aluminum four-way junction bracket
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation layout	Cross X-layout with four facing L-shaped work zones separated by dividers
Cable management	Dual desktop grommets per seat for wiring pass-through to under-desk cable tray
Under-desk storage	Three-drawer fixed pedestal per seat for document and office supply storage
Privacy separation	Partial-height cross dividers block direct line of sight between adjacent users
CPU support	Rolling CPU stand mounted under each work surface for computer tower placement
Knee access	Curved concave cutout at each position provides leg room for seated users
Assembly connection	Modular bracket system allows reconfiguration of workstation layout
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Suitable for 4-person team clusters to balance collaboration and individual privacy
Call center and admin departments	Provides separated work zones with dedicated storage for high-volume daily task work
Startup and co-working spaces	Modular layout allows flexible expansion as team size grows
Small business back office	All-in-one cluster reduces furniture footprint while providing four dedicated work positions
Government and institutional offices	Durable commercial grade construction meets long-term daily public sector use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture work surface strength	EN 527:2002
Office chair and desk ergonomics	EN 1335:2020
Formaldehyde emission for panels	EN 13986:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Office desk structural performance	ANSI/BIFMA X2021
Storage pedestal performance	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Office desk structural requirement	GB/T 3326
Wood-based panel formaldehyde limit	GB 18580
Office furniture durability test	GB/T 10357.1

Standardized tender description text

This product must meet the following technical requirements:
1. Office desk structural requirement: GB/T 3326;
2. Wood-based panel formaldehyde limit: GB 18580;
3. Office furniture durability test: GB/T 10357.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-2820-LW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-2820-LW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-2820-LWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

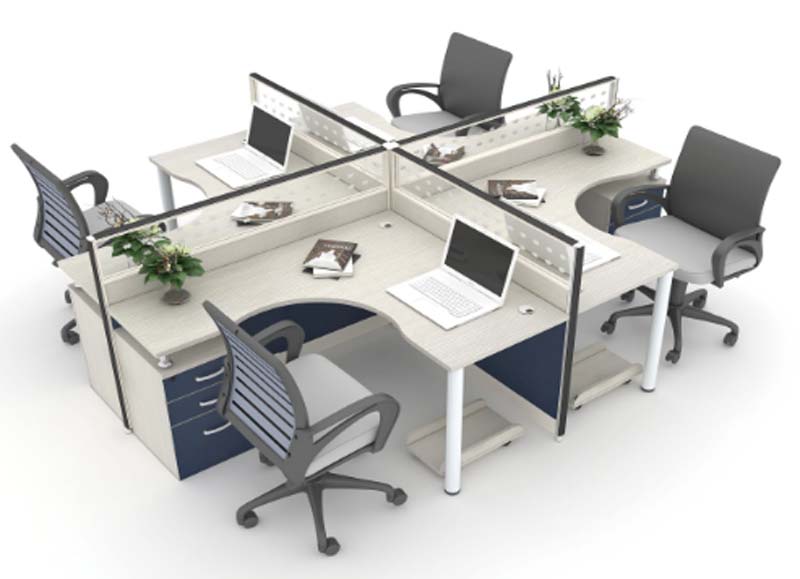

This 4-person cross-shaped office cubicle workstation is designed to deliver balanced privacy and collaborative access for small team clusters. Visually, it adopts a cross X-layout that splits the unit into four evenly spaced L-shaped work zones, centered on a four-way junction bracket that anchors partial-height privacy dividers between adjacent seats. Each seat faces a distinct direction, with frosted acrylic dividers framed in black creating soft visual separation without fully isolating team members; a light wood grain worktop contrasts with navy blue matte drawer fronts, light grey pedestal bodies, and white powder-coated support legs for a cohesive modern aesthetic that complements a wide range of interior palettes, with four total finish options available for coordination. The unit is constructed for commercial durability, with a 25 mm thick worktop made of light wood grain melamine laminate on an E1-grade particleboard core, supported by cylindrical steel tubing legs. Privacy dividers use semi-transparent frosted acrylic with perforated lower panels, fastened with zinc-plated steel brackets and cam lock hardware; die-cast aluminum forms the central cross connector, while ABS plastic cable grommets line work surface cutouts and drawer fronts use matte painted MDF over matching particleboard pedestals. Each individual work zone comes with practical features tailored to daily office use: dual desktop grommets per seat feed wiring to an under-desk cable tray, a fixed three-drawer pedestal stores documents and supplies, a rolling under-desk CPU stand holds computer towers, and a curved concave knee cutout provides comfortable clearance for seated users. The partial-height dividers block direct line of sight between neighboring users, and the modular bracket system supports layout reconfiguration as needs shift. This workstation suits a broad range of commercial spaces, including open plan office team clusters, call center and administrative departments, startup and co-working spaces, small business back offices, and government or institutional work areas. For procurement, note the unit ships in two cartons per set, supports four dedicated users, includes a three-year warranty, and is built to hold a static load per work surface suitable for standard office equipment; assembly time per set aligns with standard commercial furniture installation workflows, and the compact cross footprint reduces overall floor space use compared to individual standalone desks.

4-Person Cross-Shaped Office Cubicle Workstation with Dividers and Drawers Specifications
