PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation occupancy	2 users
Distributed work-surface load	100 kg per position
Integrated cabinet shelf load	20 kg per shelf
Single drawer load	15 kg
Task chair rated user weight	120 kg
Chair back dynamic load reference	150 kg
Chair caster rolling durability	100000 cycles
Gas-lift cycles	100000 cycles
Workstation net weight reference	150 kg
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced particleboard with sealed PVC edge banding
Storage cabinet panels	18 mm melamine-faced particleboard in white and wood-tone finishes
Support structure	Square steel legs and powder-coated steel frame plates with leveling feet
Privacy screen	Aluminum or steel framed translucent/fabric-faced partition panel with horizontal striping
Hardware	Ball-bearing drawer runners, connector cams, leveling feet and screen-mounting brackets
Task chair upholstery	Black breathable mesh back with green translucent mesh insert and black padded fabric seat

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workstation arrangement	Two opposing L-shaped positions provide separate writing, laptop and storage zones with a central privacy divider
Storage function	Each position includes a floor-standing side cabinet with at least one drawer and an open shelf compartment
Privacy and division	Low desktop screens separate adjacent users while retaining visibility above the panel
Cable management	Round cable grommet on the main top routes laptop or monitor cables below the work surface

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Workstation carton dimensions	1850 x 760 x 180 mm for the largest panel pack
Total gross weight	175 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office	Suits two-person clerical, administration or sales clusters where separate surfaces and low privacy screens are required
Training or administrative center	Can be repeated in rows for staff needing laptop space, document storage and rolling task seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-LSH-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-LSH-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-LSH-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

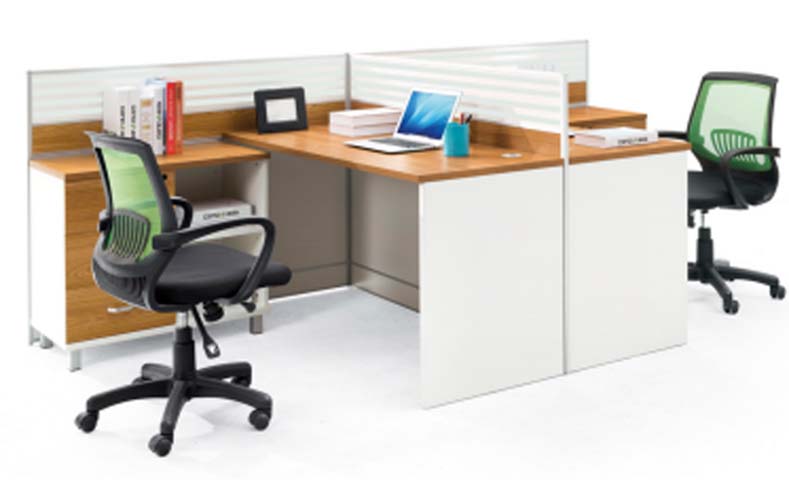

The Two-Person L-Shaped Panel Workstation with Mesh Task Chairs is configured as two opposing L-shaped work positions, giving each user a distinct writing, laptop, and storage zone while sharing a compact overall footprint. A central low privacy divider and desktop screens separate the adjacent users, with the low panel height preserving visibility above the partition. The translucent or fabric-faced screen is framed in aluminum or steel and finished with horizontal striping, contributing a structured, modern office appearance. Storage cabinet panels are offered in white and wood-tone finishes, paired with a black breathable mesh chair back, green translucent mesh insert, and black padded fabric seat. Work surfaces use 25 mm melamine-faced particleboard with sealed PVC edge banding, presented with a finished top thickness of 50 mm. Cabinets are also constructed from melamine-faced particleboard, while the support structure combines square steel legs and powder-coated steel frame plates. Leveling feet help adapt the workstation to the floor, and connector cams and screen-mounting brackets complete the primary fitting hardware. Each drawer operates on ball-bearing runners. The included task chairs use nylon-mesh construction and are supplied as part of the workstation set. Each position includes a floor-standing side cabinet with at least one drawer and an open shelf compartment, supporting everyday office storage close to the user. A round cable grommet on the main worktop routes monitor or laptop cables below the surface, and the cable opening is matched with a cable tray for organized containment. The layout provides 680 mm of knee clearance height and 900 mm of width at each main seat. The work surface is rated for a distributed load of 100 kg per position, shelves for 20 kg each, and individual drawers for 15 kg. The task chair is rated for a 120 kg user, with a 150 kg dynamic load reference for the back and casters tested through 100000 rolling cycles. This workstation is suited to open-plan offices, particularly two-person clerical, administration, or sales clusters that require separate surfaces, low-level privacy, and integrated storage. It is also appropriate for training or administrative centers where identical workstations can be arranged in rows for staff using laptops, storing documents, and working from rolling task seating. Procurement planning should account for the unbranded WS-2P-LSH-2800 model, occupancy for two users, and assembly-based delivery. The largest panel pack measures 1850 x 760 x 180 mm, with reference logistics listing either two cartons at 175 kg gross weight or four cartons at 180 kg per set depending on the packing configuration. A reference assembly time of 40 minutes per set should be treated as a planning guide. Buyers should also confirm finish availability, screen material preference, chair quantity, cabinet configuration, and site access before ordering.

Two-Person L-Shaped Panel Workstation with Mesh Task Chairs Specifications
