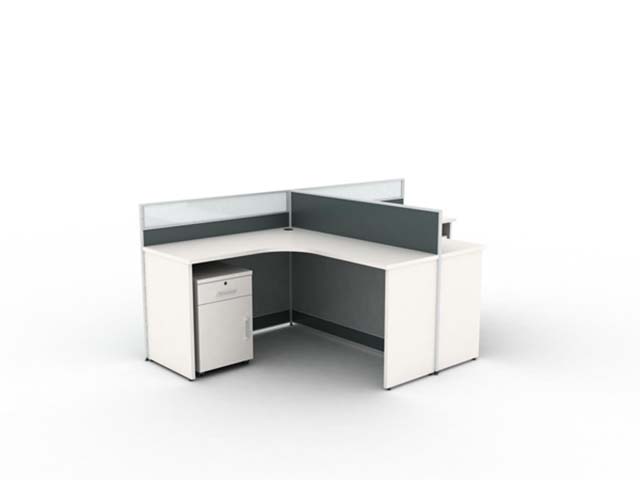

Product supplier2-Person Cluster L-Shaped Modular Office Cubicle Workstation with Mobile Pedestal, 25mm E0 grade melamine-faced particle board with 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 1800 × 1200 mm | |
|---|---|---|
| Overall 2-person cluster dimensions | 3600 x 1800 x 1200 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static uniform load capacity | 150 kg | |
|---|---|---|
| Mobile pedestal drawer static load per drawer | 25 kg | |
| Partition frame lateral stability load | 80 kg | |
| Recommended user weight capacity per seat | 120 kg | |
| Formaldehyde emission level (E0 grade panel) | 0.037 mg/m³ | |
| Melamine finish abrasion resistance cycles | 2000 cycles | |
| Product warranty period | 6 years | |
| Available standard color options | 44 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E0 grade melamine-faced particle board with 2mm PVC edge banding | |
|---|---|---|
| Partition frame | 60mm anodized aluminum profile with powder-coated finish | |
| Upper partition panel | 6mm frosted translucent acrylic panel | |
| Lower partition panel | 18mm dark gray fabric-wrapped fiberboard | |
| Side support cabinet panels | 16mm white melamine-faced particle board with PVC edge banding | |
| Mobile pedestal body | 0.8mm cold-rolled steel with epoxy powder coating | |
| Drawer slides | Full-extension low-noise ball-bearing steel slides | |
| Cable management components | ABS plastic cable grommet and under-desk raceway | |
| Leveling feet | Nylon base with steel threaded stem | |
| Hardware connectors | Zinc-plated steel knock-down connection fittings | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular cluster configuration | Supports assembly of 1, 2, 4, 6 or 8 connected workstations | |
|---|---|---|
| Cable management | 60mm corner grommet routes power/data cables to under-desk raceway | |
| Mobile pedestal storage | Rolling lockable pedestal fits fully under worktop with 1 utility drawer and 1 filing compartment | |
| Adjustable leveling | Threaded feet adjust up to 15mm to compensate for uneven floor surfaces | |
| Partition privacy separation | 1200mm half-height panels block seated line of sight between adjacent workers | |
| Knock-down assembly | Flat-pack design allows disassembly and reconfiguration for office layout changes | |
| Pedestal mobility | Four 30mm swivel casters on pedestal allow easy repositioning under desk | |
| Surface durability | Melamine worktop resists stains, scratches, and impact from daily office use | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan corporate office staff areas | Half-height partitions balance privacy and collaborative visibility for team workspaces | |
|---|---|---|
| Small business shared workspaces | Modular 2-person cluster fits compact office footprints for startup teams | |
| Call center and administrative work zones | Sound-dampening fabric panels reduce cross-talk distraction for task-focused work | |
| Co-working space dedicated private desk zones | Lockable mobile pedestals provide secure personal storage for rotating users | |
| Government and public institution office areas | Meets mandatory formaldehyde emission and flame retardant standards for public buildings | |
| Temporary project office setups | Knock-down design allows fast assembly, disassembly, and reconfiguration for short-term projects |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for work surfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture, ergonomic dimensions for seated workstations | |
| EN 1022:2018 | Domestic and office furniture, seating stability test methods reference |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products, safety and performance standard for office work surfaces | |
|---|---|---|
| ANSI/BIFMA X7.1-2022 | Standard for formaldehyde and TVOC emissions from office furniture systems |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet panels | |
|---|---|---|
| GB/T 14531-2017 | Office furniture work desks and tables, dimensional and stability requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, mandatory for indoor office use | |
| GB 20286-2006 | Flame retardant requirements for public place furniture, applicable to commercial office installations |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet panels; 2. GB/T 14531-2017: Office furniture work desks and tables, dimensional and stability requirements; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, mandatory for indoor office use; 4. GB 20286-2006: Flame retardant requirements for public place furniture, applicable to commercial office installations; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
