PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation recommended load capacity	80 kg distributed across both work surfaces
Single work surface point load	30 kg over a 300 x 300 mm area
Task chair recommended user weight	120 kg
Chair seat static verification load	8000 N
Caster rolling durability	100000 cycles on hard flooring
Gas lift height adjustment cycles	100000 cycles
Seating capacity	2 workers at the workstation and 1 included mesh task chair
Floor occupancy allowance	1.68 square meters per workstation module
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm melamine-faced wood-composite panel with sealed edge banding
Storage cabinets	18 mm melamine-faced composite panels in oak and white finishes
Divider screen	Silver aluminum frame with horizontal white slats and translucent infill strips
Modesty panel	Dark composite panel beneath the curved work surface
Drawer hardware	Steel side-mount drawer slides with recessed handle pull
Chair back	Black polymer frame with green flexible mesh backrest

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seated privacy screening	Two slatted screens separate adjacent workers while preserving airflow and partial visibility
Storage support	Each outer pedestal provides drawer storage above a cabinet-enclosed support bay
Chair height adjustment	Gas-lift seat-height adjustment with 100 mm stroke and side lever operation
Chair movement	360-degree swivel seat, reclining mesh back and twin-wheel casters for mobile task use

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Main carton dimensions	1300 x 700 x 120 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office use	Suits two adjacent employees in call centers, admin teams or back-office processing because the low screen defines personal work zones without blocking light.
Procurement configuration	Use as a repeatable cluster unit in row planning; add chair quantity, cable ports and drawer locks as project-specific order options.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety standard	EN 527:2011 safety requirements for office desks and workstations
Office chair safety standard	EN 1335:2018 safety requirements for office work chairs
Office chair dimensional standard	EN 1335:2020 dimensions for office work chairs
Formaldehyde panel emission	EN 13986:2004+A1:2015 wood-based panel characteristics and formaldehyde classification

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Chair structural verification	ANSI/BIFMA X5.1 Office Chairs standard for back, seat, base, arm and caster loads
Desk structural verification	ANSI/BIFMA X5.5 Desk Products standard for strength, stability and fatigue testing

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk safety and structural acceptance	GB/T 3324dimensions and structural quality requirements for wooden furniture
Formaldehyde emission acceptance	GB 18580formaldehyde emission limits for wood-based panels
Office chair mechanical acceptance	GB/T 10357.3furniture strength and durability test method for seating

Standardized tender description text

This product must meet the following technical requirements:
1. Desk safety and structural acceptance: GB/T 3324dimensions and structural quality requirements for wooden furniture;
2. Formaldehyde emission acceptance: GB 18580formaldehyde emission limits for wood-based panels;
3. Office chair mechanical acceptance: GB/T 10357.3furniture strength and durability test method for seating;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-CRV-2400-MESH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-CRV-2400-MESH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-CRV-2400-MESHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

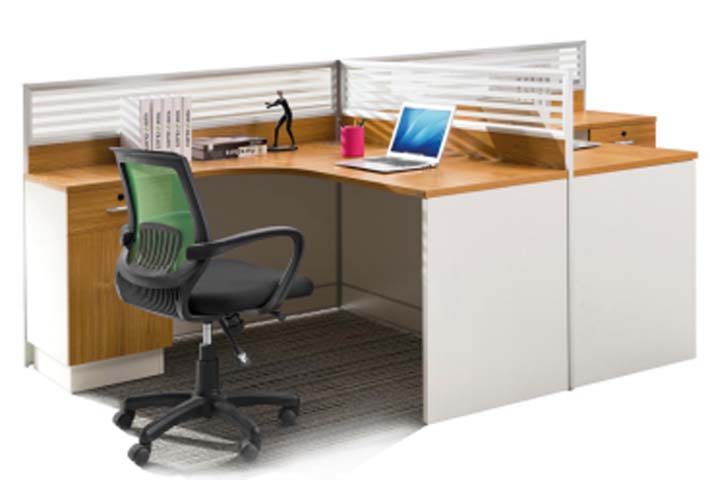

The Two-Person Curved Panel Workstation with Mesh Task Chair is an unbranded office workstation configured as a coordinated two-position layout with a curved work surface, divider screens, pedestal storage, and one included mesh task chair. Its form is intended for adjacent workers: the curved top creates a shared footprint, while two slatted divider screens define separate personal zones without closing the layout off from the surrounding office. The screens use silver aluminum frames with horizontal white slats and translucent infill strips, providing seated privacy, partial visibility, and airflow. A dark composite modesty panel sits beneath the curved work surface, and the storage cabinets are offered in oak and white finishes. The work surface is made from a melamine-faced wood-composite panel with sealed edge banding, while the cabinets use melamine-faced composite panels. Storage is integrated into each outer pedestal, combining drawer storage above a cabinet-enclosed support bay. Drawers operate on steel side-mount slides and use recessed handle pulls. The support structure uses an 80 mm main leg section with a 2 mm metal wall, and the finished top thickness is 50 mm. Cable management is addressed through an 80 mm diameter cable opening and a cable tray with 120 mm depth. Each main seat position provides 680 mm high and 900 mm wide effective knee clearance. The workstation has a recommended distributed load capacity of 80 kg across both work surfaces, with a single-surface point load rating of 30 kg over a 300 by 300 mm area. The included chair pairs a green flexible mesh backrest with a black polymer frame, upholstered seating, and a steel base. It supports gas-lift seat-height adjustment through a side lever with a 100 mm stroke, a 360-degree swivel seat, a reclining back, and twin-wheel casters. The recommended user weight is 120 kg. Because only one mesh task chair is included while the workstation seats two workers, planners should confirm chair quantity when specifying complete work settings. This system is suited to open-plan commercial interiors where two adjacent employees need defined spaces, including call centers, administrative teams, and back-office processing areas. Its low screening helps preserve light while giving users a sense of individual territory. It can also serve as a repeatable cluster unit for row-based office planning. Procurement teams should review project-specific options such as additional chairs, extra cable ports, and drawer locks. Packaging and installation planning should account for multiple cartons and assembly time of 40 minutes per set, with reference packaged gross weight of 180 kg per set and reference packaging volume of 1 m³ per set.
