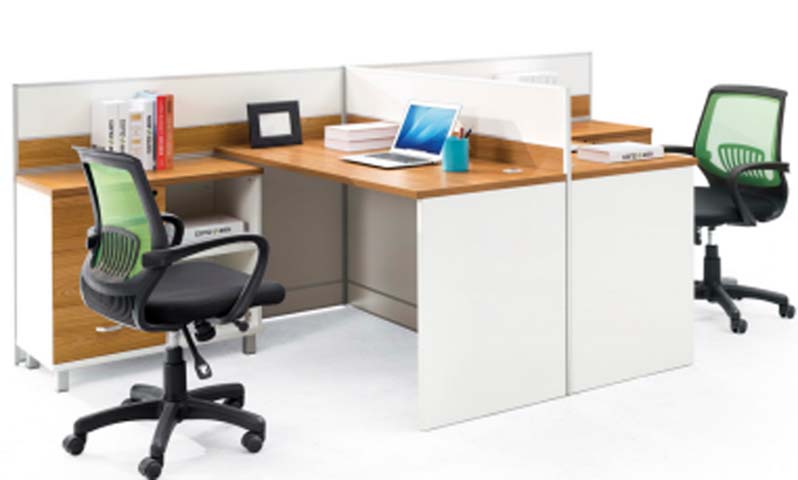

Product supplierTwo-Person Modular Panel Workstation with Swivel Mesh Task Chairs, 25 mm particleboard substrate with melamine laminate surface and 2 mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Desktop distributed static load | 80 kg per work surface | |
|---|---|---|
| Desktop concentrated point load | 30 kg on a 100 x 100 mm area | |
| Pedestal drawer slide load rating | 25 kg per drawer | |
| Drawer slide durability | 50,000 open-close cycles | |
| Cabinet hinge durability | 50,000 open-close cycles | |
| Cable tray load capacity | 10 kg per run | |
| Task chair rated occupant load | 120 kg | |
| Chair gas-spring height adjustment | 100 mm stroke | |
| Chair swivel durability | 100,000 360-degree rotations | |
| Chair base and caster impact stability | five-star base with five 50 mm casters |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop | 25 mm particleboard substrate with melamine laminate surface and 2 mm PVC edge banding | |
|---|---|---|
| Side panels and modesty panels | 18 mm melamine-faced particleboard with matching sealed edge banding | |
| Privacy screen | 30 mm fabric-laminated composite panel over rigid core with silver-gray metal perimeter frame | |
| Pedestal cabinet body | 18 mm melamine-faced particleboard with doweled and cam-fastened corner joints | |
| Drawer box | 12 mm hardboard or particleboard sides with metal roller slides and recessed pull handle | |
| Support frame | 40 x 40 mm powder-coated square steel legs with 1.5 mm tube wall and adjustable floor glides |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
|---|---|---|
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
No data is available for this section.
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.1 |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2024 General Technical Requirements for Wooden Furniture | recommended for panel dimensions, edge sealing, finish and structural workmanship. | |
|---|---|---|
| GB/T 3325-2017 General Technical Requirements for Metal Furniture | recommended for welded steel supports, coating integrity and stability. | |
| GB/T 10357.5-2011 Furniture Test for Surface Physical and Chemical Properties | recommended for abrasion, impact and stain acceptance. | |
| GB 18580-2017 Formaldehyde Emission for Interior Decoration Materials | recommended as board emission acceptance criterion. | |
| GB/T 28004-2023 Swivel Office Chairs | recommended for chair safety, stability, strength and durability acceptance. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2024 General Technical Requirements for Wooden Furniture: recommended for panel dimensions, edge sealing, finish and structural workmanship.; 2. GB/T 3325-2017 General Technical Requirements for Metal Furniture: recommended for welded steel supports, coating integrity and stability.; 3. GB/T 10357.5-2011 Furniture Test for Surface Physical and Chemical Properties: recommended for abrasion, impact and stain acceptance.; 4. GB 18580-2017 Formaldehyde Emission for Interior Decoration Materials: recommended as board emission acceptance criterion.; 5. GB/T 28004-2023 Swivel Office Chairs: recommended for chair safety, stability, strength and durability acceptance.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
