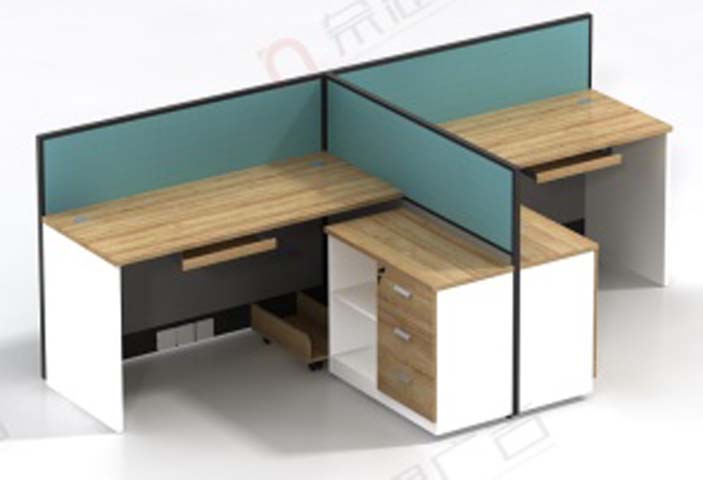

Two-Person L-Shaped Partitioned Office Cubicle Workstation with Storage Pedestals (model WS-2P-L-PART-TEAL-OAK) is listed under L-Shaped Office Desk, with overall dimensions of 2800 × 2400 × 1100 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: Modern,commercial,office,style,back-to-back,two-seat,L-shape,integrated,privacy,partitions,drawer,storage,pedestals,pull-out,keyboard,trays,cable,grommets. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 2800 x 2400 x 1100 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Individual L-workstation arm length | 1400 mm | |
| Work surface depth | 600 mm | |
| Work surface thickness | 38 mm | |
| Privacy partition total height | 1100 mm | |
| Privacy partition thickness | 35 mm | |
| Seated knee clearance height | 650 mm | |
| Knee clearance width per position | 700 mm | |
| 3-drawer fixed pedestal dimensions | 400 x 600 x 700 mm | |
| 3-drawer mobile pedestal dimensions | 400 x 550 x 600 mm | |
| Keyboard tray extension length | 350 mm | |
| Cable grommet diameter | 60 mm | |
| Modesty panel height | 400 mm | |
| Caster diameter (mobile pedestal) | 48 mm | |
| PVC edge banding thickness | 3 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-work-surface static load capacity | 113 kg | |
|---|---|---|
| Total unit assembled weight | 238 kg | |
| Recommended user weight capacity per position | 136 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Adjustable leveling foot adjustment range | 15 mm | |
| Drawer slide cycle rating | 50000 cycles | |
| Warranty period | 10 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface core | E1 grade particleboard core, low formaldehyde emission, 38mm thick | |
|---|---|---|
| Work surface finish | Thermally fused melamine laminate, oak wood grain pattern, stain and scratch resistant | |
| Panel edging | 3mm thick impact-resistant PVC edge banding, matched color finish | |
| Support frame and legs | 1.2mm thick powder-coated steel rectangular tube, matte white and dark charcoal finish | |
| Privacy partition panels | Fabric-wrapped hardboard core with black powder-coated steel perimeter frame, teal finish | |
| Drawer hardware | Full-extension ball-bearing steel slides, zinc-plated finish; keyed aluminum drawer pulls |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Back-to-back paired L-shaped stations for two individual seated users, separated by central privacy partitions | |
|---|---|---|
| Keyboard storage | Pull-out under-desk keyboard tray per position, slides smoothly on steel runners for input device placement | |
| Storage configuration | One fixed three-drawer pedestal with open side shelf per position, one mobile three-drawer rolling pedestal per cluster | |
| Cable management | Dual desk-top grommets per station route power and data cables below work surface to under-desk wiring channels |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff work areas | Creates defined, semi-private individual work positions for general administrative and clerical staff | |
|---|---|---|
| Small team department zones | Groups two adjacent work positions to support close team collaboration while maintaining individual workspace |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables - Safety, strength and durability requirements, applicable to structural performance validation | |
|---|---|---|
| EN 1335-1:2020 | Office furniture - Office work chair dimensions, referenced for knee clearance ergonomic alignment | |
| EN 12521:2015 | Furniture - Strength, durability and safety for tables, applicable to desktop and frame load testing |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk Products - Tests for safety, durability and structural adequacy, recommended for commercial grade acceptance | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Tests for safety, durability and structural performance, applicable to drawer pedestals |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel construction and surface durability testing | |
|---|---|---|
| GB/T 3327-2017 | Performance and test methods for office desks and tables, applicable to static load and stability verification | |
| GB 18584-2001 | Limit of formaldehyde emission for wooden furniture, applicable to particleboard core material compliance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel construction and surface durability testing; 2. GB/T 3327-2017: Performance and test methods for office desks and tables, applicable to static load and stability verification; 3. GB 18584-2001: Limit of formaldehyde emission for wooden furniture, applicable to particleboard core material compliance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
