PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1200 × 1100 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Static uniform work surface load capacity	100 kg
Recommended seated user weight limit	120 kg
Net product weight (assembled)	68 kg
Pedestal lock cycle durability	10000 cycles
Work surface abrasion resistance	2000 revolutions
Screen panel impact resistance	10 J
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface substrate	18mm E1 grade particleboard
Divider screen panel	4mm frosted translucent acrylic
Frame and support structure	1.2mm thick cold-rolled steel
Drawer fronts and pedestal body	16mm E1 grade particleboard
Drawer handles	ABS plastic
Desk modesty panels	16mm particleboard
Pedestal lock	Zinc alloy keyed cam lock
Adjustable foot glides	Nylon base with steel threaded stem
CPU shelf casters	30mm diameter nylon swivel casters
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Integrated cable management grommet	60mm diameter port at desk corner, routes power and data cables below work surface
Lockable 3-drawer pedestal	Single key lock secures upper stationery drawer and two lower file drawers for private storage
Divider screen partition	350mm tall two-sided screen creates visual privacy between adjacent cubicle workstations
Rolling CPU storage shelf	Wheeled platform at right support leg holds desktop tower, slides out for equipment access
Curved knee well cutout	Contoured front edge increases seated leg room and reduces contact pressure during long work sessions
Adjustable floor glides	Threaded glides on support legs and pedestal base allow 10mm height adjustment to level desk on uneven floors
Fixed modular layout	L-shaped configuration provides separate zones for computer work and document handling within one footprint
Knock-down assembly design	Cam-lock and screw joinery allows on-site assembly without specialized fabrication tools
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office cubicle zones	Single-person workstation for clustered team layouts, provides visual separation between adjacent staff
Small business administrative spaces	Compact footprint fits startup and small office environments with limited square footage
Home office dedicated workspaces	Dual work zone design supports separate computer and paperwork areas for remote work
Call center and shared office environments	Low divider screen reduces distraction while maintaining supervisor visibility across teams
Permanent staff workstations	Lockable storage accommodates personal items and confidential office documents for daily use
Satellite office temporary setups	Knock-down design allows easy transport and reconfiguration for flexible workspace planning

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk safety standard	EN 527:2011
Furniture formaldehyde emission	EN 13986:2004+A1:2015
Office furniture stability	EN 14073:2004

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk performance standard	ANSI/BIFMA X2021
Storage unit performance	ANSI/BIFMA X2019

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk surface dimension standard	GB/T 3326
Particleboard emission standard	GB 18580
Surface durability standard	GB/T 17657
Metal coating standard	GB/T 2018

Standardized tender description text

This product must meet the following technical requirements:
1. Desk surface dimension standard: GB/T 3326;
2. Particleboard emission standard: GB 18580;
3. Surface durability standard: GB/T 17657;
4. Metal coating standard: GB/T 2018;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WKS-L1400-LCK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WKS-L1400-LCK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WKS-L1400-LCK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

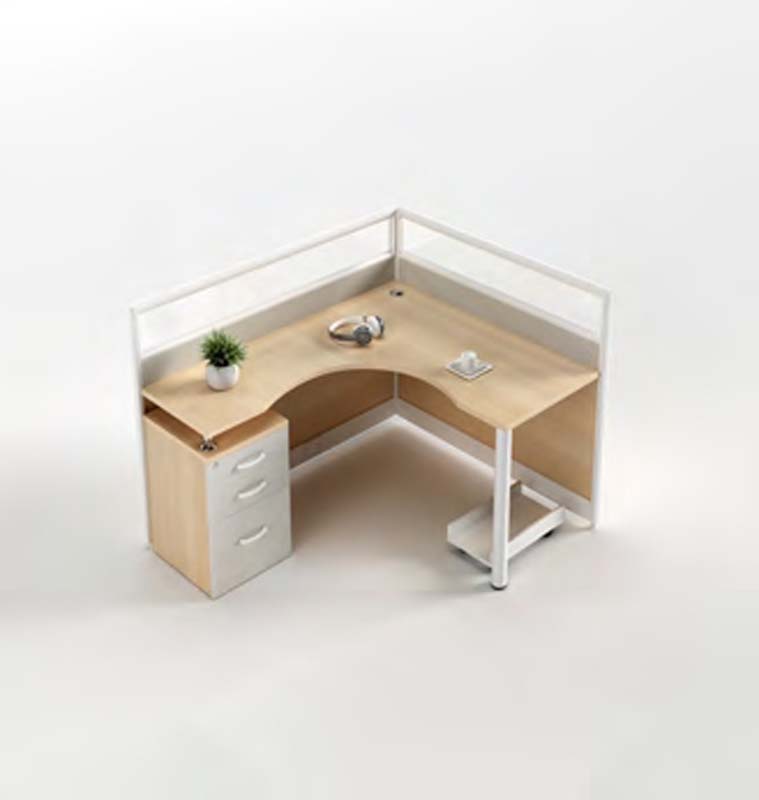

This unbranded L-shaped cubicle workstation (model WKS-L1400-LCK-01) delivers a structured, space-efficient work solution for both commercial and residential settings, with a fixed modular layout that creates distinct zones for computer tasks and document handling within a single compact footprint. A 350mm tall frosted translucent acrylic divider screen runs along the relevant work surface edge to deliver visual privacy between adjacent stations, while preserving open sightlines for team oversight. The clean, professional silhouette pairs matte melamine-finished panels with a streamlined powder-coated steel frame, complemented by contoured front edges at the knee well to support comfortable extended seated use. The attached 3-drawer pedestal integrates seamlessly with the desk frame, eliminating the need for separate loose storage units within the workspace. Constructed for consistent daily use, the workstation features E1 grade particleboard substrates across all wood-based components: an 18mm core forms the work surface, with 16mm panels used for drawer fronts, the pedestal body, and modesty panels, all finished in durable melamine facing. The support structure uses cold-rolled steel framing, with ABS plastic drawer handles, a zinc alloy keyed cam lock for the pedestal, nylon-based adjustable foot glides with steel threaded stems, and 30mm nylon swivel casters fitted to the pull-out CPU shelf. Component thickness is calibrated to load-bearing requirements across all structural sections, with designated operating clearance for all moving hardware parts. The work surface supports a 100kg static uniform load, and the pedestal lock is rated for 10,000 operating cycles; the acrylic divider screen delivers reliable impact resistance for standard office use, while the work surface provides tested abrasion resistance for regular wear. Practical built-in functions streamline daily work routines: a 60mm cable management grommet at the desk corner routes power and data cables below the work surface to reduce surface clutter, the lockable pedestal secures one upper stationery drawer and two lower file drawers for private or confidential document storage, and the rolling CPU shelf slides out from the right support leg for easy access to desktop equipment. Adjustable floor glides allow fine height tuning to level the unit on uneven flooring. The workstation is well suited for open-plan office cubicle clusters, small business administrative spaces, dedicated home offices, call center floors, shared coworking environments, permanent staff workstations, and satellite office setups that benefit from flexible reconfiguration. For procurement, note the unit ships knock-down in two cartons per set, with a 40-minute per-set reference assembly time, and a 120kg packaged gross weight to account for during delivery and installation planning.

L-Shaped Cubicle Workstation with Attached 3-Drawer Pedestal and Divider Screen Specifications
