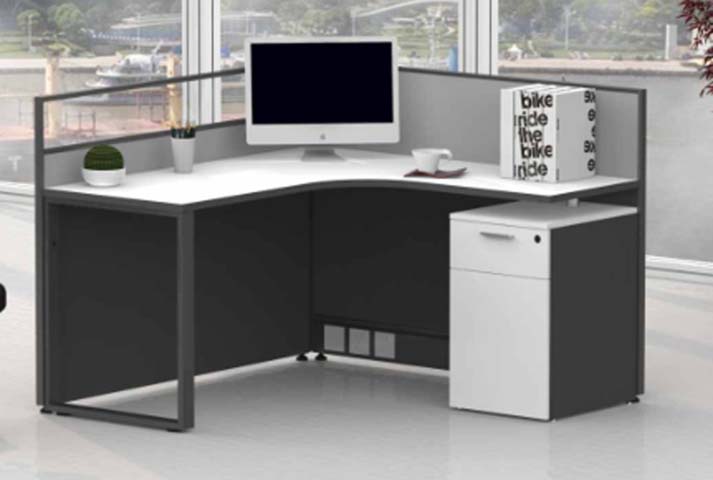

Single-User Curved Corner L-Shaped Cubicle Workstation with Mobile Pedestal (model CW-CORNER-1500-WDG) is listed under L-Shaped Office Desk, with overall dimensions of 1500 × 1500 × 1200 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: modular,cubicle,structure,two-tone,white-dark,gray,finish,frosted,glass,privacy,divider,mobile,file,pedestal. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall L-shaped footprint | 1500 x 1500 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Work surface depth (main section) | 600 mm | |
| Return work surface depth (pedestal side) | 450 mm | |
| Total partition height | 1200 mm | |
| Upper frosted glass panel height | 300 mm | |
| Lower privacy panel height | 900 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width (central opening) | 800 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Cable grommet diameter | 56 mm | |
| Worktop thickness | 25 mm | |
| Partition panel thickness | 45 mm | |
| Leveling glide adjustment range | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 100 kg | |
|---|---|---|
| Mobile pedestal drawer static load | 30 kg | |
| Workstation total net weight | 85 kg | |
| Recommended user weight limit | 136 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Leveling glide static load per foot | 80 kg | |
| Warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thick E0-grade melamine-faced particleboard with 2mm ABS edge banding | |
|---|---|---|
| Frame and partition structure | Powder-coated dark gray steel tubing with modular aluminum partition connectors | |
| Upper privacy divider | 5mm thick frosted tempered glass set in steel frame | |
| Lower modesty and privacy panels | 16mm thick dark gray melamine-faced MFC panels | |
| Mobile pedestal | Powder-coated steel cabinet body with white drawer fronts, central lock, and 50mm swivel casters | |
| Cable management | PVC cable grommets and under-desk steel wire raceway with base cutouts |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable routing system | Dual 56mm desk grommets and base raceway cutouts route power/data cords from floor to work surface | |
|---|---|---|
| Leveling adjustment | Adjustable glides at each frame foot compensate for uneven floors to keep work surface stable | |
| Mobile pedestal storage | 2-drawer lockable cabinet rolls fully under return work surface for concealed file and supply storage | |
| Modular reconfiguration | Bolt-together partition connectors allow rearrangement into multi-seat clusters with compatible workstation modules |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office individual workstations | Provides partial visual privacy without full height partitions for collaborative offices | |
|---|---|---|
| Small business corner office spaces | Fits unused corner areas to maximize floor space efficiency for single users |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to work surface performance | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Office work tables dimensional safety requirements, applicable to clearance dimensions | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to mobile pedestal unit |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for strength, durability and stability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for mobile pedestal load and durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to worktop and panel components | |
|---|---|---|
| GB/T 3325-2017 | Metal office furniture general technical requirements, applicable to steel frame and pedestal | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF panel substrates | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to desk strength and stability |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to worktop and panel components; 2. GB/T 3325-2017: Metal office furniture general technical requirements, applicable to steel frame and pedestal; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF panel substrates; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desk strength and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
