Name: 2-Person L-Shaped Office Cubicle Workstation with Integrated Storage
Brand: aibi furniture
SKU: FQ48T1

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1200 mm
Overall cluster dimensions	2800 x 1400 x 1200 mm
Work surface height from floor	750 mm
Knee clearance height under desktop	680 mm
Desktop depth per seating position	600 mm
Desktop thickness	25 mm
Privacy partition thickness	83 mm
Translucent upper partition section height	300 mm
Lower opaque fabric partition section height	900 mm
Integrated storage cabinet width	400 mm
Storage cabinet depth	600 mm
Cable grommet diameter	60 mm
Leveling foot adjustable height range	15 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat desktop static load capacity	91 kg
Total workstation net weight	170 kg
Maximum supported user weight per seat	136 kg
Laminate surface abrasion resistance	2000 cycles
Structure service life	10 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm thick MFC particleboard with thermally fused laminate finish
Partition frame	Powder-coated aluminum alloy extrusion
Lower partition panels	Dark gray fabric-upholstered hardboard tackable surface
Upper partition panels	Frosted translucent acrylic or tempered glass section
Storage cabinet carcass	18mm thick melamine-faced MFC with white finish
Drawer and cabinet hardware	Cold-rolled steel drawer slides with keyed cylinder lock
Structural supports	Powder-coated cold-rolled steel legs and panel connectors
Modesty panel	Dark gray fabric-covered hardboard matching partition finish
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	60mm diameter plastic grommet at desktop corner for wire routing
Storage configuration	One lockable utility drawer plus one hinged door cabinet per work position
Leveling adjustment	Threaded plastic-capped leveling feet on all partition and support bases
Privacy separation	1200mm tall partitions create visual separation between adjacent workstations
Modular connection	Pre-drilled panel connectors allow reconfiguration into alternate cluster layouts
Locking mechanism	Keyed cam lock secures both drawer and cabinet door for personal storage
Light transmission	Frosted upper partition section allows ambient light while maintaining seated privacy
Tackable surface	Fabric lower panels support pinning of notes and documents
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office staff zones	Creates semi-private workspaces for 2 employees in open floor plans
Small business administrative areas	Integrated storage eliminates need for separate file cabinets
Call center and back office spaces	Tackable fabric panels support posting of quick reference materials
Startup team work areas	Modular design allows reconfiguration as team size changes
Government and enterprise clerical zones	Lockable storage meets basic personal document security requirements

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables - Safety and strength requirements
EN 1335-1:2020	Office work chairs dimensional coordination
EN 1022:2019	Furniture - Seating and tables - Stability test

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Safety and performance standard
ANSI/BIFMA X5.9-2019	Storage Units - Safety and performance standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture
GB/T 3327-2017	Stability, strength and durability requirements for office desks
GB 18580-2017	Formaldehyde emission limits for wood-based panels

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture;
2. GB/T 3327-2017: Stability, strength and durability requirements for office desks;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CUB-2P-STOR-1400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CUB-2P-STOR-1400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CUB-2P-STOR-1400Open Export Tool

Quick Actions

Post an RFQ

Product Description

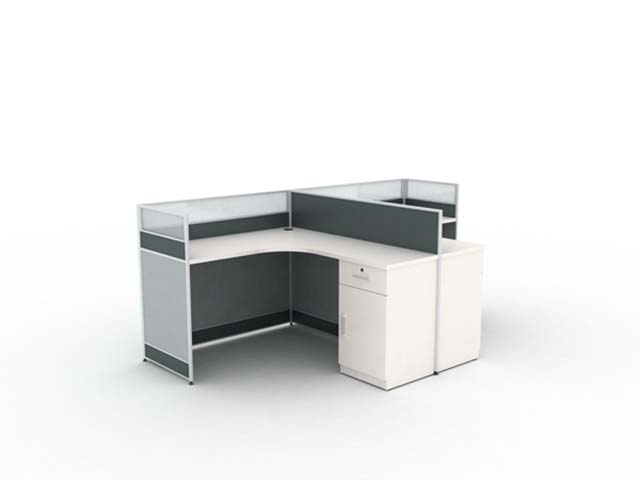

The 2-Person L-Shaped Office Cubicle Workstation with Integrated Storage, manufactured by aibi furniture under model L-CUB-2P-STOR-1400, is a purpose-built workspace solution tailored for shared office environments. Its L-shaped layout creates two dedicated seated work positions, framed by full-height privacy partitions that balance visual separation and light flow. The 1200mm tall partitions combine a lower dark gray fabric-upholstered tackable hardboard section with an upper frosted translucent acrylic or tempered glass panel, allowing ambient light to filter through while maintaining seated privacy. The matching fabric-covered modesty panel extends visual privacy below the work surface, and threaded plastic-capped leveling feet at all support and partition bases ensure stable placement on uneven flooring.
Constructed for durable daily use, the workstation features 25mm thick MFC particleboard work surfaces with a thermally fused laminate finish, supported by powder-coated cold-rolled steel legs and panel connectors. Partition frames are built from powder-coated aluminum alloy extrusion, with pre-drilled connectors that enable reconfiguration into alternate cluster layouts as needs evolve. Each position includes integrated storage built from 18mm thick white melamine-faced MFC, consisting of one lockable utility drawer and one hinged door cabinet secured by a keyed cam lock; cold-rolled steel drawer slides support smooth operation of moving components. A 60mm diameter plastic grommet at each desktop corner delivers integrated cable management to route wires out of sight, while the tackable lower partition panels provide a convenient surface for posting quick reference materials.
This workstation is well suited for open plan office staff zones, small business administrative areas, call center and back office spaces, startup team work areas, and government and enterprise clerical zones. Its integrated locking storage removes the need for separate file cabinets and supports basic personal document security, while its modular design adapts to changing team sizes. For procurement teams, note that each unit ships in 2 cartons, requires assembly, and carries a 10-year structure service life, with standardized M6-M10 connectors used at major structural joints to support long-term reconfiguration and maintenance.
