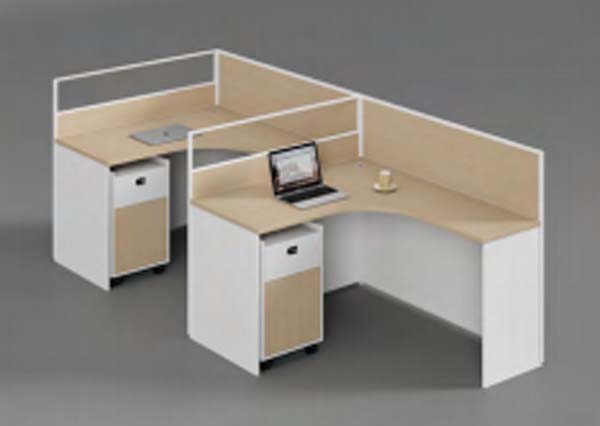

Product supplier2-Person Curved Corner Office Cubicle Workstation with Mobile Pedestals, P2 grade melamine-faced chipboard with 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2485 × 2305 × 1100 mm | |
|---|---|---|
| Overall cluster dimensions | 2485 x 2305 x 1100 mm | |
| Worksurface height from floor | 750 mm | |
| Per-seat worksurface length | 1800 mm | |
| Per-seat worksurface depth at corner | 1400 mm | |
| Worksurface panel thickness | 25 mm | |
| Privacy partition frame height | 1100 mm | |
| Partition panel thickness | 30 mm | |
| Seated knee well clearance height | 650 mm | |
| Knee well depth clearance | 600 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Pedestal caster diameter | 50 mm | |
| Metal support frame tube size | 55 x 40 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total set net weight | 120 kg | |
|---|---|---|
| Worksurface uniform static load capacity | 100 kg per seat | |
| Mobile pedestal drawer static load | 25 kg per drawer | |
| Pedestal cabinet shelf static load | 30 kg | |
| Recommended user weight per seat | 136 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Product warranty period | 6 years | |
| Available color finish options | 24 variants | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface core and finish | P2 grade melamine-faced chipboard with 2mm PVC edge banding | |
|---|---|---|
| Partition infill panels | Light beech-effect melamine MDF panels | |
| Partition support frames | Powder-coated white steel tubular frames | |
| Desk support panels | White melamine-faced chipboard modesty and side panels | |
| Mobile pedestal carcass | White melamine-faced chipboard with matching light wood door/drawer fronts | |
| Pedestal hardware | Black recessed drawer pulls, 4 swivel casters per unit | |
| Frame surface treatment | Epoxy powder coating on all steel components | |
| Fastener hardware | Zinc-plated steel assembly screws and connecting brackets | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy partition layout | Three-sided low dividers per seat separating adjacent work positions | |
|---|---|---|
| Mobile pedestal storage | One rolling unit per seat with 1 upper utility drawer and 1 lower enclosed cabinet | |
| Cable management access | Pre-drilled cable grommet at each work surface corner to route power and data cords | |
| Modular connection design | Pre-fabricated connecting brackets allow joining to additional workstation clusters | |
| Pedestal mobility | Four 360-degree swivel casters allow pedestals to be repositioned under desks or moved for cleaning | |
| Surface performance features | Stain-resistant, water-repellent and scratch-resistant melamine finish for daily office use | |
| Knock-down assembly | Flat-packed components with all required hardware for on-site assembly | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Suitable for 2-person team clusters in open offices to balance privacy and collaboration | |
|---|---|---|
| Small business staff work areas | Ideal for startup or small office layouts requiring dedicated workstations with integrated storage | |
| Shared co-working environments | Configurable for co-working spaces offering assigned individual work positions | |
| Administrative department work areas | Appropriate for admin, HR and operations teams requiring accessible under-desk storage | |
| Call center seating pods | Low partition height provides visual privacy without blocking supervisor sightlines | |
| Recommended pairing | Pair with mid-back ergonomic office chairs with 500mm seat depth to fit the 750mm work height |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable to safety and dimensional requirements for office work desks | |
|---|---|---|
| EN 14073-2:2004 | Applicable to safety requirements for office storage furniture including mobile pedestals | |
| EN 1022:2018 | Applicable to stability testing for seated office furniture and storage units | |
| EN 13722:2004 | Applicable to strength and durability requirements for office workstations |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Applicable to performance and durability testing for desk products | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Applicable to performance and safety testing for mobile office storage pedestals |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable to general technical requirements for wooden office desks and tables | |
|---|---|---|
| GB/T 3327-2017 | Applicable to performance requirements for office storage cabinets including mobile pedestals | |
| GB 18580-2017 | Applicable to formaldehyde emission limits for wood-based panel components used in indoor furniture | |
| GB/T 4893.8-2013 | Applicable to surface wear resistance testing for melamine furniture surfaces |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable to general technical requirements for wooden office desks and tables; 2. GB/T 3327-2017: Applicable to performance requirements for office storage cabinets including mobile pedestals; 3. GB 18580-2017: Applicable to formaldehyde emission limits for wood-based panel components used in indoor furniture; 4. GB/T 4893.8-2013: Applicable to surface wear resistance testing for melamine furniture surfaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
