Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 4 users | |
|---|---|---|
| Distributed work-surface load | 60 kg per workstation | |
| Pedestal top/static storage load | 40 kg per pedestal | |
| Drawer load capacity | 20 kg per locked drawer/door compartment | |
| Complete cluster net weight | 220 kg | |
| Leveling adjustment | 10 mm per foot | |
| Screen impact target | 10 kg lateral point load | |
| Warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25 mm melamine-faced particleboard or MDF with light gray finish and sealed edges | |
|---|---|---|
| Worktop edge banding | 2 mm PVC or ABS edge banding with matching light gray finish | |
| Support and pedestal panels | 18 mm melamine-faced engineered wood panels in light gray | |
| Pedestal front insert | Charcoal gray steel or hard-grade decorative panel with integrated key lock | |
| Divider frame | 30 x 30 mm rectangular gray metal uprights and rails | |
| Lower privacy panel | 18 mm charcoal gray laminate or fabric-covered composite panel | |
| Upper slatted screen | Horizontal aluminum or powder-coated steel slats in gray finish | |
| Center junction | Square metal connector post joining four divider runs | |
| Modesty and cable panel | 18 mm charcoal melamine-faced panel along the rear knee opening | |
| Leveling feet | Nylon or polypropylene round glides with steel threaded stems | |
| Lock hardware | Keyed cam lock with escutcheon on each pedestal front | |
| Cable grommet | 60 mm plastic round cable port with removable cover |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

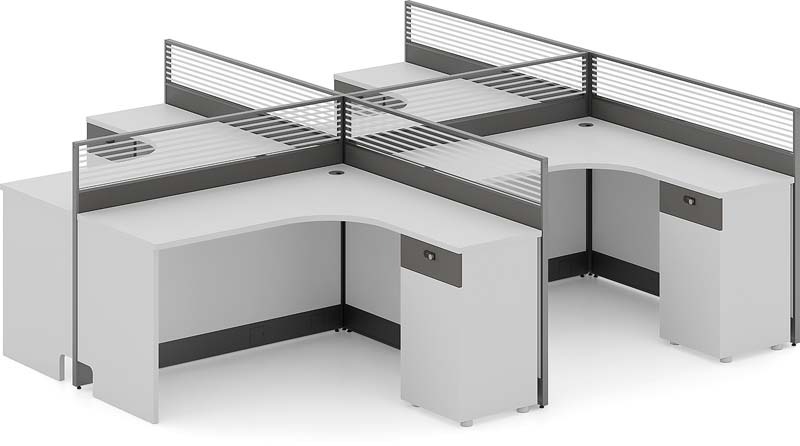

| Four-workstation configuration | Cross-shaped cluster places four users back-to-back, each with an independent curved L-shaped desk | |
|---|---|---|
| Curved ergonomic work edge | Concave front edge creates a 700 mm knee bay and keeps the user centered between side surfaces | |
| Pedestal storage and support | Each pedestal combines one lockable upper drawer front with a lower cabinet compartment and supports the outer desktop corner | |
| Central lock control | Keyed lock secures the pedestal compartment for personal or departmental storage | |
| Desktop cable routing | One 60 mm grommet per seat routes monitor and power cables from the work surface toward the rear channel | |
| Horizontal under-desk cable management | Rear charcoal panel conceals a continuous cable pathway shared by adjacent users | |
| Privacy division | 1100 mm high screens use a solid lower band and open slats to separate seats without blocking overhead light | |
| Modular extension | Divider posts and rails allow additional straight or cross modules to connect at the frame ends | |
| Floor leveling | Threaded 30 mm glides compensate for uneven floors and keep panels from rocking | |
| Assembly method | Knock-down panel and frame assembly using cam bolts, post connectors, screws, and foot glides | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total packed volume | 0.66 CBM | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suitable for teams of four where visual separation, shared footprint efficiency, and individual storage are required | |
|---|---|---|
| Call center or shared service area | Supports phone and computer work with separated sightlines, grommets, and personal locked storage | |
| Administrative workspace | Curved desk edge and 750 mm work height suit paperwork, keyboard entry, and document review | |
| Government or corporate processing area | Repeatable cross modules can be arranged in rows to create standardized four-person neighborhoods | |
| Training administration room | Useful for staff requiring fixed computers, printed forms, and secure daily storage | |
| Project sales configuration | Recommended with four task chairs, monitor arms, and under-desk power strips for a ready-to-occupy cluster | |
| Floor planning | Plan a 3200 x 3200 mm zone including 200 mm circulation and cable clearance around the cluster |
EU Market Access Requirements* EN Standards
| Office workstation strength guidance | EN 527dimensional and safety requirements for office desks | |
|---|---|---|
| Office desk mechanical testing | EN 527strength, durability, and stability test methods | |
| Storage cabinet safety guidance | EN 14073safety requirements for office storage furniture | |
| Storage durability guidance | EN 14073stability and structural strength test methods | |
| Upholstered panel fire guidance | EN 1021cigarette ignition test if fabric-covered panels are supplied |
US and Canada office-furniture standards
| Desk safety and performance | ANSI/BIFMA X5.5 desk products standard | |
|---|---|---|
| Pedestal storage performance | ANSI/BIFMA X5.9 storage units standard | |
| Panel-system guidance | ANSI/BIFMA E3 lounge and occasional furniture does not directly cover cubicles; use X5.5 and X5.9 for this hybrid cluster | |
| Facility air quality | ANSI/BIFMA e3 credit 7.6.1 or 7.6.2 formaldehyde emission level option |
Standards applicable to China-market projects
| Formaldehyde emission guidance | GB/T 39600, E1 limit for artificial wood boards used in indoor workstations | |
|---|---|---|
| Wood-panel dimension guidance | GB/T 3324 general technical requirements for wooden furniture | |
| Office furniture safety guidance | GB/T 3325 technical requirements for metal furniture | |
| Fire performance guidance | GB 20286 public-place fire protection classification for furniture components |
This product must meet the following technical requirements: 1. Formaldehyde emission guidance: GB/T 39600, E1 limit for artificial wood boards used in indoor workstations; 2. Wood-panel dimension guidance: GB/T 3324 general technical requirements for wooden furniture; 3. Office furniture safety guidance: GB/T 3325 technical requirements for metal furniture; 4. Fire performance guidance: GB 20286 public-place fire protection classification for furniture components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
