Name: 3-Station Inline L-Shape Office Workstation Cluster with Partitions and Pedestals
Brand: KANAITE
SKU: G35QPB

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 1400 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total net weight per 3-station cluster	255 kg
Static load per work surface	100 kg
Static load per drawer	25 kg
Seating capacity	3 users
Partition panel sound transmission class	20 STC
Caster rolling load capacity per stand	80 kg
Product warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	25mm melamine-faced particleboard, oak light finish, 2mm PVC edge banding
Support frame	1.2mm thick powder-coated square steel tube, white finish
Partition frame	Powder-coated steel rectangular tubing, white finish
Partition infill panel	Fabric-wrapped MDF core, light neutral finish
Pedestal drawer front	18mm melamine-faced particleboard, light gray finish
Pedestal cabinet body	18mm melamine-faced particleboard, matching oak finish
Drawer hardware	Cold-rolled steel drawer slides, white integrated pull handles
Mobile pedestal casters	50mm nylon swivel casters, 2 with brake function
Under-desk CPU stand	1.0mm powder-coated steel plate, white finish, 4 nylon casters
Cable grommet	ABS plastic, 60mm diameter, black finish
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection design	Pre-drilled joining points allow reconfiguration of cluster size
Cable management port	60mm grommet at back corner of each desk routes power and data cables
Curved knee cutout	Ergonomic arc front edge supports comfortable seated arm and leg positioning
Mobile 3-drawer pedestal	Three full-extension drawers lock in position under desk, roll out for access
Mobile CPU stand	Wheeled platform under right side of each desk holds desktop computer tower
Desk-mounted partition dividers	350mm high dividers separate adjacent workstations for visual privacy
Leveling adjustment feet	Steel leg bases have adjustable glides to compensate for uneven floors
Scratch-resistant work surface	Melamine finish resists abrasion and liquid spills for daily office use
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office areas	Fits 3 staff per cluster for open office layout space efficiency
Team work zones	Low partitions balance individual focus and easy team communication
Start-up office spaces	Integrated storage and cable management reduces additional furniture purchase needs
Call center work areas	Ergonomic curved cutout supports long-duration seated work posture
Small business admin offices	Standard 750mm work height matches generic ergonomic office chairs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk stability requirement	EN 527:2002+A1:2019
Office furniture edge safety	EN 12521:2015
Formaldehyde emission limit	EN 13986:2004+A1:2015 E1

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

Desk load and durability	ANSI/BIFMA X2021
Mobile storage pedestal performance	ANSI/BIFMA X2020

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk surface dimensional tolerance	GB/T 3324
Steel frame coating adhesion	GB/T 1993
Furniture formaldehyde emission	GB 18580E1 grade

Standardized tender description text

This product must meet the following technical requirements:
1. Desk surface dimensional tolerance: GB/T 3324;
2. Steel frame coating adhesion: GB/T 1993;
3. Furniture formaldehyde emission: GB 18580E1 grade;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L3-120-OAK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L3-120-OAK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L3-120-OAKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

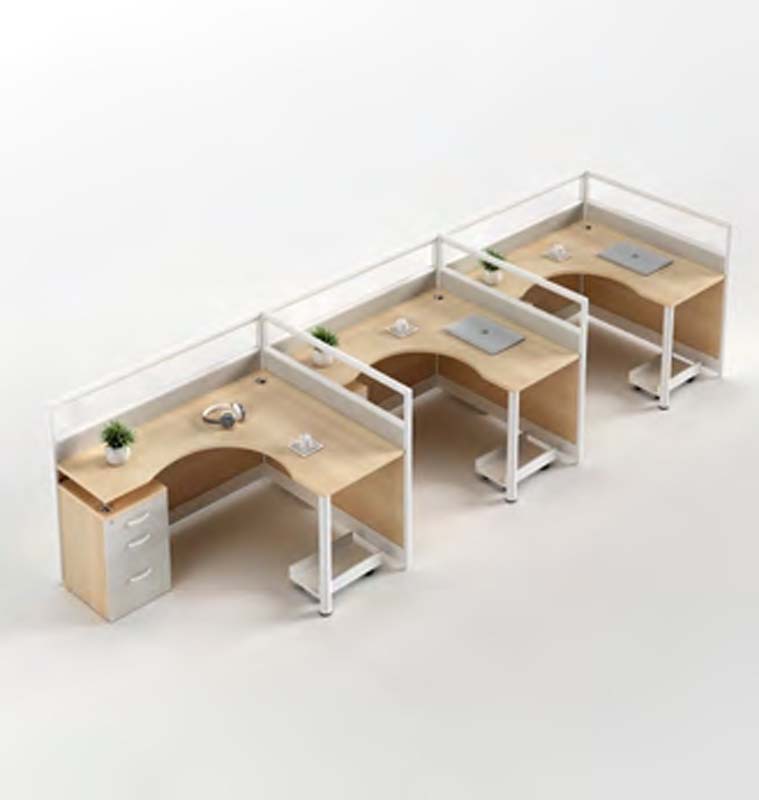

The KANAITE WS-L120-OAK is a modular L-shaped three-station inline office workstation cluster designed to balance individual focus and collaborative accessibility for modern work environments. Its streamlined inline L-layout features three dedicated work positions separated by low, 350mm high desk-mounted dividers that deliver partial visual privacy without blocking open team sightlines. Each work surface incorporates an oak light melamine finish with 2mm PVC edge banding, paired with curved ergonomic arc front cutouts that support comfortable seated arm and leg positioning during extended work sessions. The visual palette pairs warm oak-toned work surfaces with crisp white powder-coated steel support frames and partition structures, complemented by light neutral fabric-wrapped partition infill panels and light gray pedestal drawer fronts for a cohesive, contemporary aesthetic. Constructed for long-term commercial use, the workstation’s core work surfaces use 25mm melamine-faced particleboard topped to a finished thickness of 50mm, supported by 1.2mm thick powder-coated square steel tube frames with 80mm main leg sections and adjustable leveling glides to accommodate uneven flooring. Each position includes integrated cable management with 80mm diameter openings and dedicated cable trays, plus a 60mm rear corner grommet to route power and data cords neatly out of sight. Included mobile components feature three full-extension drawer pedestals that roll smoothly on 50mm nylon swivel casters (two with brake locks per unit) and under-desk wheeled CPU stands, each fitted with durable cold-rolled steel drawer slides and integrated white pull handles. The cluster supports three simultaneous users, with consistent per-seat knee clearance designed to pair with standard ergonomic office chairs. Its pre-drilled modular connection points allow teams to adjust cluster size as spatial needs evolve, while the 20 STC partition panels reduce cross-station sound transfer without isolating team members. This workstation is well suited for open-plan office areas seeking high space efficiency, team work zones requiring a balance of focus and interaction, startup offices looking to minimize additional furniture purchases, call center environments supporting long seated shifts, and small business admin offices. When planning procurement, teams should note the assembly time per set, packaged unit count, and total finished weight to coordinate appropriate delivery, installation, and floor load planning. The product is backed by a 5-year warranty.

3-Station Inline L-Shape Office Workstation Cluster with Partitions and Pedestals Specifications
