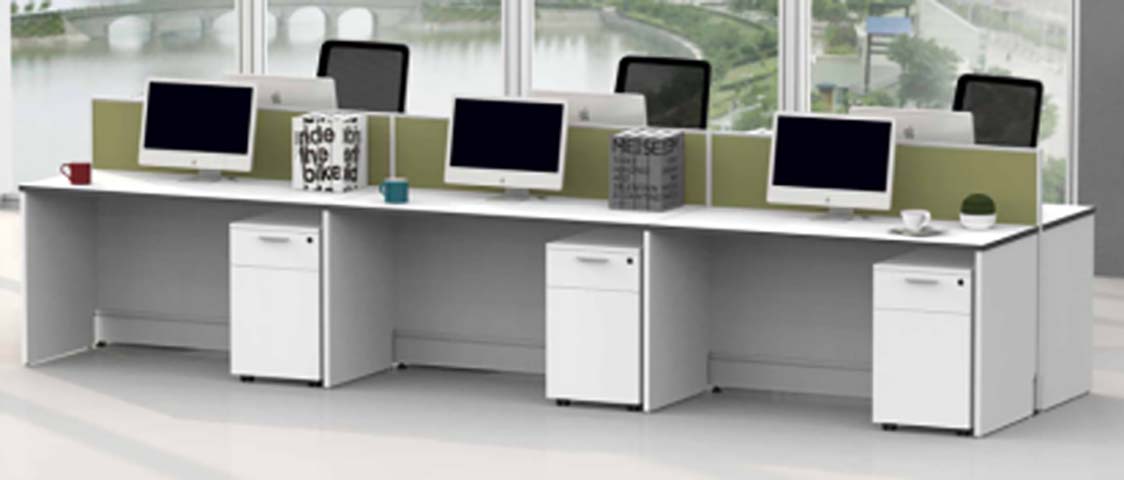

3-Person Straight Modular Open-Plan Office Workstation Cluster with Low Dividers and Mobile Pedestals (model WS-LIN-3P-WH-GRN-001) is listed under L-Shaped Office Desk, with overall dimensions of 5400 × 780 × 1225 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Modular,open-plan,structure,low,fabric,privacy,dividers,rolling,storage,pedestals,single-sided,linear,layout. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions | 5400 x 780 x 1225 mm | |
|---|---|---|
| Per-user work bay width | 1800 mm | |
| Work surface height from floor | 730 mm | |
| Work surface thickness | 25 mm | |
| Privacy divider height above desk | 495 mm | |
| Privacy divider thickness | 30 mm | |
| Knee clearance height under desk | 680 mm | |
| Knee clearance width per user | 1200 mm | |
| Mobile pedestal dimensions | 400 x 560 x 460 mm | |
| Edge band thickness | 2 mm | |
| Support leg cross-section | 60 x 30 mm | |
| Cable cutout dimensions | 410 x 50 mm | |
| Modesty panel height | 350 mm | |
| Caster diameter on pedestals | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 91 kg | |
|---|---|---|
| Total set weight (workstation only) | 248 kg | |
| User capacity | 3 people | |
| Drawer slide cycle rating | 50000 cycles | |
| Melamine surface scratch resistance | 2 N | |
| Leveling foot adjustment range | 15 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E1 grade particleboard with white melamine laminate, 2mm PVC edge trim | |
|---|---|---|
| Privacy dividers | 30mm MDF core with olive green woven fabric upholstery, pinnable surface | |
| Support frame | Powder-coated matte black rectangular steel tube, 1.2mm wall thickness, cross-braced structure | |
| Mobile pedestals | 18mm white melamine particleboard carcass, steel drawer runners, lockable top drawer | |
| Pedestal casters | 50mm nylon swivel casters, two with locking brakes | |
| Modesty panel | 18mm white melamine particleboard, fixed to rear frame between legs |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Rear scalloped cutouts per work bay route monitor and power cables under desk | |
|---|---|---|
| Pedestal mobility | Rolling casters allow pedestals to slide in/out of knee bays for flexible storage access | |
| Leveling adjustment | Threaded base feet adjust to compensate for uneven floor surfaces | |
| Drawer locking | Central key lock secures both pedestal drawers to secure personal and file contents |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff areas | Provides dedicated individual workspaces for administrative, call center or back-office teams | |
|---|---|---|
| Call center and operations floors | Low dividers balance privacy and team visibility for high-density seated work |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to workstation surfaces | |
|---|---|---|
| EN 1335-2:2009 | Office chair safety requirements, applicable if bundled task chairs are supplied | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to mobile pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for strength and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for mobile pedestal durability | |
| ANSI/BIFMA X5.6-2022 | Panel systems standard for privacy divider structural performance |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and cabinet components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame parts | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade requirement for panel components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and cabinet components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame parts; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade requirement for panel components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
