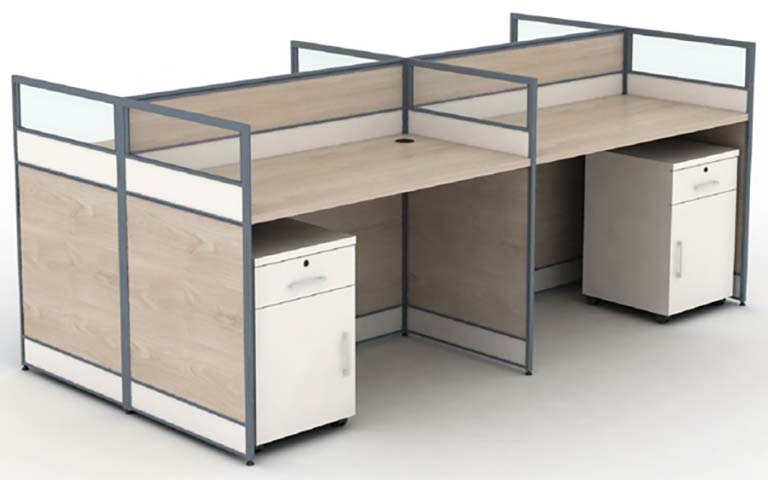

Product supplier2-Person Cross-Partition Office Cubicle Workstation with Mobile Pedestals, 25mm thick E1 grade melamine-faced chipboard with 2mm PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1200 mm | |
|---|---|---|
| Per-seat work surface size | 1400 x 600 mm | |
| Work surface height | 750 mm | |
| Knee clearance under desk | 650 mm | |
| Mobile pedestal dimensions | 420 x 460 x 650 mm | |
| Partition panel thickness | 60 mm | |
| Upper glass panel height | 300 mm | |
| Cable grommet diameter | 60 mm | |
| Adjustable foot height adjustment range | 15 mm | |
| Caster diameter on pedestals | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total work surface static load capacity | 300 kg | |
|---|---|---|
| Total unit gross weight | 120 kg | |
| Work surface abrasion resistance | 2000 cycles | |
| Recommended user capacity | 2 people | |
| Manufacturer warranty period | 5 years | |
| Formaldehyde emission grade | E1 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panel | 25mm thick E1 grade melamine-faced chipboard with 2mm PVC edge banding | |
|---|---|---|
| Lower partition panels | 18mm thick light oak finish melamine particle board | |
| Upper partition panels | 5mm thick frosted tempered glass | |
| Partition and support frame | 1.2mm thick powder-coated grey steel rectangular tubing | |
| Mobile pedestal cabinet body | 16mm thick off-white melamine particle board | |
| Cable management grommet | ABS plastic with brushed finish cover | |
| Pedestal casters | Black nylon swivel casters, 1 locking caster per unit | |
| Frame leveling feet | Nylon base with steel threaded adjustment stem | |
| Drawer and door hardware | Zinc alloy pull handles, steel drawer slides, keyed drawer lock | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy partition function | Cross-shaped dividers separate two workspaces, upper glass transmits light while blocking seated line of sight | |
|---|---|---|
| Cable management function | Central desk grommet routes power and data cables from work surface to under-desk raceway | |
| Mobile pedestal function | Rolling storage units fit fully under each work surface, with 1 lockable top drawer and 1 lower door compartment | |
| Leveling adjustment function | Threaded adjustable feet on frame base compensate for uneven office floors, total adjustment 15mm | |
| Modular expansion function | Frame connector design supports expansion to 4-person cross layout by adding matching workstation modules | |
| Pedestal mobility lock | One locking caster per mobile pedestal fixes storage unit in desired under-desk position | |
| Surface protection function | Melamine work surface resists water spills, scratches, and common office stains | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Provides separated individual workspaces for administrative, operational or customer service staff | |
|---|---|---|
| Small startup office spaces | Compact 2-seat footprint fits limited office floor space while providing dedicated work zones | |
| Call center and shared work environments | Privacy partitions reduce visual distraction while maintaining open office airflow and light transmission | |
| Temporary project team setups | Modular design allows quick reconfiguration or relocation as team sizes change | |
| Government and corporate back offices | Durable commercial-grade construction withstands daily high-traffic office use | |
| Matching configuration recommendation | Pairs with standard mid-back office chairs with 480 mm seat height for ergonomic use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables and desks safety and strength requirements, applicable for commercial use | |
|---|---|---|
| EN 527-2:2016 | Office work tables mechanical safety requirements and test methods | |
| EN 13986:2004 | Wood-based panels for construction use formaldehyde emission classification, applicable to MFC panels |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard for office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.6-2022 | Office panel systems performance standard for cubicle partition components | |
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for mobile under-desk pedestals |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and panel components | |
|---|---|---|
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to steel frame components | |
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of formaldehyde emission for wood-based furniture | |
| GB/T 10357.1-2013 | Furniture mechanical performance test for tables, applicable to desk strength and stability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and panel components; 2. GB/T 3325-2017: General technical requirements for metal furniture, applicable to steel frame components; 3. GB 18584-2001: Indoor decorating and refurbishing materials limit of formaldehyde emission for wood-based furniture; 4. GB/T 10357.1-2013: Furniture mechanical performance test for tables, applicable to desk strength and stability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
