PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Work surface static load capacity	120 kg
Maximum seated user weight per position	110 kg
Recommended occupancy	2 persons
Net weight per workstation unit	185 kg
Partition panel sound transmission class	20 STC
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface core	18mm thick E1 grade particleboard
Work surface finish	0.6mm thick melamine laminate, matte off-white
Partition panel fabric	100% polyester woven fabric, dark gray
Upper partition panel	3mm frosted translucent acrylic
Partition frame	1.2mm thick powder-coated white steel
Modesty panel core	12mm thick particleboard with fabric wrap
Storage pedestal body	16mm thick melamine-faced particleboard, off-white finish
Adjustable foot glides	15mm diameter nylon glides with steel screw stems
Hardware components	Zinc-plated steel cam locks, screws, and connecting brackets
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management grommet	Recessed 80mm grommet at desk corner for routing power and data cables
Pedestal storage configuration	1 lockable upper drawer + 1 lower hinged door cabinet per position
Partition privacy function	1200mm tall partial-height panels block seated direct line of sight
Floor leveling system	Four adjustable glides per workstation with 20mm vertical adjustment
Modular connectivity	Pre-drilled frame connection points for linking additional cubicle units
Tackable partition surface	Fabric-covered panels accept push pins for posting notes and documents
Work surface shape	Curved inner L-corner with eased edge profile
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Suitable for general administrative staff workstations in corporate offices
Small business office spaces	Fits startup and SME offices requiring 2 dedicated work positions
Call center environments	Provides basic speech and visual privacy for customer service agents
Government and institutional offices	Durable construction meets long-term daily use requirements for public sector workspaces
Temporary project work zones	Modular connection allows fast reconfiguration for short-term project team seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office furniture safety standard	EN 527:2011
Formaldehyde emission standard	EN 13986:2004 E1
Surface durability requirement	EN 12720:2009

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.5 Desk and Table Products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Work surface dimension standard	GB/T 3326
Formaldehyde emission limit	GB 18580E1 grade
Structural strength requirement	GB/T 10357.1

Standardized tender description text

This product must meet the following technical requirements:
1. Work surface dimension standard: GB/T 3326;
2. Formaldehyde emission limit: GB 18580E1 grade;
3. Structural strength requirement: GB/T 10357.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CUB-2P-L1400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CUB-2P-L1400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CUB-2P-L1400Open Export Tool

Quick Actions

Post an RFQ

Product Description

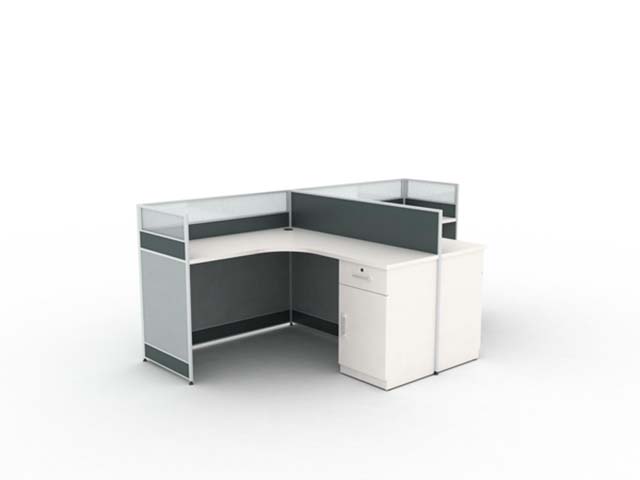

The 2-Person L-Shaped Modular Office Cubicle Workstation with Integrated Pedestal Storage, model WS-CUB-2P-L1400, is an unbranded modular office furniture solution designed to deliver functional, space-efficient shared work positioning for two users. Its core layout follows an L-shaped configuration with a curved inner work corner finished with eased edge profiles, framed by 1200mm tall partial-height partitions that block direct line of sight between seated users to support basic visual privacy. The upper segment of each partition uses frosted translucent acrylic to preserve ambient light flow, while the lower fabric-wrapped panels offer a tackable surface that accepts push pins for posting notes, reference materials, and team updates. The matte off-white work surfaces are paired with white powder-coated steel partition frames and dark gray woven polyester partition panel fabric, creating a neutral, professional aesthetic that complements most commercial interior palettes. Construction uses durable, application-appropriate materials tailored to regular daily use. Work surfaces consist of E1 grade particleboard cores with a matte melamine laminate facing, supported by zinc-plated steel cam locks, screws, and connecting brackets. Partition frames are formed from powder-coated steel, with fabric-covered panel sections and a fabric-wrapped particleboard modesty panel. Each integrated storage pedestal is built from melamine-faced particleboard matched to the work surface finish, while nylon adjustable foot glides with steel screw stems provide stable, level placement on uneven flooring. Primary structural components are sized to match load-bearing requirements, with engineered clearance for moving parts to support smooth long-term operation. Functional features support productive, organized work. Each user position includes an integrated pedestal with one lockable upper drawer and one lower hinged door cabinet for personal and work item storage. A recessed cable management grommet at the desk corner routes power and data cords to reduce surface clutter, while pre-drilled frame connection points enable quick linking of additional cubicle units for expanded team layouts. The adjustable foot glides allow vertical fine-tuning to level the unit across varied floor surfaces, and the partition panels deliver basic sound dampening to reduce cross-station speech distraction. This workstation is well suited for a range of commercial spaces, including open plan corporate offices for administrative staff, small business and startup offices needing two dedicated work positions, call center floors requiring basic visual and speech privacy for agents, government and institutional offices built for long-term daily use, and temporary project work zones that demand fast, flexible seating reconfiguration. When planning procurement, note that each unit ships across two cartons, with on-site assembly required. The modular connection design allows teams to scale installed capacity over time, and the neutral finish palette coordinates with most standard office seating and storage pieces without additional custom finishing work.

2-Person L-Shaped Modular Office Cubicle Workstation with Integrated Pedestal Storage Specifications
