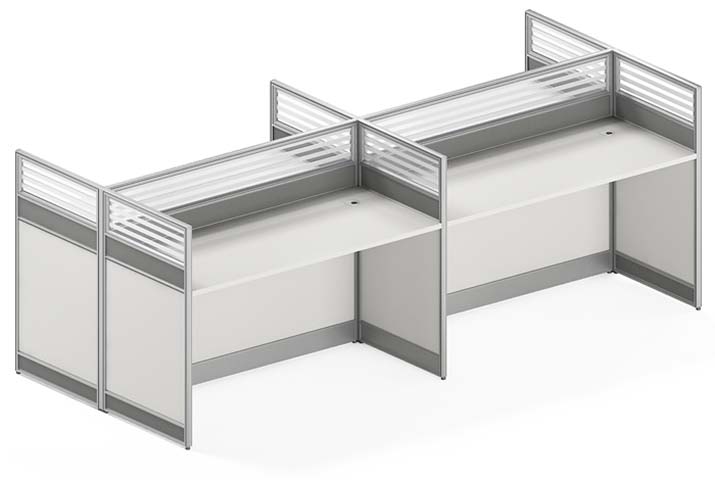

Cross-Shaped 4-Person Modular Office Cubicle Workstation (model CUB-4P-CROSS-2830) is listed under L-Shaped Office Desk, with overall dimensions of 2830 × 2830 × 1200 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: modular,open-plan,furniture,partial-height,seated,privacy,dividers,integrated,cable,management. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Primary Component Thickness | 40 mm according to load-bearing role | |
|---|---|---|
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static load capacity per work surface | 91 kg | |
|---|---|---|
| Surface scratch resistance | Class 2 | |
| Hardware salt spray corrosion resistance | 48 hours | |
| Seating capacity | 4 users | |
| Total product gross weight (unit only) | 200 kg | |
| Manufacturer warranty period | 10 years | |
| Modesty panel height under desktop | 400 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface substrate | E1-grade melamine faced particleboard | |
|---|---|---|
| Desktop edge trim | 2.0mm thick PVC edge banding, hot-melt applied | |
| Partition frame | 6065-T5 aluminum alloy, powder-coated silver finish | |
| Lower partition panel | Fabric-upholstered hardboard / MFC panel | |
| Upper partition louver section | Translucent polycarbonate slats | |
| Support structure and leveling feet | Powder-coated steel legs with nylon adjustable glides |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Per-position 60mm desk grommets + under-desk aluminum wire troughs | |
|---|---|---|
| Modular assembly design | Pre-installed knock-down connectors for on-site setup | |
| Floor leveling function | Adjustable nylon feet at each frame base | |
| Privacy partition design | 1100mm high panels with opaque lower and translucent upper sections |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total gross shipping weight | 220 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office work areas | Provides divided work zones for 4 staff with shared central footprint | |
|---|---|---|
| Call center and administrative offices | Seated privacy partitions reduce visual distraction between agents |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to work surfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic dimensions for seated work, applicable to clearance values | |
| EN 1022:2019 | Domestic and contract furniture seating stability, referenced for desk foot stability | |
| EN 12727:2016 | Office storage furniture strength requirements, applicable if adding under-desk pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard, applicable to load ratings | |
|---|---|---|
| ANSI/BIFMA X6.2-2021 | Office panel systems performance standard, applicable to partition construction |
Standards applicable to China-market projects
| GB/T 3324-2024 | General technical requirements for wooden office furniture, applicable to desktops and panels | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for E1-grade substrates | |
| GB/T 4897.3-2015 | Particleboard specification for furniture use, applicable to desktop core material |
This product must meet the following technical requirements: 1. GB/T 3324-2024: General technical requirements for wooden office furniture, applicable to desktops and panels; 2. GB 18580-2017: Formaldehyde emission limit for wood-based panels, required for E1-grade substrates; 3. GB/T 4897.3-2015: Particleboard specification for furniture use, applicable to desktop core material; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
