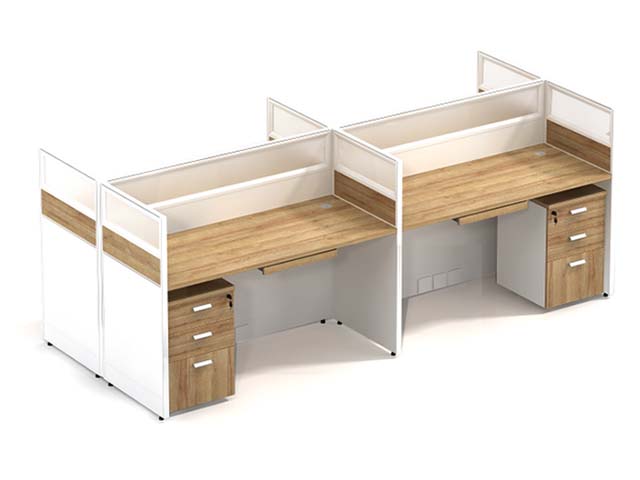

2-Person Cross-Configuration Office Cubicle Workstation with Privacy Partitions and Lockable Pedestals (model WS-CR2-1206-OAKW) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 127 kg. Certifications: Modular,cubicle,structure,oak-white,finish,seated-height,privacy,dividers,integrated,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall unit dimensions | 2400 x 1200 x 1100 mm | |
|---|---|---|
| Individual work surface size | 1200 x 600 x 25 mm | |
| Standard working surface height | 750 mm | |
| Seated knee clearance height | 660 mm | |
| Seated knee clearance depth | 584 mm | |
| Privacy partition panel height | 1100 mm | |
| Privacy partition panel thickness | 50 mm | |
| 3-drawer mobile pedestal dimensions | 420 x 490 x 660 mm | |
| Pull-out keyboard tray height | 660 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Modesty panel height from floor | 600 mm | |
| Caster wheel diameter on pedestals | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product shipping weight | 185 kg | |
|---|---|---|
| Static load capacity per work surface | 127 kg | |
| Frame structural durability cycle rating | 100000 cycles | |
| Recommended maximum user weight per station | 136 kg | |
| Warranty period for frame and panels | 10 years | |
| Available color finish options | 4 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop construction | 25mm thick E1 grade particleboard with oak-grain melamine laminate, 3mm PVC impact edge banding | |
|---|---|---|
| Support frame structure | 1.2mm thick powder-coated steel rectangular tube (60x30mm section) | |
| Privacy panel construction | 50mm thick steel-framed panels with fabric upper surface and laminated wood lower accent | |
| Drawer hardware | Three-section ball-bearing full-extension silent drawer slides with central keyed lock | |
| Pedestal cabinet construction | 18mm thick melamine-faced engineered wood body with white side panels and oak drawer fronts | |
| Floor contact components | Nylon leveling glides on partition bases, 50mm nylon swivel casters on mobile pedestals |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Privacy separation | Cross-configured 1100mm high panels provide visual separation between two adjacent workstations | |
|---|---|---|
| Storage configuration | One lockable 3-drawer (two stationery, one file) mobile pedestal per station, fits fully under work surface | |
| Cable management | 60mm diameter cable grommet on each work surface with under-desk cable routing space | |
| Keyboard support | Pull-out sliding keyboard tray mounted under front edge of each work surface |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office environments | Provides dedicated semi-private workspaces for two staff with integrated storage, suitable for general administrative roles | |
|---|---|---|
| Small business and startup offices | Compact 2-person layout maximizes floor space efficiency without requiring full custom cubicle installation |
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements, applicable to desk structural performance | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to pedestal drawer units | |
| EN 1335-2:2009 | Office furniture seating strength reference for adjacent chair clearance requirements |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for static load, durability and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for drawer slide performance and lock durability | |
| ANSI/BIFMA G1-2013 | Ergonomic guidelines for seated office workstation dimensions |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks, applicable to work surface strength and stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ required |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and cabinet components; 2. GB/T 3327-2017: Performance requirements for office desks, applicable to work surface strength and stability; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, E1 grade ≤0.124mg/m³ required; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
