Automatic mm / inch conversion · Core engineering specifications
| Overall cluster dimensions | 2400 x 1400 x 1100 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Single L-station work surface footprint | 1600 x 1600 mm | |
| Worktop thickness | 25 mm | |
| Privacy partition overall height | 1200 mm | |
| Seated knee clearance height under desk | 700 mm | |
| Knee clearance width per station | 600 mm | |
| Mobile pedestal dimensions | 400 x 500 x 600 mm | |
| Partition aluminum frame wall thickness | 1.2 mm | |
| PVC edge banding thickness | 2 mm | |
| Cable grommet diameter | 80 mm | |
| Caster diameter | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Total product net weight (per 3-station cluster) | 260 kg | |
|---|---|---|
| Worktop static distributed load capacity | 100 kg | |
| Work surface abrasion resistance | 2000 cycles | |
| Partition panel flame retardant rating | B1 | |
| Recommended user capacity | 3 seated office workers | |
| Commercial warranty period | 10 years | |
| Caster rolling durability cycles | 40000 cycles | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Worktop substrate | E1-grade MFC engineered wood board | |
|---|---|---|
| Worktop surface finish | Matte melamine laminate | |
| Worktop edge treatment | 2mm thick PVC edge banding | |
| Privacy partition frame | 1.2mm thick extruded aluminum alloy | |
| Partition infill panel | Taupe fabric-wrapped fiberboard with upper slatted trim | |
| Mobile pedestal cabinet body | Melamine-faced MDF matching worktop finish | |
| Drawer lock mechanism | Steel cam lock with 2 keys per pedestal | |
| Support frame and connectors | Powder-coated cold-rolled steel | |
| Caster wheels | Black nylon swivel casters, 2 lockable per pedestal | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features

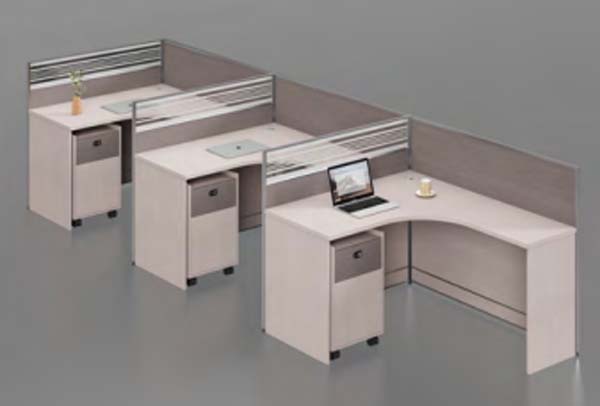

| Workstation layout | 3 linearly connected curved L-shaped positions | |
|---|---|---|
| Privacy partition function | 1200mm high partial-height screens | |
| Mobile pedestal function | 3-drawer lockable rolling cabinet | |
| Cable management | Integrated desktop cable grommets per station | |
| Modular assembly design | Knock-down steel and aluminum connection system | |
| Caster locking function | 2 lockable brakes per mobile pedestal | |
| Storage configuration per station | 1 lockable pencil drawer + 2 file drawers per pedestal | |
| Modesty panel function | Solid lower panel under each work surface | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Open-plan corporate office areas | Provides standardized individual workspaces for 3 administrative staff | |
|---|---|---|
| Small business staff work zones | Compact cluster layout fits limited floor space while offering dedicated storage | |
| Call center and back-office environments | Low partitions balance visual privacy and team communication | |
| Startup and co-working spaces | Modular design supports future layout reconfiguration as teams grow | |
| Recommended complementary products | Ergonomic mid-back office chairs, under-desk cable trays, monitor arms | |
| Indoor air quality requirement | Suitable for ventilated office environments with E1-grade low-emission panels |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and dimensional requirements for seated work positions | |
|---|---|---|
| EN 1335-1:2020 | Office furniture ergonomic clearance requirements for seated workstations | |
| EN 1022:2018 | Domestic and commercial seating stability, applicable for associated office chair use | |
| EN 13722:2004 | Office furniture storage cabinets performance and structural requirements for pedestals |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard for commercial office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage cabinets performance standard for mobile office pedestals | |
| ANSI/BIFMA X7.1-2020 | Formaldehyde emission standard for low-emission office furniture components |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applies to worktop and cabinet structure | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, requires E1 grade for indoor use | |
| GB/T 10357.1-2013 | Desk strength and durability test methods for commercial work surfaces | |
| GB 20286-2006 | Flame retardant requirements for public place furniture, applies to partition panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to worktop and cabinet structure; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, requires E1 grade for indoor use; 3. GB/T 10357.1-2013: Desk strength and durability test methods for commercial work surfaces; 4. GB 20286-2006: Flame retardant requirements for public place furniture, applies to partition panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
