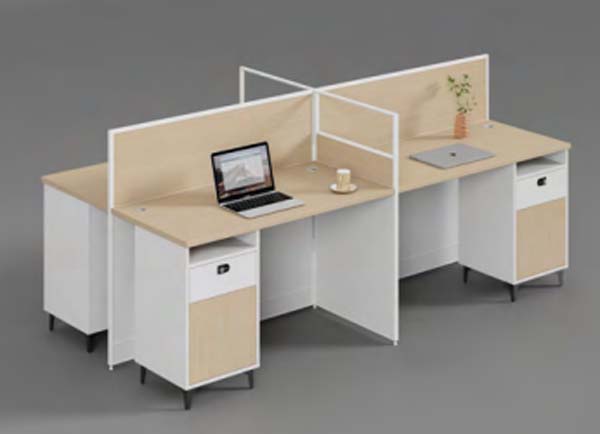

4-Person Cross-Shaped Fabric Partition Office Cubicle Workstation with Integrated Storage (model CWS-C4-FS-2830) is listed under L-Shaped Office Desk. Dimensions: 2830 × 2830 × 1200 mm. Materials: E1 grade melamine-laminated particle board, 25mm thick, 2.0mm PVC edge banding. Load capacity: 300 kg. Product Features: Modern,style,modular,cross,configuration,integrated,under-desk,storage,fabric,privacy,partitions. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Brand | Fanshidun | Model | CWS-C4-FS-2830 |
| Overall dimensions (W × D × H) | 2830 × 2830 × 1200 mm | Overall unit dimensions | 2830 x 2830 x 1200 mm |
| Desktop work surface height | 760 mm | Per-individual workstation desktop size | 1200 x 600 mm |
| Privacy partition screen height | 1200 mm | Privacy partition screen thickness | 30 mm |
| Desktop panel thickness | 25 mm | Knee clearance height under desktop | 650 mm |
| Knee clearance depth per position | 450 mm | Storage pedestal dimensions per seat | 400 x 500 x 600 mm |
| Upper storage drawer internal height | 120 mm | Lower storage cabinet internal height | 400 mm |
| Cable grommet diameter per desktop | 60 mm | Black splayed support leg height | 120 mm |
| Adjustable leveling foot adjustment range | 15 mm | Primary Component Thickness | 40 mm according to load-bearing role |
| Hardware / Moving-part Clearance | 5 mm operating clearance | Total unit static load capacity | 300 kg |
| Total product net weight | 220 kg | Recommended maximum occupancy | 4 people |
| Surface scratch resistance rating | 2 N | Hardware salt spray corrosion resistance | 48 hours |
| Manufacturer warranty period | 5 years | Reference Static Load | 150 kg depending on category |
| Moving-part Durability Reference | Acceptance target 50000 cycles | Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
| Work surface panels | E1 grade melamine-laminated particle board, 25mm thick, 2.0mm PVC edge banding | Storage pedestal body panels | E1 grade melamine-laminated MDF, 18mm thick, 0.6mm PVC edge banding |
| Storage cabinet door panels | E1 grade melamine-laminated particle board, 18mm thick, matching light beige finish | Drawer front panels | E1 grade melamine-laminated MDF, 18mm thick, white finish with integrated black recessed handle |
| Privacy partition frames | 1.2mm thick white powder-coated steel tube frame | Privacy partition panels | Fabric-upholstered high-density fiberboard core, beige fabric finish |
| Support legs | 1.5mm thick black powder-coated steel splayed legs with nylon adjustable feet | Hardware components | Zinc-plated steel screws, connectors, drawer slides and hinges |
| Cable grommets | ABS plastic circular wire management grommets, matte grey finish | Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints |
| Reference Finish / Color Count | Recommended 6finish options | Workspace division | Cross-shaped central partitions create four independent private work zones |
| Per-seat storage | Each position includes one lockable upper stationery drawer and one lower hinged-door cabinet | Cable management | One desktop grommet per position routes power and data cables to under-desk space |
| Leveling adjustment | Threaded adjustable feet on all legs compensate for uneven floor surfaces | Modular assembly | Knock-down panel and frame construction connects via cam lock connectors |
| Privacy performance | 1200mm tall fabric partitions block seated eye-level visual distraction | Desk modesty coverage | Full-height side modesty panels between positions block view of seated users' legs |
| Surface maintenance | Stain-resistant melamine laminate surface wipes clean with standard office cleaners | Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
| Reference Package Count | 1 set / 2 cartons | Reference Assembly Time | 40 minutes per set |
| Reference Packaging Volume | 0.8 m³/set | Reference Packaged Gross Weight | 120 kg/set |
| Open plan office staff areas | Suitable for 4-person team clusters in general administrative, customer service or operations departments | Small business startup offices | Cost-effective modular solution for new offices requiring quick setup of dedicated workstations |
| Call center workspace | Partition screens reduce cross-talk distraction between adjacent call center agents | Corporate departmental team zones | Configurable as individual team clusters arranged in rows or groups across open floor plans |
| Temporary office fit-outs | Knock-down construction allows fast disassembly and relocation during office moves or reconfigurations | Government and institutional office areas | Durable commercial-grade construction meets standard public sector office furniture requirements |
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2830 × 2830 × 1200 mm | |
|---|---|---|
| Overall unit dimensions | 2830 x 2830 x 1200 mm | |
| Desktop work surface height | 760 mm | |
| Per-individual workstation desktop size | 1200 x 600 mm | |
| Privacy partition screen height | 1200 mm | |
| Privacy partition screen thickness | 30 mm | |
| Desktop panel thickness | 25 mm | |
| Knee clearance height under desktop | 650 mm | |
| Knee clearance depth per position | 450 mm | |
| Storage pedestal dimensions per seat | 400 x 500 x 600 mm | |
| Upper storage drawer internal height | 120 mm | |
| Lower storage cabinet internal height | 400 mm | |
| Cable grommet diameter per desktop | 60 mm | |
| Black splayed support leg height | 120 mm | |
| Adjustable leveling foot adjustment range | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit static load capacity | 300 kg | |
|---|---|---|
| Total product net weight | 220 kg | |
| Recommended maximum occupancy | 4 people | |
| Surface scratch resistance rating | 2 N | |
| Hardware salt spray corrosion resistance | 48 hours | |
| Manufacturer warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panels | E1 grade melamine-laminated particle board, 25mm thick, 2.0mm PVC edge banding | |
|---|---|---|
| Storage pedestal body panels | E1 grade melamine-laminated MDF, 18mm thick, 0.6mm PVC edge banding | |
| Storage cabinet door panels | E1 grade melamine-laminated particle board, 18mm thick, matching light beige finish | |
| Drawer front panels | E1 grade melamine-laminated MDF, 18mm thick, white finish with integrated black recessed handle | |
| Privacy partition frames | 1.2mm thick white powder-coated steel tube frame | |
| Privacy partition panels | Fabric-upholstered high-density fiberboard core, beige fabric finish | |
| Support legs | 1.5mm thick black powder-coated steel splayed legs with nylon adjustable feet | |
| Hardware components | Zinc-plated steel screws, connectors, drawer slides and hinges | |
| Cable grommets | ABS plastic circular wire management grommets, matte grey finish | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workspace division | Cross-shaped central partitions create four independent private work zones | |
|---|---|---|
| Per-seat storage | Each position includes one lockable upper stationery drawer and one lower hinged-door cabinet | |
| Cable management | One desktop grommet per position routes power and data cables to under-desk space | |
| Leveling adjustment | Threaded adjustable feet on all legs compensate for uneven floor surfaces | |
| Modular assembly | Knock-down panel and frame construction connects via cam lock connectors | |
| Privacy performance | 1200mm tall fabric partitions block seated eye-level visual distraction | |
| Desk modesty coverage | Full-height side modesty panels between positions block view of seated users' legs | |
| Surface maintenance | Stain-resistant melamine laminate surface wipes clean with standard office cleaners | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff areas | Suitable for 4-person team clusters in general administrative, customer service or operations departments | |
|---|---|---|
| Small business startup offices | Cost-effective modular solution for new offices requiring quick setup of dedicated workstations | |
| Call center workspace | Partition screens reduce cross-talk distraction between adjacent call center agents | |
| Corporate departmental team zones | Configurable as individual team clusters arranged in rows or groups across open floor plans | |
| Temporary office fit-outs | Knock-down construction allows fast disassembly and relocation during office moves or reconfigurations | |
| Government and institutional office areas | Durable commercial-grade construction meets standard public sector office furniture requirements |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Applicable standard for office work desk dimensions, strength and stability requirements for commercial use | |
|---|---|---|
| EN 1335-1:2020 | Applicable reference for office chair clearance dimensions to ensure fit under desk knee space | |
| EN 12521:2015 | Applicable standard for furniture strength, durability and safety requirements for contract office use |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.5 Desk and Table Products |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for general technical requirements of wooden office furniture, for structural performance verification | |
|---|---|---|
| GB 18580-2017 | Applicable standard for formaldehyde emission limits on engineered wood panels, E1 grade requirement for indoor use | |
| GB/T 15102-2017 | Applicable standard for melamine-faced board surface durability, scratch and heat resistance requirements | |
| GB/T 4897.3-2015 | Applicable standard for particle board used in furniture, structural load-bearing performance requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for general technical requirements of wooden office furniture, for structural performance verification; 2. GB 18580-2017: Applicable standard for formaldehyde emission limits on engineered wood panels, E1 grade requirement for indoor use; 3. GB/T 15102-2017: Applicable standard for melamine-faced board surface durability, scratch and heat resistance requirements; 4. GB/T 4897.3-2015: Applicable standard for particle board used in furniture, structural load-bearing performance requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
