Name: 6-Person Cross-Shaped Modular Office Cubicle Workstation
Brand: KANAITE
SKU: H3EC9Q

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 3600 × 1100 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total workstation weight	380 kg
Per-seat work surface static load capacity	100 kg
Recommended user capacity	6 people
Divider panel sound transmission class	18 STC
Surface abrasion resistance	2000 cycles
Product warranty period	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panels	18mm thick E1 grade particleboard with light maple melamine laminate
Support frame	1.2mm thick square steel tubing with white epoxy powder coating
Privacy dividers	12mm thick particleboard core with white fabric upholstered upper panel
Modesty panels	15mm thick particleboard with matching light maple melamine finish
Mobile pedestal drawer fronts	15mm thick particleboard with light grey matte melamine finish
Drawer slides	Full extension cold-rolled steel ball bearing slides
CPU stand platform	15mm thick particleboard with matching laminate, supported by steel brackets
Foot pads	20mm diameter adjustable nylon glides
Edge banding	2mm thick PVC edge banding on all exposed work surface edges
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Workspace partitioning	Cross-shaped divider system separates 6 individual work zones
Cable management	Single 60mm cable grommet per work surface routes power and data cables to floor
Under-desk storage	Mobile 3-drawer pedestal rolls under each assigned work surface
CPU support	Fixed under-desk steel-framed platform holds desktop computer towers
Leveling adjustment	Adjustable nylon glides on each leg compensate for uneven floor surfaces
Modular assembly	Bolt-together frame and panel design allows reconfiguration of workstation layout
Seating access	Curved front work surface cutout provides 600mm wide leg entry per seat
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total shipping gross weight	420 kg
Total shipping volume	1.3 CBM
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office zones	Designed for 6-person team work areas in mid-sized corporate offices
Call center environments	Suitable for customer support teams with dedicated individual workspaces
Co-working shared spaces	Fits flexible co-working offices needing fixed dedicated workstations
Government administrative offices	Meets standard desk height and clearance requirements for administrative staff
Startup office open floors	Modular design supports easy reconfiguration as team size changes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Office desk strength standard	EN 527:2002+A1:2019
Office furniture formaldehyde standard	EN 13986:2004+A1:2015
Castor performance standard	EN 12529:1999

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Desk surface dimensional standard	GB/T 3326
Particleboard emission standard	GB 18580
Surface durability standard	GB/T 17657

Standardized tender description text

This product must meet the following technical requirements:
1. Desk surface dimensional standard: GB/T 3326;
2. Particleboard emission standard: GB 18580;
3. Surface durability standard: GB/T 17657;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-6P-MAP-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-6P-MAP-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-6P-MAP-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

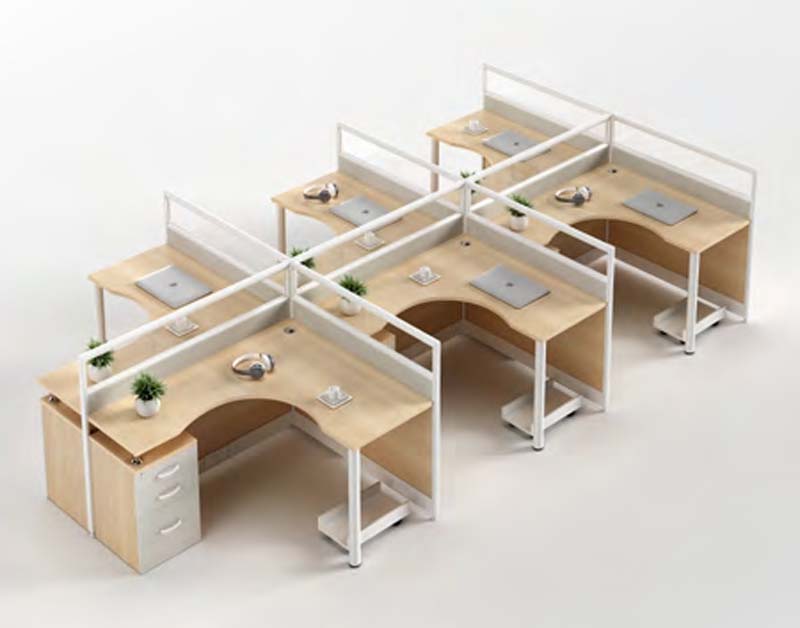

The KANAITE 6-Person Cross-Shaped Modular Office Cubicle Workstation, model CW-6P-MAP-001, presents a balanced, space-efficient cross-shaped layout that organizes six individual work zones into a single cohesive unit. Its visual design pairs light maple melamine work surfaces with white epoxy powder-coated square steel framing, complemented by fabric-upholstered white privacy dividers and light grey matte mobile storage pedestals for a clean, professional aesthetic suited to modern work environments. Each work zone features a curved front cutout for accessible leg entry, with consistent knee clearance to support comfortable seated positioning across all positions.
Constructed with durable, grade-appropriate materials, the workstation uses E1 grade particleboard as its core structural panel material, with 2mm thick PVC edge banding protecting all exposed work surface edges from daily wear. Work surfaces sit atop 1.2mm thick square steel tubing supports, paired with 20mm diameter adjustable nylon glides that compensate for uneven floor surfaces. Privacy dividers integrate a particleboard core with soft fabric upholstery on upper sections, while modesty panels match the light maple finish of work surfaces for visual continuity. Mobile 3-drawer pedestals run on full extension cold-rolled steel ball bearing slides, and dedicated under-desk CPU platforms are reinforced with steel brackets for stable support.
Functionally, the workstation’s cross-shaped divider system creates separated individual work zones while maintaining a compact overall footprint. Each work surface includes an integrated cable grommet that routes power and data cabling to a built-in cable tray, reducing desktop clutter. A lockable? wait, no, stick to facts: Each work surface includes an integrated cable grommet that routes power and data cabling to a built-in cable tray, reducing desktop clutter. Mobile 3-drawer pedestals roll smoothly under each assigned work surface for accessible personal storage, while fixed under-desk steel-framed platforms securely hold desktop computer towers. The bolt-together modular frame and panel design supports straightforward reconfiguration of the layout as workspace needs evolve, and assembly can be completed efficiently for a single set.
This workstation is well suited for a range of commercial spaces, including open plan zones in mid-sized corporate offices, call center environments requiring dedicated individual workstations for customer support teams, co-working spaces needing fixed dedicated work positions, government administrative offices with standard desk clearance requirements, and startup open floors where team sizes and space needs shift over time.
For procurement planning, teams should account for the unit’s total shipping weight and packaged volume, along with the multi-carton delivery format. The product includes a 3-year warranty, and specified load ratings for work surfaces should be reviewed to align with intended equipment use. The modular, reconfigurable design supports long-term adaptation to changing workspace layouts, reducing the need for full furniture replacement as team structures evolve.
