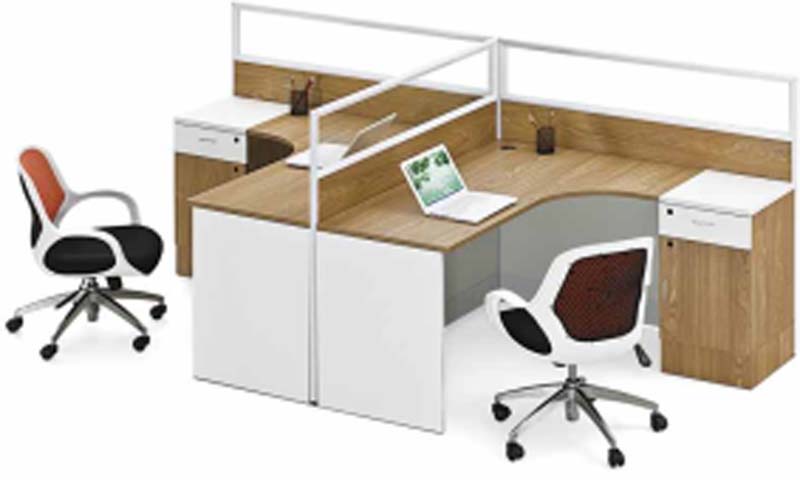

2-Person Curved Corner Face-to-Face Office Partition Workstation Desk with Integrated Side Pedestals (model CW-2P-CRV-750) is listed under L-Shaped Office Desk, with overall dimensions of 2800 × 2400 × 1200 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Open-plan,office,cubicle,2-staff,layout,integrated,storage,low,privacy,dividers,curved,work,corner. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 2800 x 2400 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Individual curved work surface size | 1200 x 1400 mm | |
| Work surface thickness | 25 mm | |
| PVC edge band thickness | 3 mm | |
| Privacy divider height above desktop | 450 mm | |
| Under-desk knee clearance height | 680 mm | |
| Knee clearance width per seat | 700 mm | |
| Integrated side pedestal size | 400 x 600 x 650 mm | |
| Front modesty panel height | 650 mm | |
| Cable grommet diameter | 76 mm | |
| Steel support leg section | 40 x 40 mm | |
| Steel frame wall thickness | 1.5 mm | |
| Adjustable leveling foot height range | 15 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat work surface static load capacity | 91 kg | |
|---|---|---|
| Drawer slide load rating per drawer | 25 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Pedestal door hinge cycle rating | 80000 cycles | |
| Melamine surface abrasion resistance | 2000 cycles | |
| Total workstation unit weight | 215 kg | |
| Recommended user weight capacity per seat | 113 kg | |
| Commercial product warranty | 5 years | |
| Available finish options | 2 | |
| Top Static Load Reference | 150 kg uniformly distributed |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface core and finish | E1-grade engineered wood core with thermally fused melamine laminate | |
|---|---|---|
| Edge protection | 3mm thick PVC edge banding applied to all exposed work surface edges | |
| Privacy divider construction | Transparent acrylic upper panel with matching melamine lower panel, white powder-coated steel frame | |
| Support frame and legs | Square steel tube with matte white powder-coated finish, anti-corrosion pretreatment | |
| Storage pedestals and panels | Matching melamine laminated particleboard with white drawer fronts and wood grain cabinet sides | |
| Hardware components | Cold-rolled steel drawer slides, keyed cam locks, zinc-plated adjustable leveling feet |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Dual 76mm desk grommets per work surface with integrated under-desk wire channels | |
|---|---|---|
| Pedestal storage security | Keyed lock per side pedestal securing both drawer and cabinet compartment | |
| Floor leveling adjustment | Threaded adjustable feet on all base contact points with 15mm vertical travel | |
| Privacy separation | Low dual-material dividers create individual visual separation between opposite workstations |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work areas | Suitable for 2 employees in administrative, data entry or customer support roles | |
|---|---|---|
| Small business startup offices | Space-efficient face-to-face layout fits compact office footprints without full cubicle walls |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural performance | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and mechanical safety requirements, applicable to clearance checks | |
| EN 13722:2004 | Office furniture storage units performance requirements, applicable to pedestal cabinets |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard, applicable to load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to pedestal drawer and door durability | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, applicable to low-emission material selection |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desktops and storage cabinets | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks and workstations, applicable to structural load testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to engineered wood components | |
| GB/T 4897.3-2003 | Particleboard specifications for furniture use, applicable to desk and cabinet cores |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktops and storage cabinets; 2. GB/T 3327-2016: Performance requirements for office desks and workstations, applicable to structural load testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to engineered wood components; 4. GB/T 4897.3-2003: Particleboard specifications for furniture use, applicable to desk and cabinet cores; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
