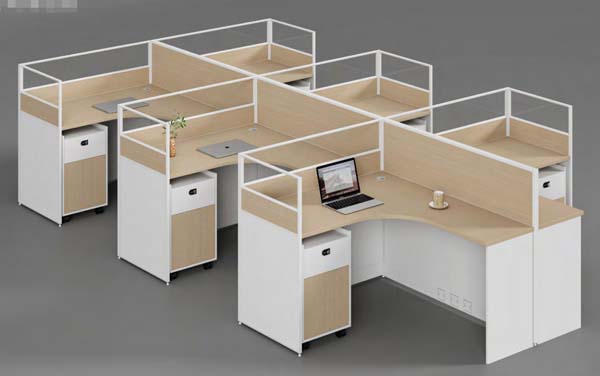

Product supplier6-Person Cross Curved Office Cubicle Workstation Cluster with Mobile Pedestals, 25mm melamine-faced particle board (MFC)
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 3600 × 1200 mm | |
|---|---|---|
| overall cluster footprint | 3600 x 3600 x 1200 mm | |
| individual worksurface height | 750 mm | |
| per-seat worksurface dimension | 1200 x 1200 mm | |
| lower solid partition height | 700 mm | |
| upper framed screen height | 500 mm | |
| partition panel thickness | 100 mm | |
| under-desk knee clearance height | 650 mm | |
| mobile pedestal dimension | 400 x 500 x 600 mm | |
| worksurface thickness | 25 mm | |
| modesty panel height | 450 mm | |
| curved corner worksurface radius | 300 mm | |
| cable grommet diameter | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total cluster net weight | 420 kg | |
|---|---|---|
| single worksurface static load capacity | 300 kg | |
| mobile pedestal drawer static load | 30 kg per drawer | |
| seating capacity | 6 users | |
| surface abrasion resistance | 2000 cycles | |
| structural warranty period | 5 years | |
| available finish color options | 30 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| worksurface substrate | 25mm melamine-faced particle board (MFC) | |
|---|---|---|
| worksurface edge finish | 2mm PVC edge banding | |
| partition frame | Powder-coated white steel tubing | |
| lower solid partition panel | 18mm melamine-faced MDF with light oak finish | |
| upper divider screen | Frosted semi-transparent acrylic panel | |
| modesty panel | 18mm white melamine-faced particle board | |
| mobile pedestal body | 16mm melamine-faced MDF in light oak and white finish | |
| pedestal hardware | Black recessed lock pulls, 4 swivel casters (2 lockable) | |
| leveling feet | Nylon-base adjustable glides on desk and partition bases | |
| cable management grommets | ABS plastic round grommets at each work position | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| privacy partition function | Dual-height dividers block direct line of sight between adjacent seats while maintaining open sightlines above | |
|---|---|---|
| mobile storage function | 3-drawer lockable pedestal rolls fully under worksurface to provide personal filing and supply storage | |
| cable management function | Recessed grommets route power and data cables from worksurface down to floor level | |
| modular configuration function | Cluster can be reconfigured or extended by adding matching partition and desk modules to create 2/4/8 person layouts | |
| leveling adjustment function | Adjustable base glides compensate for uneven office flooring to keep worksurfaces stable and level | |
| pedestal locking function | Central lock secures all three drawers of each mobile pedestal to protect personal office contents | |
| curved corner work area | Rounded inner corner provides extended elbow room for each user without sharp desk edges | |
| modesty panel coverage | Lower front panels block view of user legs from aisle and adjacent work positions for visual privacy | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open-plan office staff areas | Provides semi-private work positions for team members in general office spaces | |
|---|---|---|
| call center and customer service floors | Dedicated individual worksurfaces with storage suit high-volume seated task work | |
| startup and co-working spaces | Modular layout adapts to changing team sizes and flexible seating arrangements | |
| finance and administrative departments | Lockable personal pedestals provide secure storage for documents and office supplies | |
| corporate back-office work zones | Dual-height dividers reduce cross-seat distraction while maintaining team visibility | |
| small business office fit-outs | Complete 6-person cluster fits standard open office floor plans without custom construction |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and dimensional requirements for worksurfaces | |
|---|---|---|
| EN 1335-1:2020 | Office furniture dimensional coordination for seated work positions |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance and safety standard for worksurface load testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard for mobile pedestal drawer testing |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worksurface and cabinet components | |
|---|---|---|
| GB/T 3327-2017 | Quality and test standards for office desks and workstations | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panel materials used in indoor furniture | |
| GB/T 4897.3-2003 | Performance requirements for particle board used in furniture construction |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worksurface and cabinet components; 2. GB/T 3327-2017: Quality and test standards for office desks and workstations; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panel materials used in indoor furniture; 4. GB/T 4897.3-2003: Performance requirements for particle board used in furniture construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
