PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 2800 × 1100 mm
Overall cluster footprint	3200 x 2800 x 1100 mm
Worksurface height	750 mm
Per-station L-shaped worksurface size	1200 x 600 mm
Desktop thickness	25 mm
Partition system total height	1100 mm
Partition panel thickness	60 mm
Knee clearance height under desk	650 mm
Curved seat edge cutout radius	300 mm
Cable grommet diameter	60 mm
Mobile 3-drawer pedestal size	725 x 420 x 480 mm
Under-desk CPU stand size	250 x 450 x 120 mm
Knee well width per seat	800 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total cluster net weight	380 kg
Per-workstation static desktop load capacity	120 kg
Mobile pedestal drawer static load rating	30 kg per drawer
Recommended user capacity	6 people
Partition frame static stability load	50 kg horizontal force per panel
PVC edge abrasion resistance	2000 cycles
Standard commercial product warranty	3 years
Available finish options	30 melamine colors, 14 fabric/glass options
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate and finish	25mm thick melamine-faced MFC panel with 2mm PVC edge banding
Structural support frame	1.2mm thick white powder-coated square steel tubing
Partition upper panel	4mm thick frosted semi-transparent acrylic panel with white metal border
Partition lower panel	18mm thick light woodgrain melamine-faced MFC panel
Mobile pedestal construction	18mm thick MFC carcase, 3 soft-close drawer fronts, white painted drawer faces
Pedestal and CPU stand casters	30mm diameter black nylon swivel casters, 2 with brake locks
Cable grommet	ABS plastic circular cable pass-through with removable brush insert
Partition connector hardware	Zinc-plated steel modular connection posts with lock-in clips
CPU stand platform	15mm thick MFC shelf with steel support brackets
Desk modesty panel	18mm thick light woodgrain MFC panel mounted below desktop front edge
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular cluster layout	Cross-shaped 6-station configuration forming 6 individual L-shaped work zones
Seated privacy partition system	1100mm high panels separating adjacent workstations to reduce visual distraction
Cable management system	One circular grommet per worksurface routing power and data cables below desk level
Integrated mobile storage	One 3-drawer lockable mobile pedestal per outer station for documents and office supplies
Under-desk CPU support	Wheeled adjustable CPU stand per station holding desktop computer towers off the floor
Ergonomic seating edge	Curved concave desktop cutout allowing close, neutral posture positioning for seated users
Knockdown assembly design	Modular bolt-connected components allowing reconfiguration or disassembly for relocation
Mobile storage mobility	Four swivel casters per pedestal and CPU stand for easy repositioning under desks
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan call center offices	High-density clustered seating with partitioned privacy for focused phone-based work
Back-office administrative departments	Dedicated individual work zones with storage for paperwork and office supplies
Startup and co-working spaces	Modular reconfigurable layout adapting to changing team headcount and seating plans
Corporate shared service centers	6-person cluster footprint fitting standard 3.6x3.2m office bay dimensions
Training and temporary project teams	Integrated cable and storage supporting rapid deployment for project workgroups
Small to medium business offices	All-in-one workstation set eliminating need for separate desk, partition and storage purchases

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements for desktop loading and stability
EN 1335-1:2020	Office workstation dimensional coordination for seated user clearance requirements
EN 1023-1:2019	Office storage furniture strength and durability requirements for mobile pedestals
EN 13986:2004	Wood-based panel performance requirements for construction use in furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for static load, cycle and stability testing
ANSI/BIFMA X5.6-2022	Panel systems standard for partition strength, stability and hardware performance
ANSI/BIFMA X5.3-2022	Vertical files and mobile storage pedestals performance and durability standard

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desktops and storage components
GB/T 3327-2016	Office desk performance and dimension standards for worksurface and clearance requirements
GB/T 28202-2011	Office furniture panel performance standards for MFC substrate durability
GB 18580-2017	Formaldehyde emission limits for wood-based panel products used in indoor furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desktops and storage components;
2. GB/T 3327-2016: Office desk performance and dimension standards for worksurface and clearance requirements;
3. GB/T 28202-2011: Office furniture panel performance standards for MFC substrate durability;
4. GB 18580-2017: Formaldehyde emission limits for wood-based panel products used in indoor furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR6-L1200-PT25

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR6-L1200-PT25

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR6-L1200-PT25Open Export Tool

Quick Actions

Post an RFQ

Product Description

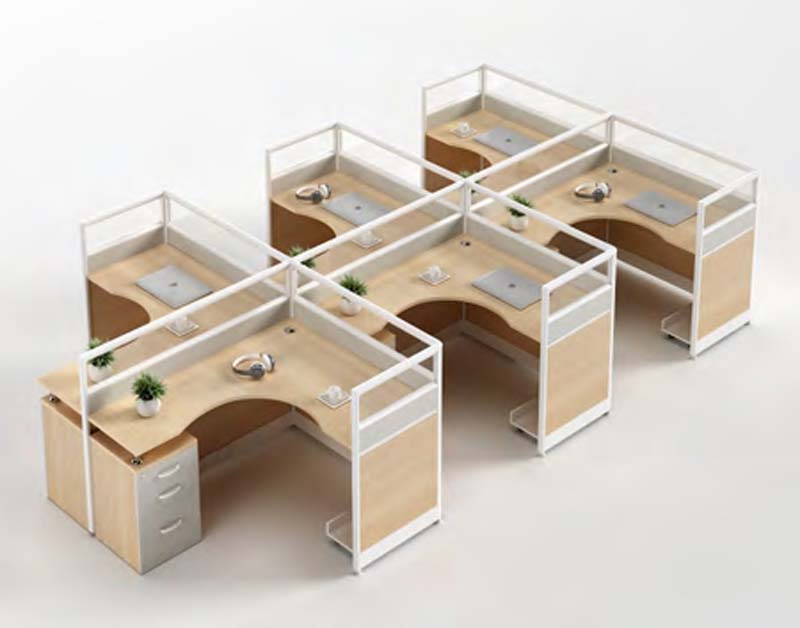

The 6-Person Cross-Shaped L-Profile Office Cubicle Workstation Cluster with Partitions and Storage is a modular, unbranded workspace solution designed to support six individual users in a cohesive, space-efficient layout. Arranged in a cross-shaped formation, the cluster creates six distinct L-shaped work zones, defined by a two-part partition system that balances privacy and open visual flow. Lower partition panels feature a light woodgrain finish, while upper panels use frosted semi-transparent material framed in white, separating adjacent stations to reduce visual distraction without fully enclosing users. The overall structure sits on white powder-coated square steel tubing frames that provide stable support for all components. Each workstation is fitted with a 25mm thick melamine-faced MFC worktop, finished with 2mm PVC edge banding for durable, long-wearing use. The worktops feature a curved concave cutout at the seating position to support neutral, close positioning for seated users, with a consistent worksurface height and ample knee clearance underneath for comfortable extended use. Integrated functional features are built into every station: each worksurface includes a circular ABS cable grommet with a removable brush insert to route power and data cables neatly below desk level, every station has an adjustable wheeled CPU stand to lift computer towers off the floor, and each outer station is paired with a 3-drawer lockable mobile storage pedestal. The pedestals are constructed from MFC with soft-close drawers, white painted fronts, and black nylon swivel casters with two locking brakes per unit for easy repositioning and secure placement. The modular, bolt-connected knockdown design allows for straightforward assembly, disassembly, or reconfiguration to adapt to changing space needs, and the set comes with a 3-year standard commercial warranty. This workstation cluster is well suited for a range of commercial spaces, including high-density open-plan call centers, back-office administrative departments, flexible startup and co-working environments, corporate shared service centers, temporary project team work areas, and small to medium business offices. Its all-in-one design removes the need to source separate desks, partitions, and storage units, and its footprint fits standard commercial office bay dimensions. When procuring this set, buyers should account for required assembly time, plan for appropriate access to accommodate packaged delivery, and note that the modular connection hardware supports future layout adjustments as team needs evolve. The balanced mix of privacy, accessible storage, and cable management makes it a practical choice for teams seeking a turnkey clustered workspace solution that supports both focused individual work and easy team coordination.
