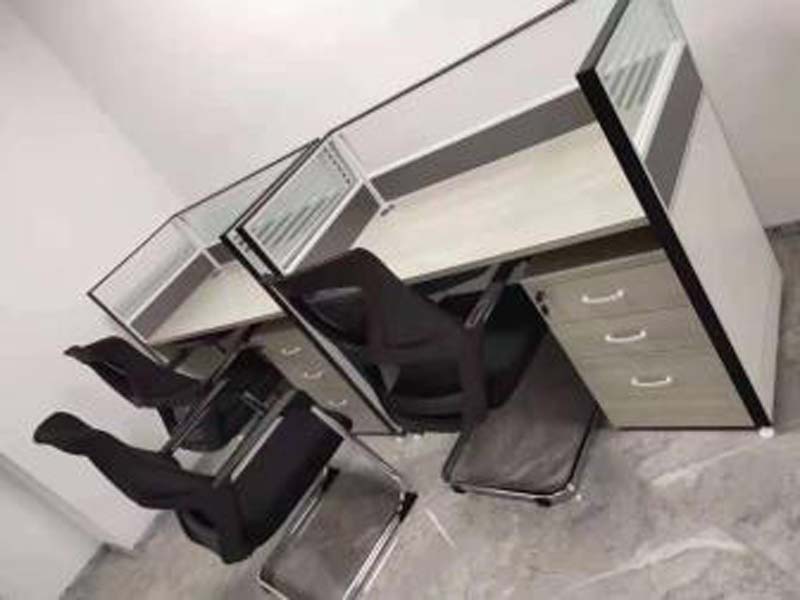

Product supplier2-Person Linear Frosted Glass Partition Office Workstation with Integrated 3-Drawer Pedestals, 25mm thick E1-grade particleboard
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 700 × 1200 mm | |
|---|---|---|
| Overall workstation dimensions | 2800 x 700 x 1200 mm | |
| Per-seat work surface dimensions | 1400 x 700 x 25 mm | |
| Work surface height from floor | 750 mm | |
| Glass divider height above work surface | 450 mm | |
| Partition frame profile thickness | 30 mm | |
| Under-desk 3-drawer pedestal dimensions | 400 x 500 x 680 mm | |
| Seated knee clearance height | 680 mm | |
| Seated knee clearance depth per seat | 500 mm | |
| Leveling foot adjustable height | 15 mm | |
| Cable grommet diameter | 60 mm | |
| PVC edge banding thickness | 2 mm | |
| Drawer internal usable height per compartment | 180 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 130 kg | |
|---|---|---|
| Work surface static uniform load capacity | 120 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Work surface abrasion resistance | 2000 cycles | |
| Frosted glass panel impact resistance | Tempered safety glass rated for 10kg impact | |
| Maximum recommended user count | 2 people | |
| Product structural warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface core | 25mm thick E1-grade particleboard | |
|---|---|---|
| Work surface finish | Textured light-grey melamine laminate | |
| Edge sealing | 2mm thick PVC edge banding | |
| Partition dividers | 5mm thick frosted tempered safety glass | |
| Partition frames and desk trim | 1.2mm thick powder-coated black steel | |
| Drawer pedestals | 0.8mm thick cold-rolled steel cabinet body | |
| Drawer handles | Polished chrome-plated steel pull handles | |
| Leveling feet | Nylon base with steel threaded stem | |
| Desk side and modesty panels | 18mm thick melamine-faced MDF | |
| Connector hardware | Zinc-plated steel knock-down fittings | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Frosted glass privacy dividers | Fixed vertical panels mounted between seats to block direct line of sight | |
|---|---|---|
| Integrated drawer storage | One fixed 3-drawer pedestal per seat mounted at the outer desk edge | |
| Drawer lock mechanism | Central keyed lock secures all three drawers on each pedestal | |
| Wire management grommets | One circular port per desk position at the rear work surface | |
| Adjustable leveling feet | Threaded feet at each frame leg adjust vertically to 15mm | |
| Modular connection design | Pre-drilled frame holes allow linking multiple 2-person units into longer clusters | |
| Ball-bearing drawer slides | Full-extension slides allow 100% drawer access for easy retrieval of back-stored items | |
| Smooth desk edge profile | Rounded sealed edge eliminates sharp corners | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office staff work areas | Provides semi-private dedicated work positions for admin, operations, or call center teams | |
|---|---|---|
| Small business startup offices | Cost-effective, quick-install dual workstation for teams with limited floor space | |
| Corporate co-working spaces | Modular design supports flexible scaling of dedicated member work positions | |
| Government administrative offices | Durable, high-use configuration for daily document processing and computer work | |
| Recommended companion seating | Cantilever-frame mesh or fabric office task chairs with 450mm standard seat height | |
| Suitable hard flooring installations | Leveling feet accommodate marble, tile, or low-pile carpet office flooring |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office work tables safety and strength requirements | |
|---|---|---|
| EN 12521:2015 | Furniture strength, durability and safety for non-domestic seating | |
| EN 1036-2:2008 | Safety glazing materials for furniture use |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety and durability | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard for office pedestal performance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2019 | Office desks and tables | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels | |
| GB 15763.2-2017 | Tempered safety glass for building use |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2019: Office desks and tables; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels; 4. GB 15763.2-2017: Tempered safety glass for building use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
