PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 2800 × 1150 mm
Overall assembled dimensions	2800 x 2800 x 1150 mm
Individual workstation work surface	1400 x 600 mm
Work surface height from floor	750 mm
Seated knee clearance height under desk	620 mm
Privacy partition total height from floor	1150 mm
Integrated storage pedestal dimensions	400 x 600 x 680 mm
Pedestal leg clearance from floor	100 mm
Desktop panel thickness	25 mm
Cable grommet diameter	60 mm
Partition frame tube cross-section	30 x 30 mm
Leg foot diameter (leveling glide)	30 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	180 kg
Uniform work surface static load per position	100 kg
Drawer static load capacity per drawer	25 kg
Recommended maximum user weight per seat	120 kg
Surface scratch resistance (Taber wear cycles)	2000 cycles
Surface water and stain resistance duration	24 hours
Leveling glide vertical adjustment range	15 mm
Standard product warranty	3 years
Available color options	60
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface panel	25mm E1-grade melamine-faced particleboard
Work surface edge banding	2mm PVC impact-resistant edge trim
Partition frame and support structure	Powder-coated square steel tube with white finish
Lower modesty panels	18mm melamine-faced engineered wood with white finish
Storage pedestal cabinet bodies	18mm melamine-faced particleboard, white cabinet with light wood door/drawer fronts
Drawer and door hardware	Zinc-alloy lock cores, cold-rolled steel drawer slides, plastic handle inserts
Elevated cabinet legs	1.2mm thick powder-coated black steel legs
Adjustable floor glides	Nylon base with steel threaded stud
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cross partition layout	Divides unit into 4 individual L-shaped seated work zones
Per-position storage	Each station includes 1 lockable drawer and 1 lower storage cabinet
Cable management	Circular desktop grommets at each station for monitor and power wire routing
Modular assembly	Knock-down construction supports reconfiguration or expansion of workstation banks
Floor leveling	Adjustable glides on all support points correct for uneven office flooring
Privacy screening	Upper open-frame partition blocks direct cross-sightline between seated users
Drawer security	Keyed locks on each pedestal drawer secure personal office documents and belongings
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office team zones	Provides 4 dedicated seated work positions with visual separation for departmental teams
Startup and SME office spaces	All-in-one integrated storage reduces need for separate furniture purchases for small offices
Call center and administrative work areas	Cable management and privacy screens support long-duration seated computer work
Staff renovation projects	Modular design supports phased installation and future layout reconfiguration
Ergonomic seated work environments	Standard 750mm work height matches full-size adjustable office task chairs
Indoor dry office environments only	Melamine surfaces are not rated for outdoor or high-humidity storage use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office work tables, safety and strength requirements for commercial use
EN 527-2:2016	Office work tables, dimensional and ergonomic clearance requirements
EN 13986:2004+A1:2015	Performance requirements for wood-based panels for interior furniture use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability, and structural performance
ANSI/BIFMA M7.1-2020	Standard test method for evaluating furniture VOC emissions for indoor office use

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to desktops and cabinet panels
GB/T 3327-2017	Performance requirements for office desks, covering load and stability criteria
GB 18580-2017	Formaldehyde emission limits for engineered wood panels used in indoor furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to desktops and cabinet panels;
2. GB/T 3327-2017: Performance requirements for office desks, covering load and stability criteria;
3. GB 18580-2017: Formaldehyde emission limits for engineered wood panels used in indoor furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-2800-LW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-2800-LW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-2800-LWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

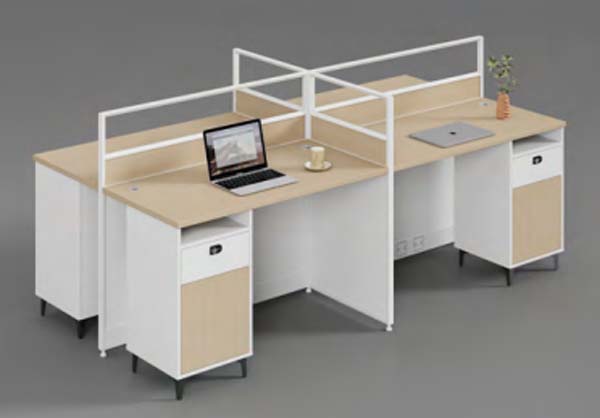

The 4-Person Cross Modular Office Cubicle Workstation with Integrated Drawer Pedestals, model WS-CR2800-LW, is a structured open-plan workspace solution featuring a balanced cross-divider layout that creates four distinct L-shaped individual work zones for seated users. Its two-tone visual scheme pairs light wood-finished drawer and cabinet fronts with crisp white frames, support structures, and modesty panels, creating a clean, professional aesthetic that complements a wide range of office interior palettes. The cross-shaped partition structure rises to full privacy screening height to block direct cross-sightlines between adjacent seated users, while retaining an open upper frame that prevents the enclosed feel of full-height cubicle systems. Each individual work zone is positioned to offer equal access to surface space and integrated storage, with evenly balanced proportions across the entire unit footprint. The workstation is built for consistent commercial use, with a powder-coated white square steel tube frame and black elevated steel legs supporting 25mm thick E1-grade melamine-faced particleboard worktops finished with 2mm impact-resistant PVC edge banding. Lower modesty panels and storage pedestal cabinet bodies are constructed from 18mm melamine-faced engineered wood, fitted with zinc-alloy lock cores, cold-rolled steel drawer slides, and durable plastic handle inserts. All support points feature nylon adjustable floor glides with steel threaded studs to compensate for uneven flooring, while major joints use robust connectors with multiple fixing points for long-term structural stability. The melamine surfaces offer reliable scratch resistance, plus 24-hour protection against water and common office stains to withstand daily wear. Each of the four work positions includes a lockable drawer and dedicated lower storage cabinet to secure personal documents and work supplies, eliminating the need for separate under-desk storage purchases. Circular desktop grommets at every station streamline cable routing for monitors, peripherals, and power cords to reduce surface clutter, while the standard 750mm work surface height aligns with full-size adjustable office task chairs to support ergonomic seated posture. The knock-down modular construction supports straightforward reconfiguration or expansion of connected workstation banks as team needs change, with a documented assembly time of 40 minutes per set. This workstation is ideally suited for open-plan office team zones, small and medium enterprise offices, startup workspaces, call center floors, and administrative departments, as well as phased office renovation projects where layout flexibility is a priority. It is rated exclusively for indoor dry office environments, and is not suitable for outdoor placement or high-humidity storage areas. Procurement teams should note the unit ships in two cartons per set, and plan for appropriate delivery and installation access; the modular design supports future expansion, so teams can align initial purchases with long-term workspace growth plans without full furniture replacement. When specifying seating, select task chairs rated to accommodate the recommended maximum per-user weight for the workstation, and account for the fixed under-desk knee clearance to ensure compatible chair fit.

4-Person Cross Modular Office Cubicle Workstation with Integrated Drawer Pedestals Specifications
