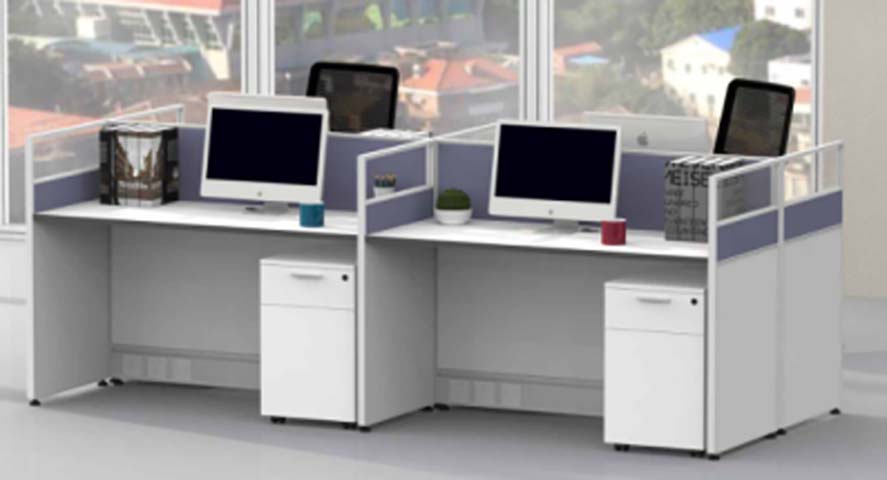

Two-Person Cross-Shaped Partitioned Office Workstation with Mobile Pedestals (model WS-CR2-1200) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 1200 × 1100 mm and main material of Particle‑board (PB). Load capacity: 100 kg. Certifications: Partitioned,structure,two-person,configuration,mobile,storage,pedestals,commercial,design. This page consolidates 6 groups of specifications and ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Work surface static load capacity | 100 kg | |
|---|---|---|
| Total workstation unit weight | 150 kg | |
| Partition panel sound transmission class | 20 dB | |
| Recommended maximum user weight per seat | 110 kg | |
| Leveling foot adjustment range | 10 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm thick E1 grade particleboard with 0.6mm melamine laminate, PVC edge banding | |
|---|---|---|
| Frame and legs | 1.2mm thick powder-coated cold-rolled steel tubing, matte light gray finish | |
| Partition core | 15mm thick medium density fiberboard, wrapped in 5mm thick acoustic polyester fabric | |
| Upper partition panel | 5mm thick clear tempered glass, fixed in steel frame with rubber gaskets | |
| Mobile pedestals | 0.8mm thick powder-coated steel body, 1.0mm thick drawer fronts, integrated lock | |
| Caster wheels | 50mm diameter hard nylon swivel casters, 2 with brake locks per pedestal |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workspace division | Cross-shaped partitions create two separate, private individual work zones | |
|---|---|---|
| Mobile storage | Lockable 2-drawer pedestals roll freely under each desk for personal storage | |
| Cable management | Integrated under-desk cable trays route power and data cords from floor to work surface | |
| Floor leveling | Adjustable feet at all frame corners stabilize the unit on uneven floors |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides individual work zones with basic privacy for two employees per unit | |
|---|---|---|
| Shared administrative work areas | Supports daily computer, paperwork and filing tasks with included storage |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
