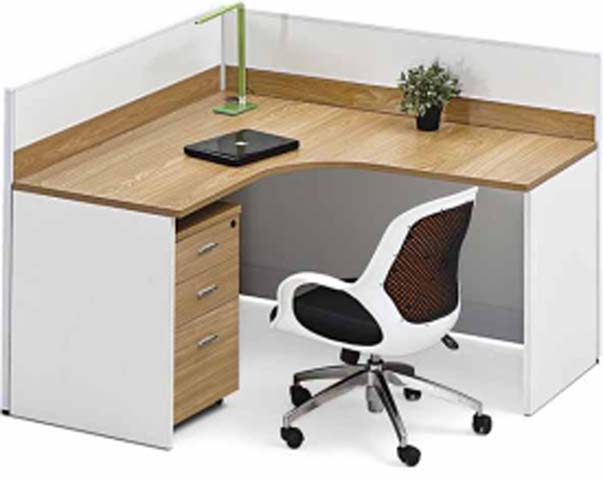

Single-User Curved-Front Corner Office Cubicle Workstation with 3-Drawer Pedestal (model CUB-CRN-1650-L-OW-LK-3D) is listed under L-Shaped Office Desk, with overall dimensions of 1651 × 1651 × 1600 mm and main material of Particle‑board (PB). Load capacity: 91 kg. Certifications: Partial-height,privacy,cubicle,L-shaped,curved,work,lockable,3-drawer,pedestal,light,oak,and,white,finish. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| overall workstation footprint | 1651 x 1651 x 1600 mm | |
|---|---|---|
| worksurface height | 762 mm | |
| worksurface thickness | 25 mm | |
| main work surface segment depth | 610 mm | |
| knee clearance width at front opening | 700 mm | |
| knee clearance height under worksurface | 680 mm | |
| privacy panel upper height | 1600 mm | |
| lower modesty panel height | 400 mm | |
| 3-drawer pedestal dimensions | 676 x 476 x 470 mm | |
| upper drawer internal height | 120 mm | |
| lower file drawer internal height | 280 mm | |
| cable grommet diameter | 60 mm | |
| adjustable foot glide height adjustment | 15 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| worksurface static load capacity | 91 kg | |
|---|---|---|
| pedestal drawer static load per drawer | 25 kg | |
| workstation recommended user weight capacity | 136 kg | |
| product net weight | 92 kg | |
| laminate surface abrasion resistance | 400 cycles | |
| manufacturer warranty period | 10 years | |
| available color options | 2 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| worksurface construction | 25mm thermally fused laminate over particleboard core | |
|---|---|---|
| frame and support structure | 1.2mm thick powder-coated white steel | |
| privacy panel construction | Fabric wrapped over fiberboard core | |
| pedestal cabinet construction | 18mm particleboard with matching light oak laminate | |
| drawer hardware | Full extension ball bearing steel slides | |
| drawer lock mechanism | Integrated keyed cam lock |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| storage configuration | Left-side integrated pedestal with 2 utility drawers and 1 hanging file drawer | |
|---|---|---|
| cable management | Dual desktop cable grommets with under-desk cable channel | |
| floor leveling | Four adjustable steel glides at frame base | |
| privacy configuration | Partial-height surrounding panels |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| open plan office single workstations | Provides individual work zones with privacy for mid-size open office layouts | |
|---|---|---|
| home office dedicated workspaces | Compact footprint fits residential office spaces with dedicated storage |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements | |
|---|---|---|
| EN 527-2:2002 | Office worktables dimensional safety and clearance requirements | |
| EN 1335-1:2020 | Office furniture workstation ergonomic guidance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk and worksurface performance standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office storage and pedestal performance standard | |
| ANSI/BIFMA M7.1-2020 | Furniture VOC emissions standard |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations | |
| GB/T 35607-2017 | Formaldehyde emission limits for wood-based furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture; 2. GB/T 3327-2017: Performance requirements for office desks and workstations; 3. GB/T 35607-2017: Formaldehyde emission limits for wood-based furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
