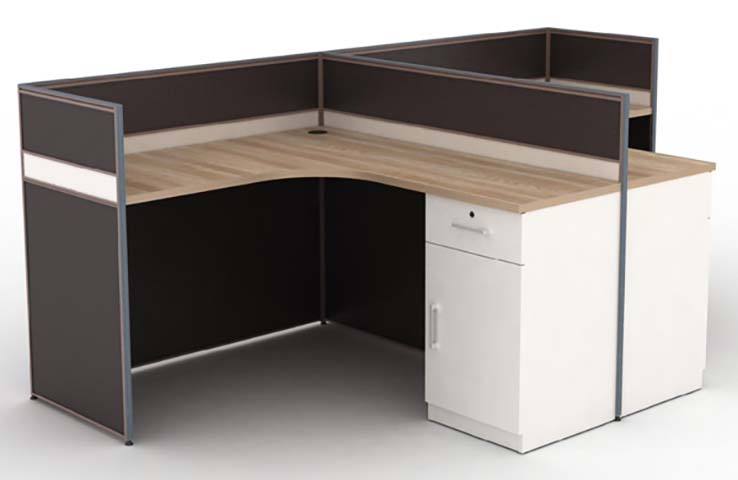

Product supplier2-Person L-Shaped Partitioned Office Workstation with Fixed Storage Pedestals, 25mm E1 grade particleboard with light oak melamine finish, PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Single station work surface static load | 100 kg | |
|---|---|---|
| Pedestal drawer static load | 25 kg | |
| Pedestal cabinet shelf static load | 30 kg | |
| Recommended user weight per seat | 110 kg | |
| Unit net weight | 165 kg | |
| Partition panel sound transmission class | 20 | |
| Design service life | 8 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E1 grade particleboard with light oak melamine finish, PVC edge banding | |
|---|---|---|
| Partition core panel | 18mm particleboard with dark charcoal fabric wrap | |
| Partition frame | 1.2mm thick powder-coated dark gray aluminum alloy extrusion | |
| Modesty panel | 16mm dark melamine-faced particleboard | |
| Storage pedestal carcass | 18mm off-white melamine-faced particleboard with PVC edge banding | |
| Drawer and door hardware | 0.8mm cold-rolled steel handles, steel lock cylinder, steel hinges | |
| Partition leveling feet | 10mm diameter nylon adjustable glides | |
| Accent trim strip | 1.2mm white PVC strip mounted on left partition panel | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | 60mm diameter round grommet at inner work corner routes power/data cables from desktop to floor cavity | |
|---|---|---|
| Storage configuration per pedestal | 1 lockable top utility drawer for small supplies, 1 hinged lower door for file and personal item storage | |
| Privacy separation | 350mm high fabric partitions block direct line of sight between adjacent seated workers and walkways | |
| Floor leveling | Adjustable nylon glides at partition base compensate for 15mm uneven floor height difference | |
| Modular connection | Central shared partition joins two L-shaped workstations into back-to-back cluster configuration | |
| Locking storage | Integrated key lock on top drawer secures personal items and confidential documents | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Provides individual privacy and dedicated storage for back-office and administrative staff in shared workspaces | |
|---|---|---|
| Call center and customer service zones | Sound-dampening partitions reduce cross-talk between adjacent agents while maintaining supervisor sightlines | |
| Startup and co-working spaces | Modular connection design allows reconfiguration of workstation clusters as team size changes | |
| Government and corporate administrative floors | Neutral two-tone finish and durable construction suit high-traffic daily use environments | |
| Two-person shared work zones | Adjacent L-shaped units support paired teams without additional partition installation | |
| Temporary project offices | Flat pack delivery and on-site assembly allow fast deployment for short-term work sites |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 Office furniture - Worktables and desks - Safety requirements | Sets minimum stability, edge radius and static load criteria for commercial office desks | |
|---|---|---|
| EN 1335-1:2020 Office furniture - Office work chairs - Dimensions | Provides ergonomic clearance reference for knee well dimensions to fit standard task chairs |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 Desk Products - Tests for safety and performance | Recommends static load, cycle and stability test parameters for work surfaces and storage units |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applies to panel material quality, dimensional tolerance and edge banding performance for desktops and cabinets | |
|---|---|---|
| GB/T 35607-2017 Green product assessment - Furniture | Sets formaldehyde emission limit of ≤0.05mg/m³ for E0 grade panel materials suitable for office spaces | |
| GB 28007-2011 Safety requirements for office furniture - Desks and chairs | Applies to work surface edge radius, stability and load rating requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applies to panel material quality, dimensional tolerance and edge banding performance for desktops and cabinets; 2. GB/T 35607-2017 Green product assessment - Furniture: Sets formaldehyde emission limit of ≤0.05mg/m³ for E0 grade panel materials suitable for office spaces; 3. GB 28007-2011 Safety requirements for office furniture - Desks and chairs: Applies to work surface edge radius, stability and load rating requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
