Name: Double-Seat Modular Office Cubicle Workstation with Integrated Storage Pedestals
Brand: YOUBILI
SKU: K72UXY

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall unit dimensions	2400 x 600 x 1220 mm
Individual workstation width per seat	1200 mm
Work surface height from floor	750 mm
Partition privacy panel height	1220 mm
Work surface depth	600 mm
Under-desk storage pedestal dimensions per seat	400 x 500 x 660 mm
Seated knee clearance width per position	800 mm
Seated knee clearance height	670 mm
Cable grommet diameter on desktop	60 mm
Desktop thickness	25 mm
Partition frame profile width	50 mm
Solid lower partition panel height	720 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity per workstation	113 kg
Unit net weight reference	120 kg
Melamine surface abrasion resistance	2000 cycles
Frame corrosion resistance service life	10 years
Drawer slide cycle rating	50000 cycles
Commercial product warranty	5 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1 grade particleboard with melamine laminate, 2mm PVC edge banding
Partition frame	50mm powder coated silver aluminum alloy extrusion
Lower partition panels	16mm laminated MDF core with matte grey finish
Upper partition panels	Translucent frosted slatted polycarbonate panels
Storage pedestals	16mm laminated particleboard cabinet body with central locking system
Hardware components	Steel leveling feet, zinc alloy locks, ball bearing drawer slides

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	60mm desktop grommets route power and data cables to under-desk channels
Storage function	Each station includes 1 lockable top drawer and 1 lower lockable cabinet door
Floor leveling	Adjustable steel feet at frame base compensate for uneven floor surfaces
Modular expansion	Aluminum partition frame supports connection to additional workstation modules

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office areas	Provides individual private workspaces for two staff while maintaining efficient space use
Administrative and clerical work zones	Integrated storage and cable management supports daily desk work and document organization

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desktop and frame structural performance
EN 1335-1:2020	Office furniture ergonomic dimensions for work surfaces, applicable to height and clearance dimensions
EN 13986:2004+A1:2015	Wood-based panels for structural use, applicable to laminated board material performance

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard for safety, durability and structural performance, recommended for commercial use
ANSI/BIFMA X5.9-2019	Storage units standard for drawer and cabinet performance, applicable to integrated pedestals

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to laminated desktop and cabinet components
GB/T 3327-2016	Technical requirements for office desks and workstations, applicable to structural performance and dimensions
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to particleboard and MDF components

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminated desktop and cabinet components;
2. GB/T 3327-2016: Technical requirements for office desks and workstations, applicable to structural performance and dimensions;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to particleboard and MDF components;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-2P-LIN-240612

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-2P-LIN-240612

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-2P-LIN-240612Open Export Tool

Quick Actions

Post an RFQ

Product Description

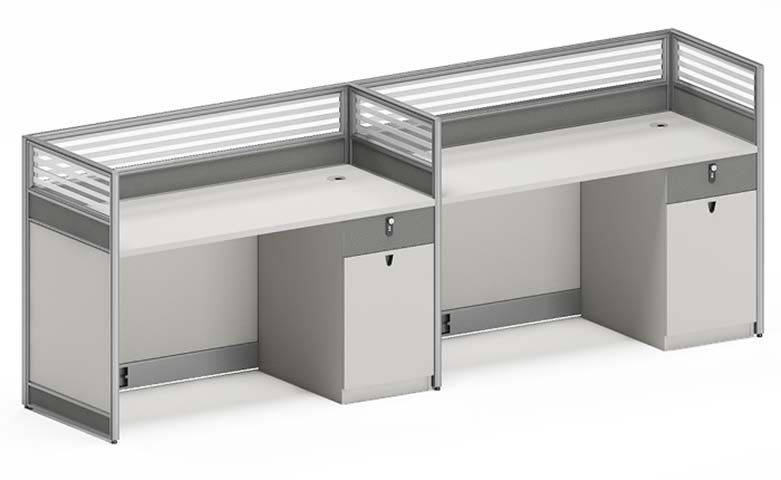

The YOUBILI WS-2P-LIN-240612 is a double-seat modular office cubicle workstation designed to balance individual privacy, space efficiency and functional utility for shared work environments. Its linear layout allocates a dedicated individual workstation to each of two users, separated by a full-height partition assembly that defines clear personal work zones without creating a fully enclosed feel. The upper partition uses translucent frosted slatted polycarbonate panels to allow soft light transmission across stations, while the lower section features matte grey finished laminated MDF panels to block direct line of sight at seated level, supporting focused work. Each work surface sits at a standard ergonomic seated height, paired with ample knee clearance for comfortable all-day use. The unit’s overall form integrates under-desk storage pedestals directly beneath each work position, eliminating the need for separate supplementary storage units and keeping work surfaces free of clutter. The workstation is built with durable, purpose-specified materials for long-term commercial use. Work surfaces are constructed from 25mm E1 grade particleboard finished with abrasion-resistant melamine laminate, sealed with 2mm PVC edge banding to protect against daily wear. The partition structure uses 50mm powder-coated silver aluminum alloy extrusions for a rigid, corrosion-resistant frame. Each integrated storage pedestal is built from 16mm laminated particleboard, fitted with a central locking system, zinc alloy locks, and ball-bearing drawer slides for smooth operation. Adjustable steel leveling feet at the frame base stabilize the unit on uneven floor surfaces. Functional features are tailored to routine office workflows. 60mm desktop grommets route power and data cables directly to concealed under-desk channels, reducing tangled cord clutter on work surfaces. Each workstation includes one lockable top drawer and one lower lockable cabinet compartment for secure storage of personal items, documents and office supplies. The modular aluminum frame supports direct connection to additional matching workstation modules, allowing teams to expand workspace configurations as staffing needs change. This unit is well-suited for open plan office areas, where it delivers private dedicated workspaces for two staff members while maximizing efficient use of floor space. It also serves administrative and clerical work zones well, as its integrated storage and cable management support daily desk tasks and organized document storage. For procurement planning, note the unit ships in two cartons per set, with a reference assembly time of 40 minutes per unit. The product is backed by a 5-year commercial warranty, with performance ratings that support high-frequency daily office use. When planning layout, account for the unit’s full footprint to ensure adequate clearance for user movement and access to storage compartments.

FurnDim

Double-Seat Modular Office Cubicle Workstation with Integrated Storage Pedestals Specifications

WS-2P-LIN-240612
