PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3020 × 1600 × 1200 mm
Overall cluster dimensions	3020 x 1600 x 1200 mm
Work surface height	750 mm
Worktop thickness	25 mm
Divider panel thickness	83 mm
Knee clearance height	680 mm
Knee clearance width	800 mm
Knee clearance depth	600 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Cable grommet diameter	80 mm
Side modesty panel height	420 mm
PVC edge banding thickness	2 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Worktop static load capacity	150 kg
Mobile pedestal drawer static load	40 kg per drawer
Net weight per single L-workstation	95 kg
Recommended user weight limit	136 kg
Fabric panel tackability	Supports push pin document hanging
Surface abrasion resistance	2000 cycles
Worktop impact resistance	10 N·m
Manufacturer warranty period	10 years
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Worktop substrate	E1 grade particleboard core
Worktop finish	Light oak grain melamine laminate
Divider panel frame	Powder-coated aluminum extrusion
Divider panel surface	Dark charcoal woven fabric upholstery
Divider panel core	High-density tackable fiberboard
Side support panels	White matte melamine finished engineered wood
Frame and leveling feet	Powder-coated steel with adjustable nylon glides
Mobile pedestal construction	Cold-rolled steel with white powder-coat finish
Pedestal casters	50 mm diameter black nylon swivel casters
Desk edge treatment	2mm PVC edge banding, rounded corners
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy divider function	1200mm high panels block seated sightlines between adjacent users
Cable management	80mm diameter desk grommet routes power/data cables from worktop to under-desk
Mobile pedestal storage	Lockable 1 shallow drawer + 1 filing cabinet drawer on swivel casters
Floor leveling system	Adjustable nylon glides on all frame contact points
Modular reconfiguration	Aluminum rail connector system allows cluster expansion or re-layout
Modesty panel coverage	Full-height below-worktop black fabric panel blocks leg visibility
Pedestal lock mechanism	Integrated key lock secures both drawers simultaneously
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan corporate office spaces	Suitable for team work zones in medium to large offices
Call center and customer service floors	High-density clustered layout supports large team deployments
Startup and co-working spaces	Modular design allows reconfiguration as team sizes change
Government and administrative work areas	Neutral wood and white finish matches formal office decor
Back-office processing departments	Large L-shaped work surface accommodates multiple documents and monitors

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Office furniture - Work tables and desks - Safety requirements
EN 1335-2:2009	Office furniture - Office work chairs - Safety requirements

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk Products - Tests for safety, durability and structural adequacy

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB/T 3327-2016	Office furniture: desks and tables
GB 18584-2001	Indoor decorating and refurbishing materials: limit of formaldehyde emission

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB/T 3327-2016: Office furniture: desks and tables;
3. GB 18584-2001: Indoor decorating and refurbishing materials: limit of formaldehyde emission;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L2-1600-ARC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L2-1600-ARC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L2-1600-ARCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

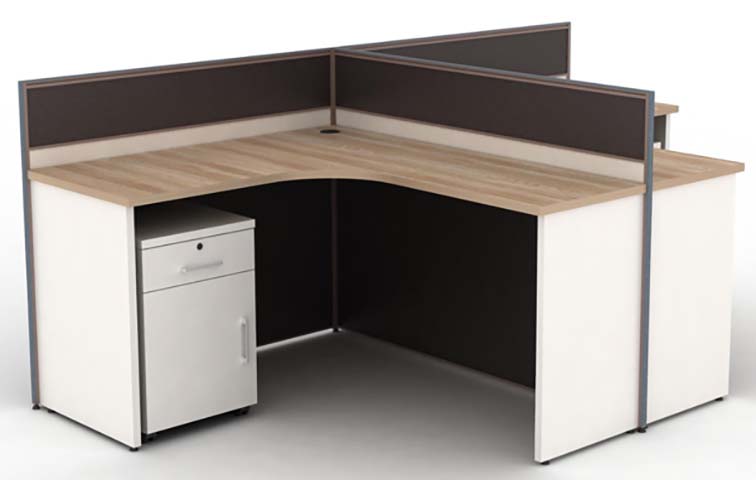

This 2-person L-shaped modular office cubicle workstation, model CUB-L1600-ARC, delivers a balanced, space-efficient layout for paired staff, with smoothly curved corner transitions that soften the linear structure of clustered open-plan setups. The light oak grain melamine worktop sits at a standard 750mm work surface height, framed by white matte melamine side support panels, with 1200mm high dark charcoal woven fabric dividers positioned to block seated sightlines between adjacent users. A full-height black fabric modesty panel below the worktop conceals leg visibility, while the included white powder-coated cold-rolled steel mobile pedestal tucks neatly under the work surface for unobtrusive storage. The worktop is built on an E1 grade particleboard core with a 25mm thick melamine-faced surface, mounted to a rigid powder-coated steel frame fitted with adjustable nylon glides at every floor contact point to stabilize placement on uneven flooring. The 83mm thick divider panels use a powder-coated aluminum extrusion frame over a high-density tackable fiberboard core, supporting push pin document hanging for quick reference materials. The mobile pedestal runs on 50mm diameter black nylon swivel casters, with a lockable shallow supply drawer and a filing cabinet drawer secured by a single integrated key lock that engages both compartments at once. An 80mm diameter desk grommet routes power and data cables cleanly from the work surface to under-desk channels, while the aluminum rail connector system supports cluster expansion or full layout reconfiguration as operational needs shift. The work surface supports a 150kg static load, with each pedestal drawer rated for 40kg static load, and recommended user weight limit of 136kg per station; the surface delivers 2000 cycles of abrasion resistance and 10 N·m of impact resistance for daily commercial use. Each station provides 680mm knee clearance height, 800mm knee clearance width, and 600mm knee clearance depth, with overall cluster dimensions of 3020 x 1600 x 1200 mm. The generous L-shaped work area accommodates multiple monitors and active document sets, making it well suited for open-plan corporate team zones, high-density call center floors, flexible co-working and startup spaces, formal government administrative areas, and document-heavy back-office processing departments. Procurement teams should note each set ships in 2 cartons, with 40 minutes of assembly time per unit, 0.8 m³ packaging volume, and 120kg packaged gross weight; the unbranded design’s neutral light oak, white, and dark charcoal finish coordinates with most existing commercial office palettes.

2-Person L-Shaped Modular Office Cubicle Workstation with Fabric Dividers and Mobile Pedestal Specifications
