PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2840 × 2700 × 1100 mm
Single workstation surface	1200 x 600 mm
Desktop height from floor	750 mm
Under-desk knee clearance height	650 mm
Under-desk knee clearance width per seat	580 mm
Divider height above desktop	350 mm
Divider lower solid panel height	350 mm
Desktop thickness	25 mm
PVC edge banding thickness	2 mm
Mobile pedestal dimensions	400 x 500 x 600 mm
Frame tube wall thickness	1.2 mm
Caster diameter on pedestals	50 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit net weight	220 kg
Static load per desktop work surface	100 kg
Mobile pedestal drawer static load per drawer	25 kg
Recommended user capacity	4 seated staff
Surface abrasion resistance	2000 cycles
Frame static load safety factor	2.5x working load
Frame and panel manufacturing defect warranty	5 years
Available color options	3
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop substrate	E1 grade particleboard
Desktop surface finish	Wear-resistant melamine laminate
Support frame and divider rails	Powder-coated white steel
Divider lower panels	Melamine-faced MFC
Side modesty panels	Melamine-faced particleboard
Edge treatment	2mm thick PVC edge banding
Mobile pedestal drawers	Cold-rolled steel drawer bodies
Pedestal casters	Black nylon swivel casters
Hardware components	Zinc-plated steel connectors and screws
Foot glides	Adjustable nylon floor glides
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy divider function	Partial-height dividers with open upper rails and solid lower panels
Cable management provision	Pre-drilled cable access grommets per workstation
Mobile pedestal mobility	3-drawer rolling pedestals fit fully under each desktop
Modular assembly design	CKD flat-pack modular construction
Floor leveling function	Adjustable base glides at each frame leg
Pedestal storage configuration	1 stationery drawer plus 2 filing drawers per unit
Assembly connection system	Cam-lock and bolted frame joints
Surface maintenance feature	Stain-resistant melamine surface
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office staff zones	Suitable for 4-person department clusters with seated privacy for daily computer work
Startup team workspaces	Fast-deploy modular configuration for flexible growing teams with under-desk storage
Call center and admin areas	Partial dividers reduce visual distraction while maintaining supervisor sightlines
Government and institutional offices	Durable commercial-grade construction meets standard procurement requirements
Small business open offices	Compact 2x2 layout fits 4 users in limited floor space without private offices
Temporary project team spaces	Modular design allows disassembly and reconfiguration for changing project teams
Co-working dedicated desks	Fixed assigned seating with personal storage for dedicated membership plans

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applicable to desk load and stability
EN 1335-1:2020	Office furniture workstation ergonomic dimensional requirements for seated use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products standard, static load and durability test requirements for work surfaces
ANSI/BIFMA X5.6-2022	Panel systems standard, divider panel attachment and structural performance requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel desk structural performance
GB 18580-2017	Formaldehyde emission limits for wood-based panels, minimum E1 grade for indoor office use
GB/T 3327-2016	Performance requirements for office desks and workstations, structural stability testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel desk structural performance;
2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade for indoor office use;
3. GB/T 3327-2016: Performance requirements for office desks and workstations, structural stability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-CR4-2840-LW

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-CR4-2840-LW

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-CR4-2840-LWOpen Export Tool

Quick Actions

Post an RFQ

Product Description

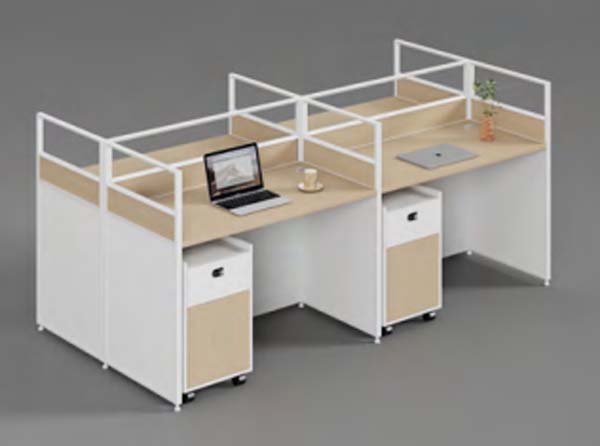

The WS-CR2840-LW 4-Person Cross-Config Office Cubicle Workstation is a compact cluster-style work solution designed to support collaborative yet focused seated work for up to four staff members. Its light wood and white finish pairs with a clean 2x2 cross layout, centered on partial-height privacy dividers that separate each individual work surface while leaving open upper rails to support team visibility and air flow. Each divider features a solid lower panel that sits above the desktop to block direct sightlines between adjacent workstations, balancing personal privacy with open sightlines that work well for supervised team environments. Each individual workstation provides a dedicated work surface, with standard desktop height and dedicated knee clearance to support comfortable seated postures during extended computer or administrative tasks. The unit’s frame is constructed from powder-coated white steel, with work surfaces built from E1 grade particleboard clad in wear-resistant melamine laminate, finished with 2mm thick PVC edge banding to protect against daily edge wear. Side modesty panels match the desk’s melamine finish, and cam-lock and bolted frame joints create a rigid, stable structure supported by adjustable base glides that level the unit on uneven flooring. Each workstation position includes pre-drilled cable access grommets to organize power and data cords away from work surfaces, and is paired with a caster-mounted 3-drawer mobile pedestal that tucks fully under the desk for accessible storage. Each pedestal holds one stationery drawer and two filing drawers, constructed with cold-rolled steel bodies and black nylon swivel casters for smooth repositioning, with zinc-plated steel connectors and screws securing all assembly points. The flat-pack modular construction supports fast deployment, with straightforward assembly that lets teams set up the workstation quickly in new or reconfigured spaces. The workstation’s durable commercial-grade build suits a wide range of professional environments, including open-plan office staff zones, startup team workspaces, call centers, administrative areas, government and institutional offices, small business open offices, and temporary project team spaces. Its compact footprint fits four users in limited floor space without requiring private office buildouts, while partial dividers reduce visual distraction without blocking supervisor sightlines. For procurement teams, key considerations include the unit’s 5-year warranty covering frame and panel manufacturing defects, static load ratings for desktops and pedestal drawers that support standard office equipment and supply storage, modular design that allows disassembly and reconfiguration as team needs shift, and the packaged set that ships across two cartons for streamlined delivery and staging prior to installation.

4-Person Cross-Config Office Cubicle Workstation with Dividers and Mobile Pedestals Specifications
