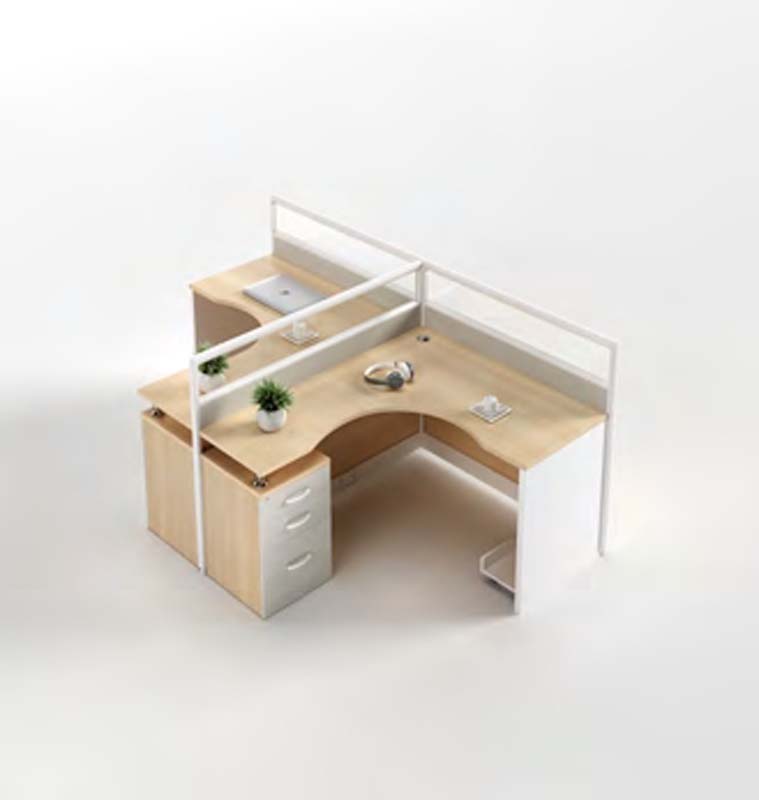

Product supplier2-Person L-Shaped Office Partition Workstation Desk, MFC particleboard core with light maple melamine laminate, PVC edge sealing
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2800 × 1400 × 1100 mm | |
|---|---|---|
| Overall unit dimensions | 2800 x 1400 x 1100 mm | |
| Work surface height | 750 mm | |
| Per-user L-shaped work surface | 1400 x 1200 mm | |
| Worktop thickness | 25 mm | |
| PVC edge band thickness | 3 mm | |
| Integrated 3-drawer pedestal dimensions | 400 x 480 x 600 mm | |
| Partition divider frame tube thickness | 1.2 mm | |
| Frosted partition panel thickness | 8 mm | |
| Curved knee clearance height | 650 mm | |
| Curved knee clearance width | 700 mm | |
| Cable grommet diameter | 60 mm | |
| CPU shelf dimensions | 250 x 450 x 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 110 kg | |
|---|---|---|
| Per work surface static load capacity | 150 kg | |
| Each drawer slide load rating | 30 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Laminate surface scratch resistance | 2000 revolutions | |
| Partition frame static load resistance | 50 kg | |
| Recommended user count | 2 | |
| Commercial warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop substrate and finish | MFC particleboard core with light maple melamine laminate, PVC edge sealing | |
|---|---|---|
| Support frame construction | White powder-coated square steel tubing with anti-corrosion pretreatment | |
| Partition divider panels | White powder-coated aluminum frame with frosted translucent acrylic panels | |
| Drawer pedestal cabinet | Light wood grain melamine laminated side panels with white drawer fronts and integrated ABS handles | |
| Drawer slide hardware | Cold-rolled steel ball-bearing full extension slides | |
| Cable management components | ABS plastic round desktop cable grommet, integrated under-desk cable raceway | |
| CPU shelf construction | 15mm thick melamine laminated shelf with steel support brackets | |
| Foot adjustment components | Nylon leveling glides with 10mm height adjustment range | |
| Modesty panel | 18mm thick melamine laminated fiberboard with white finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workspace division | Frosted semi-transparent framed dividers separate two independent L-shaped work zones to reduce visual distraction | |
|---|---|---|
| Seated access design | Curved arched knee cutout at each work position provides unobstructed legroom for standard office chairs | |
| Pedestal storage | Each position has an integrated 3-drawer unit (2 utility drawers, 1 file drawer) for document and office supply storage | |
| CPU storage support | Dedicated fixed lower shelf under each right work surface holds mid-tower desktop computer towers off the floor | |
| Cable routing | Round desktop grommets feed monitor, power and data cables to under-desk raceways to eliminate surface clutter | |
| Level adjustment | Integrated nylon foot glides adjust up to 10mm to compensate for uneven office flooring | |
| Modular connectivity | Pre-drilled connection points allow linking additional matching workstations to expand cubicle clusters | |
| Drawer lock function | Central locking mechanism secures all three pedestal drawers to protect confidential office documents | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Provides semi-private individual work zones for administrative and operations staff with shared corner footprint | |
|---|---|---|
| Small startup offices | Compact 2-person footprint fits limited office space while providing dedicated storage and cable management for two employees | |
| Government and enterprise staff floors | Commercial grade construction and privacy partitions meet daily high-traffic office use requirements for long-term deployment | |
| Shared team work corners | Mirrored L-shaped positions support adjacent team members working on shared projects while maintaining personal workspace | |
| Call center workstation clusters | Low partition height balances privacy and supervisor visibility for call center and customer service teams | |
| Branch office work areas | Modular design allows incremental expansion as headcount grows without full office reconfiguration |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for structural load and stability validation | |
|---|---|---|
| EN 527-2:2016 | Office worktables dimensional and mechanical performance requirements, applicable for work surface height and clearance verification | |
| EN 13986:2004+A1:2015 | Wood-based panels for structural use in furniture, applicable for substrate performance verification | |
| EN 1022:2018 | Furniture seating stability test reference, applicable for adjacent chair fit assessment |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Office desk products performance standard, applicable for load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Office storage units performance standard, applicable for drawer pedestal load and cycle testing | |
| ANSI/BIFMA X5.11-2015 | Large capacity office storage reference, applicable for file drawer performance verification |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable for worktop and cabinet panel quality inspection | |
|---|---|---|
| GB/T 3327-2017 | Performance and test methods for office desks, applicable for structural stability and load verification | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable for laminate panel environmental compliance | |
| GB/T 24821-2009 | Office panel partition system requirements, applicable for divider frame and panel structural performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable for worktop and cabinet panel quality inspection; 2. GB/T 3327-2017: Performance and test methods for office desks, applicable for structural stability and load verification; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable for laminate panel environmental compliance; 4. GB/T 24821-2009: Office panel partition system requirements, applicable for divider frame and panel structural performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
