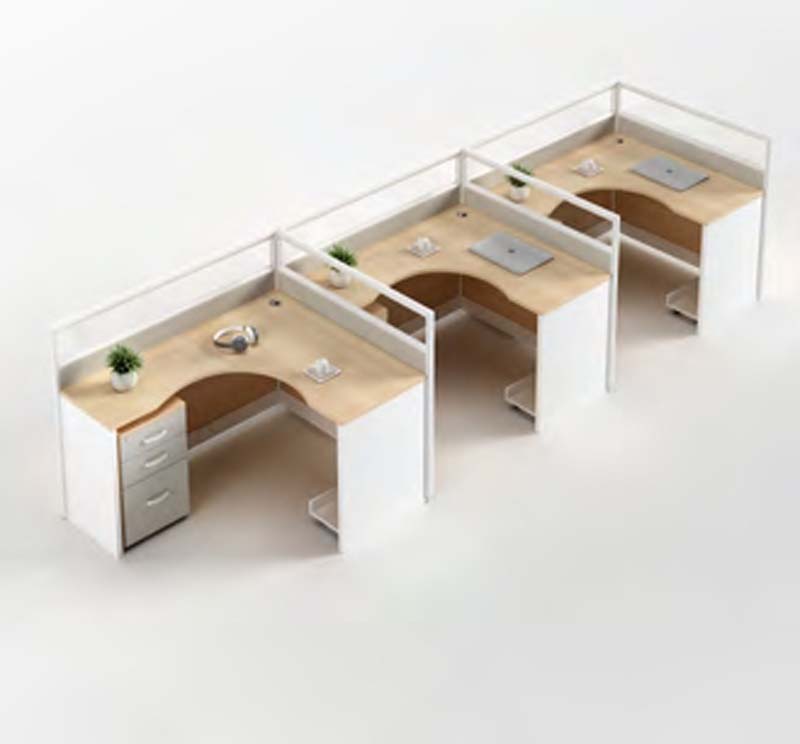

Product supplier3-Person Linear Modular Call Center Office Workstation Cluster, 25 mm E0-grade melamine-faced particle board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 4200 × 1400 × 1100 mm | |
|---|---|---|
| Overall cluster dimensions | 4200 x 1400 x 1100 mm | |
| Work surface height above floor | 750 mm | |
| Per-seat work surface width | 1400 mm | |
| Per-seat work surface depth | 1200 mm | |
| Knee clearance height under desk | 680 mm | |
| Knee clearance width per position | 700 mm | |
| Desktop panel thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Low divider height above work surface | 350 mm | |
| Steel frame tube wall thickness | 1.2 mm | |
| 3-drawer pedestal dimensions | 400 x 500 x 650 mm | |
| Under-desk CPU shelf dimensions | 300 x 500 x 150 mm | |
| Cable grommet diameter | 60 mm | |
| Modesty panel height | 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit net weight | 250 kg | |
|---|---|---|
| Desktop static uniform load capacity | 100 kg per seat | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Recommended maximum user weight per seat | 130 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Available color option count | 6 | |
| Commercial warranty period | 5 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface panel | 25 mm E0-grade melamine-faced particle board | |
|---|---|---|
| Desk edge banding | 2 mm thick PVC edge sealing | |
| Support frame and divider rails | 1.2 mm powder-coated white steel | |
| Pedestal and side panels | 18 mm melamine-faced MDF with white finish | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Under-desk CPU shelves | 0.8 mm powder-coated steel with white finish | |
| Cable grommets | ABS plastic round grommets with brushed silver finish | |
| Divider infill panels | White melamine-faced hardboard | |
| Drawer handles | Integrated recessed white PVC pulls | |
| Adjustable foot glides | Nylon base height-adjustable glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular cluster configuration | 3 staggered linear corner seats connected with standard knock-down connectors | |
|---|---|---|
| Cable management system | 60 mm desk grommets route cords to under-desk wire channels | |
| Integrated storage pedestal | Fixed left-end 3-drawer unit with two stationery drawers and one file drawer | |
| Under-desk CPU storage | Open metal shelves at each non-pedestal seat position | |
| Low open-rail dividers | 350 mm height screens provide minimal visual separation | |
| Curved kneehole openings | Rounded front edge cutouts at each seat | |
| Adjustable floor leveling | Threaded nylon glides on each support leg | |
| Scratch-resistant work surface | Melamine laminate finish resists spills and scuffs | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Call center open office layouts | High-density 3-seat cluster supports telemarketing and customer service teams | |
|---|---|---|
| Administrative staff work areas | Individual defined work zones suit clerical, data entry and administrative roles | |
| Startup co-working spaces | Modular design allows flexible reconfiguration as team sizes change | |
| Corporate back-office departments | Durable commercial construction withstands daily high-traffic office use | |
| Training and temporary project spaces | Knock-down assembly allows quick setup and repositioning for short-term projects | |
| Small business open plan offices | All-in-one cluster includes integrated storage and wire management |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Office furniture strength and stability | EN 527:2002 | |
|---|---|---|
| Formaldehyde emission from wood panels | EN 13986:2004 E1 grade | |
| Surface resistance to abrasion | EN 14323:2017 |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| Desk static load test | ANSI/BIFMA X2021 | |
|---|---|---|
| Storage unit performance | ANSI/BIFMA X2019 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Desktop panel formaldehyde emission | GB/T 18580E0 grade | |
|---|---|---|
| Metal frame coating adhesion | GB/T 9286Grade 1 | |
| Desk structural stability | GB/T 3324General technical requirements for wooden furniture | |
| Hardware durability test | GB/T 10357.5Furniture mechanical performance test |
Standardized tender description text
This product must meet the following technical requirements: 1. Desktop panel formaldehyde emission: GB/T 18580E0 grade; 2. Metal frame coating adhesion: GB/T 9286Grade 1; 3. Desk structural stability: GB/T 3324General technical requirements for wooden furniture; 4. Hardware durability test: GB/T 10357.5Furniture mechanical performance test; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
