PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1400 × 1100 mm
Overall footprint	1400 x 1400 x 1100 mm
Work surface height	750 mm
Seated knee clearance height	700 mm
Work surface depth	600 mm
Partition thickness	32 mm
Partition overall height	1100 mm
Worktop thickness	25 mm
Integrated storage cabinet dimensions	400 x 600 x 700 mm
Cable grommet diameter	60 mm
Knee recess width	1000 mm
Glass upper panel height	350 mm
Fabric lower panel height	600 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Product net weight	70 kg
Work surface static load capacity	100 kg
Lower cabinet shelf static load	25 kg
Recommended user weight capacity	150 kg
Surface abrasion resistance	2000 cycles
Standard warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm thick E1-grade melamine-faced particle board with 2mm PVC edge banding
Partition frame	Powder-coated dark gray aluminum alloy extrusion
Lower partition panels	Tackable fabric wrapped over high-density fiberboard core
Upper partition panels	5mm thick frosted tempered glass set in frame gaskets
Storage cabinet body	18mm thick white melamine-faced particle board with PVC edging
Drawer slides	Cold-rolled steel ball-bearing full-extension slides
Hardware and connectors	Zinc-plated and powder-coated steel fasteners, adjustable leveling feet
Cable grommet	ABS plastic round cable port with removable brush insert
Cabinet lock	Zinc alloy keyed cam lock with 2 keys per unit
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Corner grommet routes monitor, power and data cables from worktop to under-desk raceway
Storage security	Keyed lock secures top drawer and lower cabinet door to secure personal items
Privacy screening	1100mm tall partitions block seated cross-sightlines while allowing overhead light transmission
Modesty protection	Fabric lower partition panels block view of user legs from adjacent work areas
Leveling adjustment	Adjustable feet on partition posts compensate for uneven office flooring
Storage layout	1 top shallow utility drawer and 1 lower hinged door cabinet for office supplies and files
Panel tackability	Fabric lower partition surfaces accept push pins for posting notes and documents
Modular connection	Partition frame includes pre-drilled connection points to link to adjacent workstation units
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office areas	Provides individual seated privacy for staff in shared corporate office spaces
Call center and administrative work zones	Supports long-duration computer work with dedicated storage and cable management
Small business and startup offices	Modular design allows flexible layout expansion as team size grows
Government and institutional offices	Durable commercial construction meets high-traffic daily use requirements
Single-user dedicated workstations	L-shaped layout provides extended work surface for monitors, documents and peripherals
Office renovation projects	Neutral white and gray finish coordinates with most modern commercial interior palettes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Safety and strength requirements for office work desks
EN 1335-1:2020	Ergonomic dimensional guidance for office workstations
EN 1022:2018	Stability test method for seated office furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products safety and performance standard
ANSI/BIFMA X5.9-2019	Storage furniture performance and durability requirement

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to worktop and cabinet components
GB/T 3327-2018	Stability, strength and durability requirements for office desks
GB 18580-2017	Formaldehyde emission limit for wood-based panels, E1 grade requirement
GB/T 4897-2015	Performance requirements for particleboard used in furniture construction

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet components;
2. GB/T 3327-2018: Stability, strength and durability requirements for office desks;
3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, E1 grade requirement;
4. GB/T 4897-2015: Performance requirements for particleboard used in furniture construction;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LCW-1400-CORNER

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LCW-1400-CORNER

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LCW-1400-CORNEROpen Export Tool

Quick Actions

Post an RFQ

Product Description

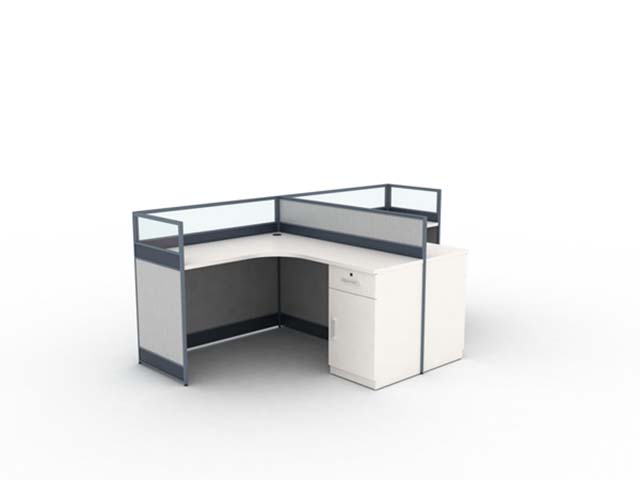

The single-person L-shaped cubicle office workstation desk (model LCW-1400-CORNER, unbranded) features a contemporary corner layout designed for dedicated individual work in shared environments. Its 1100mm tall privacy partitions pair lower tackable fabric panels over high-density fiberboard with upper frosted tempered glass set in a dark gray powder-coated aluminum extrusion frame, blocking seated cross-sightlines and views of users’ legs while permitting overhead light flow. The L-shaped work surface extends across the corner to accommodate monitors, documents and peripherals, finished in neutral tones that coordinate with most modern commercial interior palettes. The integrated storage unit attaches seamlessly within the footprint, supporting a streamlined layout without protruding into surrounding circulation space.
Built for commercial durability, the desk uses a 25mm E1-grade melamine-faced particle board worktop with 2mm PVC edge banding, supported by zinc-plated and powder-coated steel hardware. The integrated storage cabinet is constructed from 18mm white melamine-faced particle board with PVC edging, fitted with cold-rolled steel ball-bearing full-extension drawer slides, a zinc alloy keyed cam lock, and adjustable leveling feet on partition posts to compensate for uneven flooring. An ABS plastic round cable grommet with a removable brush insert sits at the corner to route monitor, power and data cables to the under-desk raceway. The fabric lower partition panels accept push pins for posting notes and documents, while the lockable storage includes a shallow top utility drawer and lower hinged door cabinet to secure personal items, office supplies and files.
This workstation is well suited for open-plan corporate office areas, call center and administrative work zones supporting long-duration computer work, small business and startup offices enabling flexible modular layout expansion, government and institutional offices with high-traffic daily use, single-user dedicated workspaces, and office renovation projects. When procuring, note that each unit ships across multiple cartons, requires on-site assembly, and carries a 5-year standard warranty. The unit supports appropriate static load capacities for routine office use, and its modular design allows teams to scale deployments alongside headcount growth without mismatched existing furnishing palettes.

Single-Person L-Shaped Cubicle Office Workstation Desk with Integrated Storage Specifications
