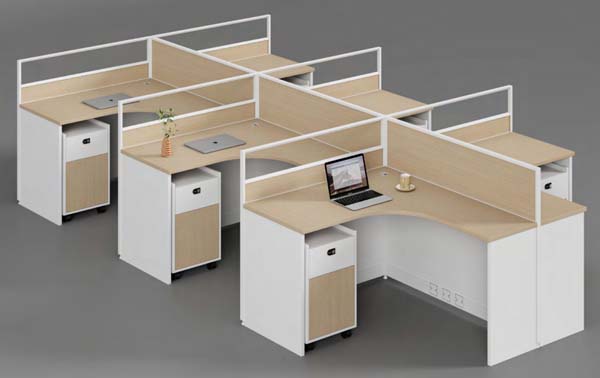

Product supplier6-Person Cross-Shaped Curved Office Cubicle Workstation Cluster with Locking Mobile Pedestals, 25mm E1 grade melamine-faced MFC with PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3600 × 3600 × 1100 mm | |
|---|---|---|
| Overall cluster footprint | 3600 x 3600 x 1100 mm | |
| Individual workstation surface size | 1200 x 1200 mm | |
| Work surface height from floor | 750 mm | |
| Privacy partition total height | 1100 mm | |
| Under-desk knee clearance height | 675 mm | |
| Knee clearance width per seat | 800 mm | |
| Work surface panel thickness | 25 mm | |
| Privacy divider panel thickness | 18 mm | |
| Modesty panel height | 400 mm | |
| Steel frame tubing thickness | 1.2 mm | |
| Cable grommet diameter | 60 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total cluster net weight | 320 kg | |
|---|---|---|
| Work surface static load capacity per seat | 120 kg | |
| Recommended maximum user weight per seat | 130 kg | |
| Mobile caster load rating per unit | 50 kg | |
| Drawer slide cycle rating | 50000 open/close cycles | |
| Surface scratch resistance rating | 2H pencil hardness | |
| Workstation configuration capacity | 6 seated office users | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E1 grade melamine-faced MFC with PVC edge banding | |
|---|---|---|
| Privacy divider panels | 18mm MDF core with light oak melamine veneer, white steel top rail | |
| Structural frame | 1.2mm thick white powder-coated square steel tubing | |
| Modesty panels | 18mm white melamine-faced MDF with integrated cable access ports | |
| Mobile pedestal cabinet body | 18mm E1 grade MFC with light oak and white two-tone finish | |
| Pedestal drawer slides | Zinc-plated 3-section steel ball-bearing full extension slides | |
| Pedestal casters | 50mm diameter black nylon swivel casters with brake locks | |
| Drawer locks | Integrated keyed cam locks on top pedestal drawer | |
| Edge banding | 2mm thick PVC edge sealing on all panel edges | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Integrated modesty panel cable ports and desktop grommets to route power/data cords | |
|---|---|---|
| Mobile storage | 3-drawer rolling pedestals with brake casters, lockable to secure personal office items | |
| Privacy screening | 1100mm high partial dividers to block seated line of sight between adjacent workstations | |
| Modular assembly | Shared-leg knock-down frame design that allows reconfiguration or expansion of cluster size | |
| Knee clearance access | Curved front work surface cutout to provide full seated leg room with 675mm vertical clearance | |
| Drawer operation | Full-extension ball-bearing slides that allow full access to drawer contents without binding | |
| Caster mobility | Swivel casters with locking brakes to secure pedestals in place during use or allow repositioning | |
| Locking mobile pedestal dimensions | 725 x 420 x 480 mm | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office areas | Suitable for 6-staff teams in corporate, finance or administration departments needing individual separated work zones | |
|---|---|---|
| Small business offices | Ideal for startup or SME workspaces requiring compact high-density seated desk arrangements | |
| Government and public institution offices | Durable modular configuration suitable for high-traffic long-term daily office use | |
| Shared co-working spaces | Can be reconfigured to provide fixed dedicated workstations for co-working members | |
| Call center work floors | Partial privacy dividers reduce visual distraction while maintaining open office accessibility | |
| Recommended supporting furniture | Pair with ergonomic mid-back office chairs, monitor arms and under-desk CPU holders for complete setup |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applicable to structural load verification | |
|---|---|---|
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to mobile pedestal construction | |
| EN 13722:2004 | Furniture caster performance and durability requirements, applicable to pedestal wheel testing |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1-2017 | Office desk structural durability and load testing standard for commercial workstation applications | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Mobile storage pedestal durability, stability and load performance standard | |
| ANSI/BIFMA X5.11-2015 | Office furniture caster rolling durability and load performance standard |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to all MFC/MDF panel components | |
|---|---|---|
| GB/T 3327-2016 | Performance standards for office desks and workstations, applicable to work surface load testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office panel materials | |
| GB/T 4897.3-2003 | Performance requirements for particleboard used in furniture structure, applicable to MFC core material |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to all MFC/MDF panel components; 2. GB/T 3327-2016: Performance standards for office desks and workstations, applicable to work surface load testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office panel materials; 4. GB/T 4897.3-2003: Performance requirements for particleboard used in furniture structure, applicable to MFC core material; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
