Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user capacity | 1 person | |
|---|---|---|
| Worktop distributed static load | 80 kg | |
| Pedestal drawer load per drawer | 15 kg | |
| Fixed pedestal vertical support load | 50 kg | |
| Screen stability load | Not designed as load-bearing panel | |
| Product net weight | 68 kg | |
| Floor adjustment range | 10 mm | |
| Suggested maximum monitor and equipment load | 35 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | 25 mm wood-based panel with light oak-look laminate and matching edge band | |
|---|---|---|
| Pedestal carcass | Melamine-faced wood-based panels in light oak and white finishes | |
| Drawer/door front | Laminated wood-based panel with integrated black lock and recessed pull area | |
| Support leg | White powder-coated square steel tube with floor glide | |
| Screen fabric | Grey woven textile upholstery over rigid panel core | |
| Upper screen infill | White hard panel with smooth wipe-clean surface | |
| Screen frame | Silver anodised or powder-coated aluminium extrusions with corner posts | |
| Modesty panels | Light grey rigid wood-composite or steel panels with dark lower trim | |
| Cable grommet | Round plastic or metal cable port with dark cover at inner desktop corner | |
| Levelling feet | White or grey polymer adjustable feet under pedestal and black glides on screens | |
| Internal drawer hardware | Steel drawer slides and lock linkage recommended for commercial use | |
| Panel joining hardware | Concealed steel connectors and aluminium post clamps |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

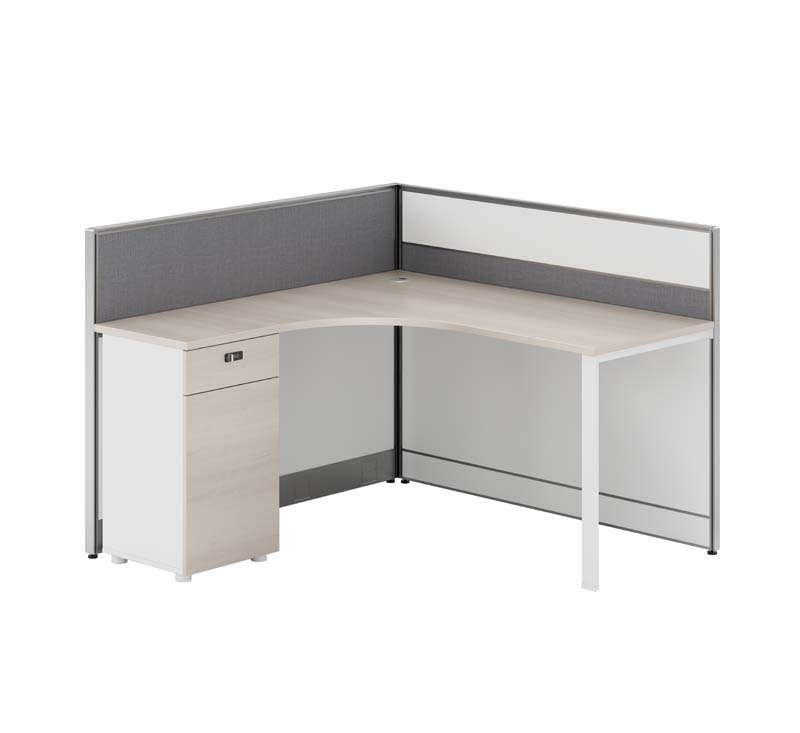

| L-shaped seated workflow | Two return surfaces form a corner workstation for computer work and document handling | |
|---|---|---|
| Integrated pedestal storage | Left-side fixed pedestal provides one shallow locking drawer above one tall storage compartment | |
| Central cable routing | Round desktop grommet directs monitor and power cables into the rear cable zone | |
| Privacy screening | Two connected fabric-and-panel dividers shield the rear and side sightlines | |
| Under-desk modesty screening | Solid lower panels conceal the leg area on both returns while leaving the central knee bay open | |
| Floor levelling | Adjustable glides align the worktop and stabilize screens on uneven office floors | |
| Fixed installation | Pedestal, metal leg and panel posts support the worktop as a knockdown office workstation | |
| Modular screen extension | Aluminium vertical posts allow connection to adjacent panel-based workstations | |
| Locking storage | Upper drawer lock is visible and suited to securing small personal or office items | |
| Cable management zone | Rear gap between desktop and screen creates a vertical channel for power and data cables | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suits staff workpoints where low dividers provide seated privacy while maintaining supervision | |
|---|---|---|
| Administrative workstation | Pedestal storage and dual return surfaces support paperwork, computer and reference materials | |
| Call-centre or shared office floor | Repeats efficiently in rows using aluminium screen posts and compact 1400 mm footprint | |
| Back-office processing area | Provides separate zones for monitor, keyboard, documents and locked personal storage | |
| Project or procurement layout | Can be grouped with matching panels to form clusters without full-height wall construction | |
| Manager-support workstation | Fits a single user needing more surface area than a straight desk but limited floor space |
EU Market Access Requirements* EN Standards
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
Standards applicable to China-market projects
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
