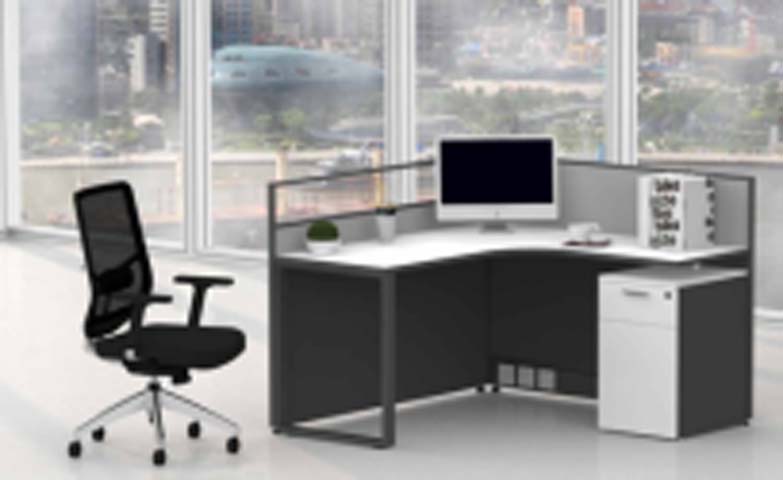

Single-User L-Shaped Open-Plan Office Workstation with Low Privacy Divider and Mobile Pedestal (model LWS-CORNER-1880-1880) is listed under L-Shaped Office Desk, with overall dimensions of 1880 × 1880 × 750 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: Open-plan,design,low-divider,privacy,cantilever,steel,support,under-desk,mobile,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall footprint | 1880 x 1880 x 750 mm | |
|---|---|---|
| Main worktop depth | 610 mm | |
| Return worktop depth | 610 mm | |
| Worktop thickness | 25 mm | |
| Edge band thickness | 2 mm | |
| Seated knee clearance height | 673 mm | |
| Knee well width at center opening | 1200 mm | |
| Privacy divider height above worktop | 450 mm | |
| Modesty panel height | 500 mm | |
| Steel support section size | 45 x 45 mm | |
| Steel wall thickness | 1.2 mm | |
| Cable grommet diameter | 60 mm | |
| Mobile pedestal dimensions | 400 x 500 x 650 mm | |
| Pedestal caster diameter | 50 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static desktop load capacity | 113 kg | |
|---|---|---|
| Drawer slide cycle rating | 50000 cycles | |
| Product net weight | 95 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worksurface | Thermally fused melamine laminate over particleboard core | |
|---|---|---|
| Support frame | Powder-coated cold-rolled square steel tubing | |
| Modesty panel | 18mm thick melamine-faced particleboard | |
| Privacy divider | Polyester acoustic fabric over 15mm MDF core | |
| Mobile pedestal | Powder-coated steel cabinet with lockable drawers | |
| Hardware | Zinc-plated steel fasteners, 60mm plastic cable grommets |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management | Dual desk grommets with under-desk routed channel for power/data cords | |
|---|---|---|
| Mobile pedestal | 2-drawer unit with 5 swivel casters (2 locking) for letter/legal file storage | |
| Adjustable leveling feet | 10mm height adjustment at frame base to compensate for uneven floors | |
| Privacy screen | Bracket-mounted low divider to reduce visual distraction in open offices |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office workstations | Low divider reduces visual distraction without full cubicle isolation | |
|---|---|---|
| Single-seat task work positions | Ergonomic dimensions for individual computer and document work |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables, safety and strength requirements for commercial desk products | |
|---|---|---|
| EN 527-2:2016 | Office work tables, dimensional requirements for ergonomic seated workstations | |
| EN 1335-2:2009 | Office chair safety requirements for paired task seating sold separately |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, for structural safety and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to included mobile filing pedestal |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to laminate top and panels | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to steel frame and pedestal | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to worktop and panel core material |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to laminate top and panels; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to steel frame and pedestal; 3. GB/T 4897.3-2003: Particleboard for furniture use, applicable to worktop and panel core material; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
