PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1650 × 1650 × 1100 mm
Overall workstation footprint	1650 x 1650 x 1100 mm
Work surface height	750 mm
Work surface thickness	50 mm
Partition panel height	1100 mm
Knee well vertical clearance	650 mm
Knee well width at curved cutout	700 mm
3-drawer hanging pedestal dimensions	400 x 600 x 650 mm
CPU shelf dimensions	300 x 500 mm
Upper translucent screen height	350 mm
Cable grommet diameter	60 mm
Lower partition panel height	750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Work surface static load capacity	100 kg/sq.m
Surface abrasion resistance	2000 cycles
Recommended user weight capacity	136 kg
Product net weight	95 kg
Warranty period	10 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	50mm thick melamine-faced chipboard (MFC) with PVC edge banding
Lower partition panels	18mm thick melamine-faced engineered wood with matte light wood finish
Partition frame	1.2mm thick white powder-coated steel rectangular tubing
Upper privacy screens	5mm thick frosted translucent acrylic panel
Drawer pedestal body	1.2mm thick cold-rolled steel with light grey powder-coated finish
Drawer handles	Zinc alloy with white epoxy finish, 120mm pull length
Adjustable feet	Nylon base with steel threaded stem, 15mm height adjustment
Cable grommet	ABS plastic with removable cover, brushed silver finish
CPU shelf	18mm thick melamine-faced MFC with white edge banding, supported by steel brackets
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Privacy partition system	Three-sided partial-height dividers block direct line of sight at seated height
Integrated storage pedestal	Three fixed hanging drawers lockable at top drawer for personal and file storage
Cable management	Rear desk grommet routes power and data cables from surface to floor
CPU storage shelf	Fixed lower right under-desk shelf elevates desktop tower off floor for ventilation
Curved knee well	Concave front cutout allows ergonomic seated access and chair tuck-in
Leveling adjustment	Threaded adjustable feet at each base leg correct for uneven office flooring
Drawer operation	Full-extension ball-bearing slides provide 100% access to drawer contents
Modular connectivity	Pre-drilled frame holes allow connection to adjacent cubicle units for cluster layouts
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open plan office spaces	Provides individual privacy without full-height wall construction
Small business and startup offices	All-in-one workstation with integrated storage reduces furniture piece count
Government and administrative work areas	Durable commercial construction supports daily long-term seated office work
Call center and shared office hubs	Modular frame allows grouping into multi-seat cubicle clusters as needed
Home office dedicated work zones	Compact footprint separates work area from living spaces in residential use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-2:2002+A1:2019	Safety and performance requirements for office work tables and desks
EN 1335-1:2020	Office chair dimensional compatibility for seated use at desk height
EN 1022:2018	Furniture seating and table stability testing for office use

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Performance standard for desk products, covers load and durability testing
ANSI/BIFMA X5.9-2019	Performance standard for office storage pedestals, covers drawer durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to desk and panel components
GB/T 3327-2020	Performance requirements for office desks, applicable to work surface load and stability
GB/T 24821-2009	Performance requirements for office panel screen furniture, applicable to partitions
GB 18584-2001	Formaldehyde emission limits for wooden furniture, mandatory for indoor office use

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and panel components;
2. GB/T 3327-2020: Performance requirements for office desks, applicable to work surface load and stability;
3. GB/T 24821-2009: Performance requirements for office panel screen furniture, applicable to partitions;
4. GB 18584-2001: Formaldehyde emission limits for wooden furniture, mandatory for indoor office use;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CUB-L1650-CURV-3D

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CUB-L1650-CURV-3D

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CUB-L1650-CURV-3DOpen Export Tool

Quick Actions

Post an RFQ

Product Description

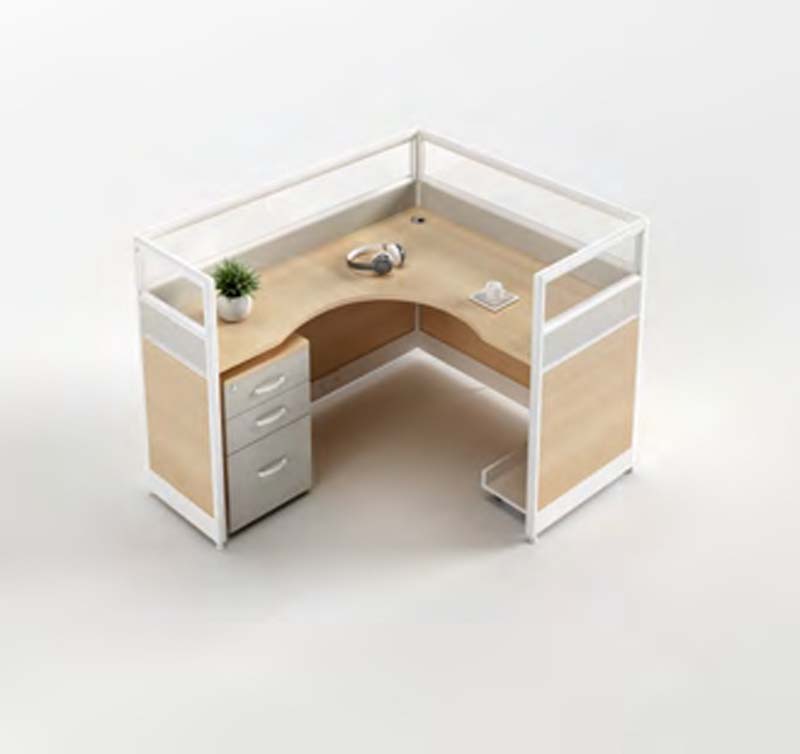

This unbranded single-person L-shaped corner cubicle office desk, model CUB-L165-CURV-3D, delivers a streamlined modern workstation solution for varied professional and residential work settings. The partial-height three-sided privacy divider system frames the L-shaped work surface, with matte light wood finished lower engineered wood panels paired with frosted translucent acrylic upper screens that block direct seated line of sight without creating visual enclosure. The 50mm thick melamine-faced chipboard work surface features a concave curved front cutout at the knee well, with PVC edge banding for durable wear protection. All framing uses 1.2mm thick white powder-coated steel rectangular tubing, paired with nylon adjustable feet fitted with steel threaded stems that offer 15mm of height correction to accommodate uneven flooring, supporting a clean, polished layout that balances open sightlines above divider height with personal workspace separation. The unit integrates a 400 x 600 x 650mm cold-rolled steel 3-drawer hanging pedestal positioned under the work surface, finished in light grey powder coat and fitted with zinc alloy white epoxy pull handles measuring 120mm in length. The top drawer includes a locking mechanism for secure storage of personal items and files, while full-extension ball-bearing drawer slides support 45kg per pair and are rated for 50,000 open-close cycles, providing full access to stored contents. Additional functional features include a rear brushed silver ABS cable grommet with a removable cover to route power and data cables neatly from the work surface to the floor, a fixed 300 x 500mm melamine-faced MFC CPU shelf mounted on steel brackets at the lower right under-desk position to elevate desktop towers for improved ventilation, and a 700mm wide knee well at the curved cutout with 650mm vertical clearance for comfortable ergonomic seating and easy chair tuck-in when not in use. The work surface supports a 100kg per square meter static load, with a 150kg maximum uniformly distributed top load, rated for 2000 cycles of surface abrasion resistance to hold up to regular daily office use, while the unit supports a maximum recommended user weight of 136kg. This workstation is suited for open plan offices where individual privacy is needed without full-height wall construction, small business and startup offices seeking to reduce total furniture piece counts with an all-in-one design, government and administrative work areas requiring durable commercial-grade construction for long-term daily use, call centers and shared office hubs that may group modular units into multi-seat cubicle clusters, and dedicated home office zones where its compact 1650 x 1650mm footprint clearly separates work areas from adjacent living spaces. Procurement teams and individual buyers should note the unit ships across multiple cartons with a total packaged gross weight of 180kg and 1 cubic meter of packaging volume, requiring 40 minutes of assembly time per set. The product carries a 10-year warranty, and its modular design allows flexible configuration to match evolving workspace layout needs.

Single-Person L-Shaped Corner Cubicle Office Desk with Privacy Screens and Integrated 3-Drawer Pedestal Specifications
