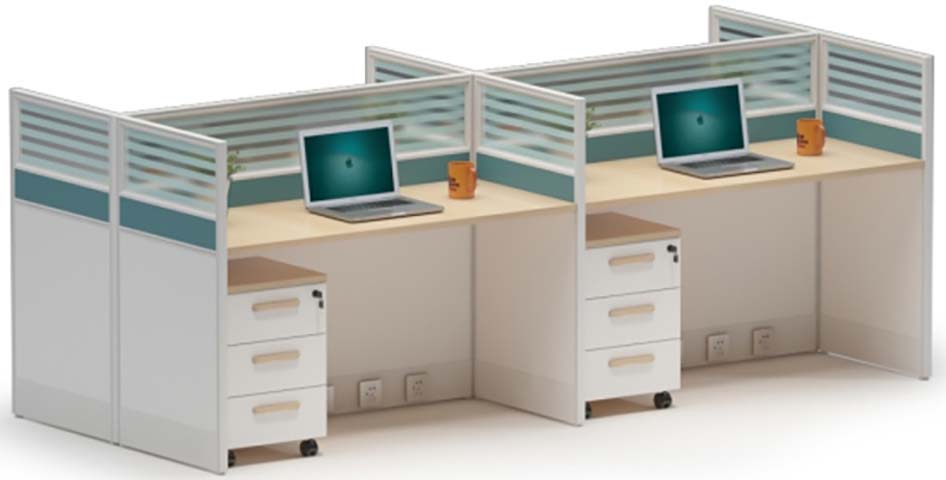

2-Person Cross-Shaped Modular Office Cubicle Workstation with Mobile Pedestals (model CUB-2P-CROSS-1500) is listed under L-Shaped Office Desk, with overall dimensions of 2400 × 1500 × 1200 mm and main material of Particle‑board (PB). Load capacity: 113 kg. Certifications: modular,furniture,frosted,privacy,partition,integrated,cable,management,mobile,under-desk,storage. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall workstation footprint | 2400 x 1500 x 1200 mm | |
|---|---|---|
| Per-seat L-shaped work surface size | 1200 x 600 mm | |
| Standard desktop working height | 750 mm | |
| Total partition height above floor | 1200 mm | |
| Frosted upper partition panel height | 450 mm | |
| Solid lower modesty panel height | 650 mm | |
| Partition panel thickness | 50 mm | |
| Desktop panel thickness | 25 mm | |
| Seated under-desk knee clearance height | 670 mm | |
| Per-seat knee clearance width | 600 mm | |
| 3-drawer mobile pedestal dimensions | 400 x 500 x 650 mm | |
| Desktop cable grommet diameter | 60 mm | |
| Caster diameter for mobile pedestals | 50 mm | |
| Aluminum partition frame edge strip thickness | 1.2 mm | |
| Integrated power socket mounting height | 120 mm above floor | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Static desktop load capacity per seat | 113 kg | |
|---|---|---|
| Mobile pedestal drawer static load per drawer | 25 kg | |
| Total workstation unit weight (fully assembled) | 165 kg | |
| Recommended maximum user weight per station | 150 kg | |
| Surface abrasion resistance rating | 2000 cycles | |
| Product warranty period | 3 years | |
| Available finish color options | 30 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface core and finish | 25mm E1-grade particleboard core with thermally fused melamine laminate finish, 1mm PVC edge banding | |
|---|---|---|
| Partition frame construction | 1.2mm thick extruded aluminum alloy frame with powder coated white finish | |
| Upper partition panels | 50mm thick frosted translucent polycarbonate panels with horizontal striped texture | |
| Lower modesty panels | 16mm thick melamine-faced MDF panels with teal accent strip and off-white base | |
| Mobile pedestal construction | 16mm thick melamine-faced particleboard body with matching light wood top, central locking system | |
| Support and hardware components | 1.5mm thick powder-coated steel desk support frames, 50mm nylon swivel casters (2 locking per pedestal) |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Cable management system | Integrated under-desk cable channels and desktop grommets route power and data cables from floor sockets to work surfaces | |
|---|---|---|
| Mobile pedestal storage | 3 lockable drawers per pedestal, mounted on swivel casters for flexible positioning under each desk, central lock secures all drawers | |
| Modular assembly system | Pre-fabricated partition and desk panels connect via integrated aluminum joinery for on-site assembly and future reconfiguration | |
| Floor leveling system | Adjustable leveling feet at desk frame bases compensate for uneven floor surfaces to keep work surfaces stable |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides semi-private individual workstations in open floor plans to reduce visual distraction between adjacent staff | |
|---|---|---|
| Small business and startup offices | Scalable modular design fits small team layouts with flexible reconfiguration as team size changes |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desktop load and structural stability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture office chairs dimensional reference, applicable to under-desk clearance dimensions | |
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable to mobile pedestal drawer performance |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products standard, applicable to desktop load, stability and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to mobile pedestal drawer load and caster durability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk and pedestal panel construction quality | |
|---|---|---|
| GB/T 35607-2017 | Limit of harmful substances for office furniture, applicable to formaldehyde emission requirements for board materials | |
| GB/T 14531-2017 | Office furniture work desks and tables, applicable to dimensional and structural stability requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to desk and pedestal panel construction quality; 2. GB/T 35607-2017: Limit of harmful substances for office furniture, applicable to formaldehyde emission requirements for board materials; 3. GB/T 14531-2017: Office furniture work desks and tables, applicable to dimensional and structural stability requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
