PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Workstation desktop distributed load	60 kg
Tall cabinet total load	40 kg
Drawer load rating	15 kg
Task chair maximum user weight	120 kg
Chair net weight	11 kg
Seating count	1 person
Desktop user layout	1 user with lateral storage return
Caster rolling durability	40,000 cycles
Gas-lift cycling durability	100,000 cycles
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Desktop and wood cabinetry	Melamine-faced wood-based panels with oak-look worktop and drawer faces, sealed edge banding
Storage exterior panels	White melamine-finished panels on tower side, right modesty support and base plinth
Privacy screen	Fabric-covered or laminate-faced lower panel with slatted translucent upper insert and silver metal frame
Cabinet hardware	Curved silver pull, drawer lock cylinder and hinges or slide fittings in zinc-alloy or steel look
Task chair back	Green flexible mesh in a black polymer outer frame with gray lumbar support grid
Task chair seat	Black upholstered padded cushion over molded seat shell, likely fabric or bonded textile

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic class 3 lift with under-seat lever, 100 mm adjustment stroke to a maximum seat height of 540 mm
Swivel and mobility	360-degree swivel seat on five twin-wheel casters with 620 mm base diameter
Back and seat tilt	Conventional center-tilt mechanism with tension lever and upright-to-recline travel to a 12-degree maximum lock angle
Fixed arm support	Closed-loop fixed armrests provide 230 mm forearm support height and do not include width, height or pivot adjustment

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total gross weight	95 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Individual open-plan office seat	Suits a one-person clerical, administrative or reception-back-office station because the divider, L-shaped top and integrated storage separate work and storage zones.
Small private office or project room	Works where a laptop, documents and personal files are used together, with the mobile task chair providing swivel access between return and main desk.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · WS-L1400-OC-G01 Bundle

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · WS-L1400-OC-G01 Bundle

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · WS-L1400-OC-G01 BundleOpen Export Tool

Quick Actions

Post an RFQ

Product Description

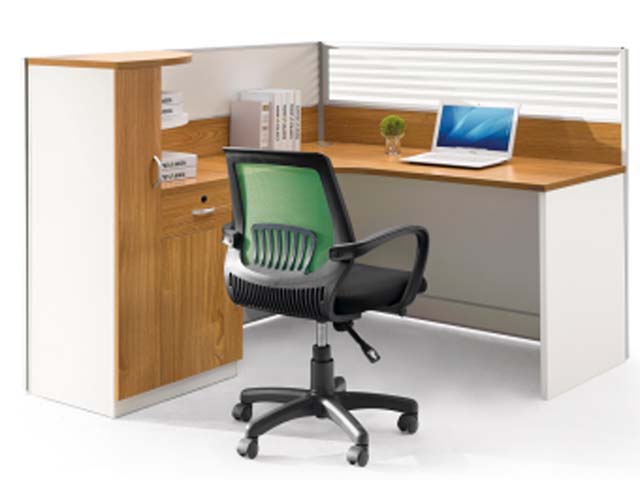

The L-Shaped Panel Workstation with Green Mesh Task Chair, model WS-L1400-OC-G01 Bundle, is an unbranded office seating and desk package configured for one user. Its L-shaped desktop combines a main work surface with a lateral storage return, creating a clear division between active workspace and filing or reference areas. An attached privacy screen brings a defined, semi-enclosed feel to an open plan, while the oak-look worktop and drawer faces are paired with white melamine-finished storage panels for a balanced commercial appearance. The screen uses a fabric-covered or laminate-faced lower panel, a slatted translucent upper insert, and a silver metal frame. The green mesh task chair provides a distinct color accent against black and gray seating components. Construction centers on melamine-faced wood-based panels with sealed edge banding. The desk top is 50 mm thick, and the support uses an 80 mm main section with a 2 mm metal wall. Each main seat position has 680 mm of knee clearance height and 900 mm of width. The tower side, right modesty support, and base plinth use white melamine panels, while hardware includes a curved silver pull, a drawer lock cylinder, and zinc-alloy or steel-look hinges and slide fittings. The chair combines a green flexible mesh back in a black polymer outer frame, a gray lumbar support grid, a black upholstered padded seat over a molded shell, and steel and nylon components. Practical features include integrated storage, a lockable drawer, cable management, and a mobile swivel chair. The desk has an 80 mm diameter cable opening and a cable tray with 120 mm depth. The workstation supports a 60 kg distributed desktop load, the tall cabinet supports 40 kg, and each drawer is rated for 15 kg. The chair uses a class 3 pneumatic lift with a 100 mm adjustment stroke and a maximum seat height of 540 mm. It offers 360-degree swivel movement, five twin-wheel casters, a 620 mm base diameter, a center-tilt mechanism with tension control, and a 12-degree maximum lock angle. Fixed closed-loop armrests give 230 mm of forearm support height without adjustment. The chair is rated for a maximum user weight of 120 kg and weighs 11 kg. This bundle is suited to individual open-plan office seats, clerical or administrative workstations, reception back-office areas, small private offices, and project rooms where laptop work, documents, and personal files are used together. Procurement teams should plan for integrated assembly and storage placement, note that the package is supplied as a bundle with the task chair, and allow for receiving, lifting, and installation logistics associated with the workstation cartons. The reference assembly time is 40 minutes per set.

L-Shaped Panel Workstation with Green Mesh Task Chair Specifications
