Name: Single-Person L-Shaped Curved Corner Office Cubicle Workstation Desk
Brand: KANAITE
SKU: LWE69G

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1400 × 1400 × 1200 mm
Overall footprint (with partitions)	1400 x 1400 x 1200 mm
Work surface height	750 mm
Fabric partition height	1200 mm
Partition panel thickness	70 mm
Knee clearance width (curved front)	800 mm
Under-desk knee clearance height	650 mm
3-drawer pedestal dimensions	400 x 550 x 650 mm
Work surface thickness	25 mm
Right metal support leg diameter	60 mm
CPU shelf dimensions	300 x 500 mm
Cable grommet diameter	60 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Desktop static load capacity	113 kg
Recommended user weight capacity	136 kg
Surface abrasion resistance	2000 cycles
Warranty period	8 years
Available finish color count	30
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25mm E1 grade MFC board with melamine laminate finish
Privacy partition panels	Fabric-upholstered panels over particleboard core
Partition frame	Powder-coated aluminum extrusion frame
3-drawer pedestal body	18mm engineered wood with matching melamine finish
Drawer hardware	Zinc-alloy curved handles, ball-bearing silent drawer slides
Support structure	Powder-coated steel cylindrical leg, steel support brackets
CPU shelf	18mm engineered wood shelf on steel sliding glides
Levelling feet	Nylon-padded adjustable steel feet
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cable management	Two 60mm surface grommets for routing power/data cables
Storage configuration	Integrated left-side 3-drawer pedestal for office supplies/filing
CPU storage	Sliding pull-out CPU platform shelf under right work surface
Privacy screening	Two perpendicular 1200mm tall fabric partitions
Levelling adjustment	Adjustable nylon feet on all ground contact points
Modular connection	Aluminum partition frame compatible with multi-station cubicle configurations
Drawer operation	Smooth ball-bearing slides with full 3/4 extension for lower drawers
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office single-person workstations	Provides dedicated private work space with visual privacy screening for staff
Small business and startup office layouts	Compact L-shape fits corner spaces to maximize limited floor area
Administrative and clerical staff use	Integrated storage and cable management supports daily computer and paperwork tasks
Modular office expansion projects	Compatible with connecting additional identical stations to create multi-person cubicle banks
Home office professional setups	Durable commercial-grade construction supports full-time remote work use
Call center and back-office environments	Mid-height partitions reduce noise and visual distraction between adjacent workers

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 527-1:2011	Office worktables safety and strength requirements, applies to work surface structural performance
EN 1335-1:2000	Office chair ergonomic dimensional requirements, applies to knee clearance compatibility
EN 1022:2018	Furniture seating stability test, applies to chair use at the desk knee opening
EN 71-3:2019	Migration of certain elements, applies to painted and coated metal component safety

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.5-2021	Desk products performance standard, applies to desktop static load and durability
ANSI/BIFMA X5.1-2017	Office chairs standard, applies to dimensional compatibility with seated user space
ANSI/BIFMA X5.9-2019	Storage pedestals performance standard, applies to drawer load and slide durability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden office furniture, applies to desktop and pedestal components
GB/T 35607-2017	Limit of harmful substances in office furniture panels, applies to E1-grade board materials
GB/T 10357.1-1989	Furniture mechanical performance test for tables, applies to desktop static load testing
GB 28007-2011	Office furniture screen partition safety requirements, applies to cubicle divider structure

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden office furniture, applies to desktop and pedestal components;
2. GB/T 35607-2017: Limit of harmful substances in office furniture panels, applies to E1-grade board materials;
3. GB/T 10357.1-1989: Furniture mechanical performance test for tables, applies to desktop static load testing;
4. GB 28007-2011: Office furniture screen partition safety requirements, applies to cubicle divider structure;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · L-CUB-1400-3DRW-CPU

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · L-CUB-1400-3DRW-CPU

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · L-CUB-1400-3DRW-CPUOpen Export Tool

Quick Actions

Post an RFQ

Product Description

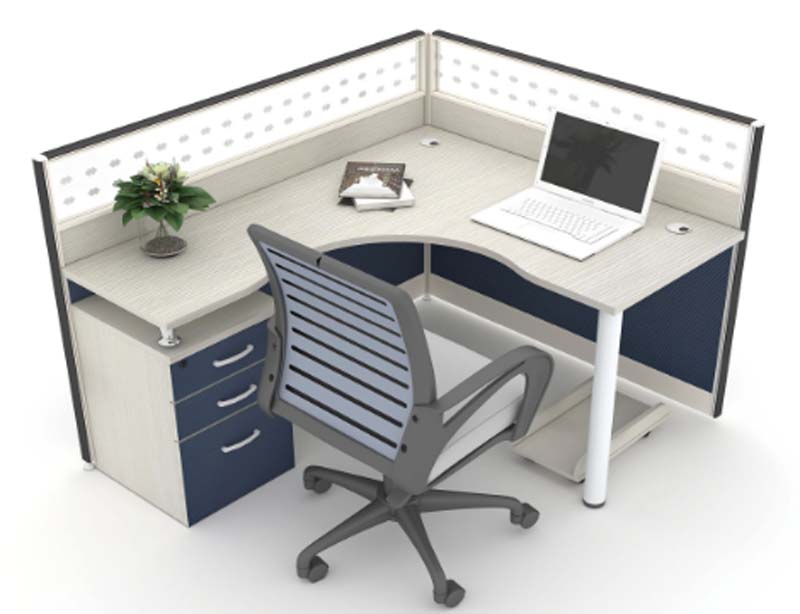

The KANAITE model L-CUB-1400DRW-CPU is a single-person L-shaped curved corner office cubicle workstation desk, designed for functional, space-efficient work area allocation. It features a curved front corner layout paired with two perpendicular, navy blue fabric-upholstered privacy partitions finished with a light wood grain work surface, creating a defined, semi-enclosed individual work zone that maintains open sightlines above partition height while blocking immediate visual distraction between adjacent users. The overall footprint with partitions is 1400 x 1400 x 1200 mm, with a standard 750 mm work surface height, 1200 mm tall partition panels of 70 mm thickness, 800 mm wide curved front knee clearance, and 650 mm of under-desk vertical knee space for comfortable seated positioning. The work surface is 25 mm thick E1 grade MFC board with melamine laminate, mounted on powder-coated steel cylindrical legs and steel support brackets, with nylon-padded adjustable steel levelling feet at all ground contact points to stabilize placement on uneven floors. Privacy panels are built on a particleboard core, held within a powder-coated aluminum extrusion frame designed to connect to identical units for multi-station configurations. The integrated left-side 3-drawer pedestal is constructed from 18mm engineered wood with a matching melamine finish, fitted with zinc-alloy curved handles and ball-bearing silent slides that allow 3/4 extension for lower drawers, sized at 400 x 550 x 650 mm to hold office supplies and filing materials. A sliding pull-out CPU shelf made of 18mm engineered wood with steel glides sits under the right work surface, while two 60mm cable grommets on the work surface route power and data cables for a tidy setup. The desk supports a 113 kg static load on the work surface, 136 kg recommended user weight capacity, 2000 cycles of surface abrasion resistance, and comes with an 8-year warranty, with 30 available finish colors to align with interior design schemes. It is well-suited for open-plan office single-person workstations, small business and startup layouts that leverage corner space to maximize limited floor area, administrative and clerical work zones, modular office expansion projects building multi-person cubicle banks, professional home office setups for full-time remote work, and call center or back-office environments where mid-height partitions reduce cross-station distraction. For procurement, note that each unit ships in 2 cartons with 0.8 m³ packaged volume and 120 kg gross weight, requires 40 minutes of assembly per set, and uses M6-M10 connectors with at least 2 fixing points at major joints to ensure structural integrity when linking multiple stations.
