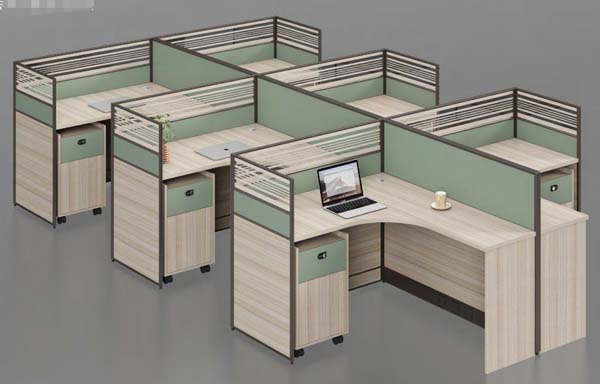

Product supplier6-Seat F-Shaped Modular Office Cubicle Workstation with Mobile Pedestals, 25mm E1 grade melamine-faced chipboard with PVC edge banding
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3200 × 2800 × 1200 mm | |
|---|---|---|
| Overall cluster dimensions | 3200 x 2800 x 1200 mm | |
| Standard work surface height | 750 mm | |
| Per-seat L-shaped worktop size | 1400 x 1400 mm | |
| Worktop thickness | 25 mm | |
| Partition panel total height | 1200 mm | |
| Partition panel thickness | 40 mm | |
| Seated knee clearance height under worktop | 680 mm | |
| Per-seat mobile pedestal dimensions | 725 x 420 x 480 mm | |
| Slatted upper vented partition section height | 300 mm | |
| Solid lower partition section height | 900 mm | |
| Caster diameter on mobile pedestals | 50 mm | |
| Steel partition frame profile thickness | 1.5 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total workstation net weight | 480 kg | |
|---|---|---|
| Per-seat worktop static load capacity | 120 kg | |
| Seating capacity | 6 users | |
| Melamine surface scratch resistance | 2000 cycles | |
| Product commercial warranty | 5 years | |
| Available finish color options | 2 finishes | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface construction | 25mm E1 grade melamine-faced chipboard with PVC edge banding | |
|---|---|---|
| Partition panel lower section | Fabric-laminated MDF core with sage green finish | |
| Partition panel upper slatted section | Powder-coated steel slat grille with matching frame | |
| Structural partition framing | 1.5mm thick powder-coated black steel | |
| Mobile pedestal body and drawer fronts | 18mm melamine-faced chipboard with light wood body, sage green drawer front | |
| Mobile pedestal casters | 50mm black nylon swivel casters, two with locking function | |
| Drawer handles and locks | Black ABS plastic integrated pull handles with keyed cam locks | |
| Edge banding for all panel components | 2mm thick PVC matching worktop and panel finish | |
| Cable management components | ABS plastic cable grommets and under-desk wire raceways | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular cluster layout | 6 connected L-shaped individual workstations arranged in a cross F-pattern | |
|---|---|---|
| Partition privacy design | 1200mm tall panels with upper slatted vent section balancing sightline privacy and air circulation | |
| Per-seat mobile storage | 2-drawer rolling pedestal positioned under each work surface for personal filing and supply storage | |
| Cable management system | Integrated recessed cable grommets at each work corner with under-desk raceways for power and data routing | |
| Pedestal mobility | Swivel casters allow pedestals to be pulled out for access or repositioned within the workstation footprint | |
| Knee clearance access | Curved inner worktop corner provides unobstructed seated leg room at each position, cutout for ergonomic entry | |
| Modular reconfiguration capability | Bolt-together connector posts allow disassembly, re-layout or expansion of the workstation cluster | |
| Surface protection features | Stain, water and scratch resistant melamine finish for easy daily cleaning in high-traffic office use | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office staff zones | Suitable for 6-person team work areas in corporate offices, balancing privacy and collaboration | |
|---|---|---|
| Call center and customer support floors | Dense, space-efficient seating with individual work surfaces for phone and computer-based work | |
| Startup and co-working shared spaces | Modular layout supports fixed team seating with reconfiguration flexibility as headcount changes | |
| Educational institution staff offices | Durable commercial grade construction suitable for daily long-term use by administrative staff |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to work surface load and stability | |
|---|---|---|
| EN 1335-1:2020 | Office furniture office work chair dimensions, referenced for matching knee clearance and seat fit | |
| EN 717-1:2004 | Formaldehyde emission determination for wood panels, E1 class compliance recommended |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, recommended for worktop load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to mobile pedestal drawer and caster durability |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to worktop and cabinet panel construction | |
|---|---|---|
| GB/T 3325-2017 | Test methods for metal furniture, applicable to steel partition frame structural performance | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for panel components | |
| GB/T 4897.3-2003 | Particleboard specification for furniture use, applicable to MFC worktop and pedestal cores |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to worktop and cabinet panel construction; 2. GB/T 3325-2017: Test methods for metal furniture, applicable to steel partition frame structural performance; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for panel components; 4. GB/T 4897.3-2003: Particleboard specification for furniture use, applicable to MFC worktop and pedestal cores; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
