Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Finished Top Thickness | 50 mm | |
|---|---|---|
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed desktop static load | 80 kg | |
|---|---|---|
| Fixed pedestal top load | 40 kg | |
| Drawer static load | 15 kg per drawer | |
| Open shelf storage load | 10 kg per shelf | |
| Seating capacity | 2 users | |
| Leveling adjustment | 10 mm | |
| Suggested occupant weight limit | 120 kg per seat | |
| Hardware cycle target | 50,000 drawer cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Desktop substrate | 25 mm melamine-faced particleboard with sealed edges | |
|---|---|---|
| Desktop finish | Low-gloss wear-resistant melamine laminate | |
| Divider lower panel | Fabric-look or textured gray composite panel | |
| Upper divider screen | Translucent slatted polycarbonate or acrylic louver panel | |
| Divider framework | Powder-coated steel or aluminum square posts and rails | |
| Under-desk modesty panels | Melamine-faced board panels with dark gray kick strips | |
| Fixed pedestal body | Melamine-faced board cabinet carcass | |
| Drawer front | Gray textured drawer face with integrated lock and label area | |
| Edge protection | PVC or ABS impact-resistant edge banding | |
| Leveling feet | Nylon-base adjustable glides with steel threaded stems | |
| Fastening hardware | Cam bolts, connecting brackets and steel corner joints | |
| Cable grommet | Plastic round desk grommet with removable cap |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.

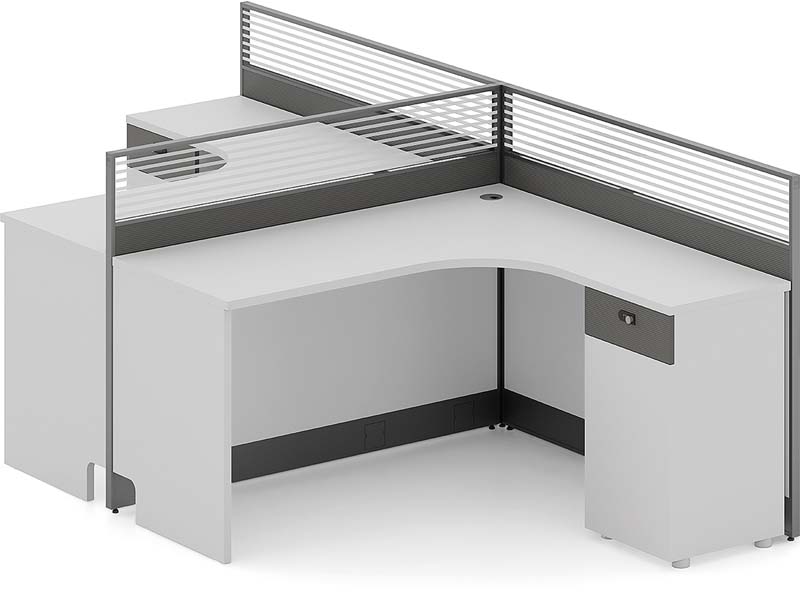

| Workstation configuration | Two-person back-to-back L-shaped cluster sharing central corner divider posts | |
|---|---|---|
| Privacy separation | Opaque lower screen blocks seated sightlines while slatted upper section preserves light | |
| Cable management | Desktop grommet feeds monitor and power cables into the under-desk corner zone | |
| Integrated storage | Right-side fixed pedestal provides at least one lockable top drawer and lower enclosed storage | |
| Opposing storage support | Left under-desk cabinet or fixed modesty support creates the second workstation bay | |
| Floor leveling | Threaded glides at cabinet and panel bases compensate for uneven carpet or tile floors | |
| Modular expansion | Post-and-rail divider system can connect additional straight or L-shaped workstations | |
| Locking control | Keyed lock secures the visible pedestal drawer for personal office storage | |
| Seated access | Curved desktop front creates knee clearance and chair pull-up space at each work position | |
| Screen ventilation and visibility | Horizontal slats reduce visual enclosure while allowing air and light passage | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total packaging volume | 0.62 m3 | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan office | Suits two-person clerical or administrative clusters where low screens provide privacy without blocking supervision | |
|---|---|---|
| Call center or shared service area | Repeatable module allows dense rows while the louvered screen preserves light and airflow | |
| Administrative department | Integrated lockable pedestal supports personal documents, stationery and small personal items | |
| Project team workspace | Two adjacent users can collaborate around the shared corner while retaining separate writing surfaces | |
| Procurement pilot installation | Suitable as a standardized cluster for bids requiring desktop, screen, cable port and storage in one SKU | |
| Carpeted or raised-floor office | Adjustable glides help align panels over carpet tile, leveling pads or minor floor irregularities | |
| IT-connected workstations | Grommet and under-desk corner cavity support monitor power, network and peripheral cable routing |
EU Market Access Requirements* EN Standards
| EN 527-1 applicability | Office work tables safety, strength and durability requirements | |
|---|---|---|
| EN 527-2 safety and dimensional suitability | Seated desk height, leg clearance and stability requirements for office work tables | |
| EN 16139 applicability | Strength, durability and safety requirements for non-domestic seating-area furniture links and storage supports | |
| EN 1022 applicability | Stability test basis for furniture subject to normal office loading |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5 applicability | Vertical and horizontal load, fatigue and stability tests for desk products | |
|---|---|---|
| ANSI/BIFMA X5.9 applicability | Storage performance tests for drawers, doors, locks, shelves and stability | |
| ANSI/BIFMA e3 level applicability | Sustainable furniture criteria covering materials, energy, human health and social responsibility |
Standards applicable to China-market projects
| GB/T 3324-2024 applicability | General technical requirements for wooden furniture, suitable for board desktop and cabinet acceptance | |
|---|---|---|
| GB/T 3325-2017 applicability | Metal furniture technical requirements covering steel supports, rails and coating quality | |
| GB 18580-2017 applicability | Formaldehyde emission requirement for wood-based panels used in desktops and cabinets | |
| GB/T 10357.5-2013 applicability | Furniture surface physicochemical test for coating resistance and durability |
This product must meet the following technical requirements: 1. GB/T 3324-2024 applicability: General technical requirements for wooden furniture, suitable for board desktop and cabinet acceptance; 2. GB/T 3325-2017 applicability: Metal furniture technical requirements covering steel supports, rails and coating quality; 3. GB 18580-2017 applicability: Formaldehyde emission requirement for wood-based panels used in desktops and cabinets; 4. GB/T 10357.5-2013 applicability: Furniture surface physicochemical test for coating resistance and durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
