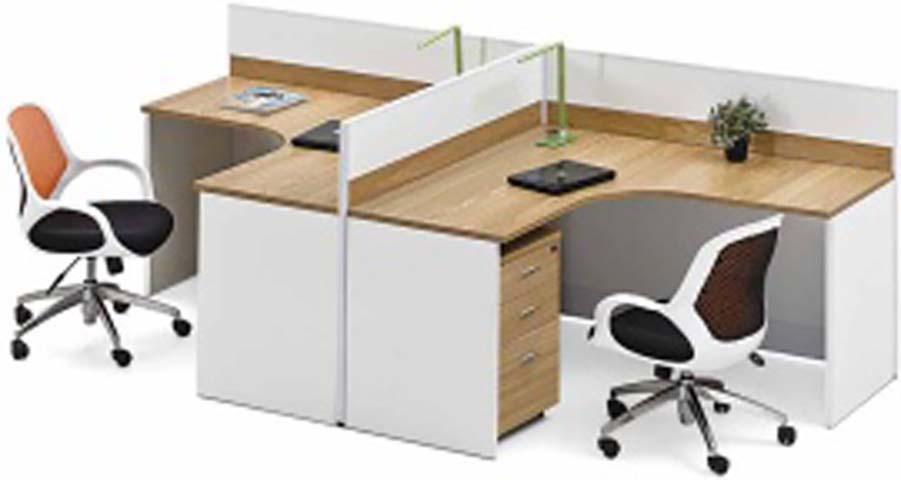

2-Person L-Shaped Office Workstation Cluster with Privacy Dividers and Integrated Drawers (model WS-L2-OW750) is listed under L-Shaped Office Desk, with overall dimensions of 2050 × 1600 × 1200 mm and main material of Particle‑board (PB). Load capacity: 120 kg. Certifications: Modern,style,L-shaped,cluster,layout,privacy,divider,panels,integrated,drawer,storage,curved,knee,cutouts. This page consolidates 6 groups of specifications and GB / EN / ANSI/BIFMA standard references, with metric and imperial units. 1 supplier(s) are listed and you can request a quote online.
| Time | Field | Original Value | Corrected Value | Note / Status |
|---|---|---|---|---|
No correction records yet. Found an error? Click the flag at the end of a row to report it. | ||||
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall cluster footprint | 2050 x 1600 x 1200 mm | |
|---|---|---|
| Work surface height | 750 mm | |
| Individual worktop depth | 600 mm | |
| Worktop thickness | 25 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width | 700 mm | |
| Privacy divider height | 450 mm above worktop | |
| Privacy divider thickness | 25 mm | |
| Integrated drawer pedestal width | 400 mm | |
| Drawer pedestal depth | 500 mm | |
| Drawer pedestal height | 600 mm | |
| Modesty panel thickness | 16 mm | |
| Edge banding thickness | 2 mm | |
| Metal support frame section | 60 x 30 x 1.2 mm | |
| Cable grommet diameter | 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Worktop static load capacity | 120 kg | |
|---|---|---|
| Total workstation gross weight | 185 kg | |
| Seating capacity | 2 users | |
| Drawer slide cycle rating | 50000 cycles | |
| Surface abrasion resistance | 500 Taber cycles | |
| Limited warranty period | 1 year | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Worktop panels | 25mm E1 grade melamine-faced particleboard with 2mm PVC edge banding | |
|---|---|---|
| Cabinet and modesty panels | 16mm white melamine-faced particleboard with matching edge banding | |
| Privacy dividers | 25mm matte white laminated particleboard panels | |
| Support frame | 1.2mm thick powder-coated steel rectangular tube | |
| Drawer slides | Cold-rolled steel 3-section full-extension ball bearing slides | |
| Cable management components | ABS plastic grommets with removable caps, PVC cable raceways |
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Adjacent L-shaped corner cluster with two separated seated positions | |
|---|---|---|
| Storage configuration | Integrated 3-drawer pedestal per workstation for stationery and file storage | |
| Knee access | Curved front cutout at each work position for comfortable seated legroom | |
| Cable management | Desk surface cable grommets paired with under-desk cable trays |
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides separated individual work zones for two staff without high blocking partitions | |
|---|---|---|
| Small startup and team offices | Compact L-shaped footprint fits corner spaces to maximize usable floor area |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable to structural stability and load testing | |
|---|---|---|
| EN 1335-1:2020 | Office furniture workstations dimensional and safety guidelines for seated use, applicable to ergonomic dimensions | |
| EN 14372:2004 | Office furniture storage units safety and strength requirements, applicable to drawer pedestal components |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to static load, cycle and stability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to drawer slide and cabinet durability testing |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel worktops and cabinet components | |
|---|---|---|
| GB/T 3327-2023 | Performance requirements for office desks and workstations, applicable to structural load and stability testing | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard components |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to panel worktops and cabinet components; 2. GB/T 3327-2023: Performance requirements for office desks and workstations, applicable to structural load and stability testing; 3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, applicable to E1 grade particleboard components; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
