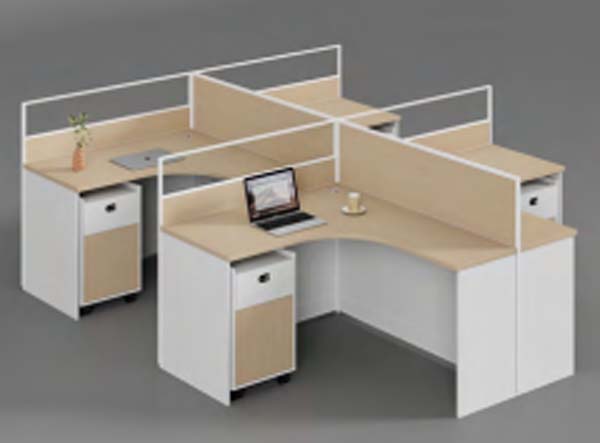

Product supplier4-Person Cross-Cluster Curved Modular Office Cubicle Workstation with Lockable Mobile Pedestals, 25mm E0-grade melamine-faced particle board
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2820 × 2420 × 1100 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total unit static load capacity | 400 kg | |
|---|---|---|
| Worksurface distributed static load | 100 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Total unit net weight | 260 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Caster load rating per pedestal | 50 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Standard warranty period | 5 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Work surface | 25mm E0-grade melamine-faced particle board | |
|---|---|---|
| Worktop edge banding | 2mm impact-resistant PUR/PVC edge trim | |
| Divider frame | 1.2mm wall thickness extruded aluminum alloy with white powder coat | |
| Divider infill panel | 40mm fabric-covered fiberboard with light beige finish | |
| Structural side panels | 16mm melamine-faced engineered wood in white finish | |
| Mobile pedestal drawer fronts | Two-tone melamine-faced engineered wood matching worktop color | |
| Drawer hardware | Zinc alloy locks, steel ball-bearing slides | |
| Pedestal casters | 50mm diameter black PP swivel casters, 2 with locking brake | |
| Cable management channel | PVC integrated raceway inside dividers for separated power/data cabling | |
| Fasteners and connectors | Zinc-plated steel corrosion-resistant hardware | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Workstation layout | Cross-shaped clustered arrangement providing 4 individual L-shaped curved work positions | |
|---|---|---|
| Privacy screening | Perimeter dividers with open top rails block direct line of sight between adjacent seats | |
| Under-desk storage | One lockable 3-drawer mobile pedestal per seat, movable on casters for flexible positioning | |
| Cable management | Integrated internal raceways in dividers route power and data cables separately to each work position | |
| Top rail accessory mounting | Upper white metal rails support monitor arms, document holders or privacy accessories | |
| Pedestal mobility | Locking casters on each pedestal allow repositioning and secure fixed placement when needed | |
| Drawer security | Integrated key lock on each mobile pedestal secures personal documents and office supplies | |
| Modular reconfiguration | Panelized frame design supports future reconfiguration of cluster size or layout | |
| Grommet access | Worksurface cable grommets allow neat routing of device cables from surface to under-desk raceways | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open plan office spaces | Provides divided individual work zones to reduce visual distraction in shared offices | |
|---|---|---|
| Call center and customer service floors | Compact 4-person cluster layout supports high-density staff deployment with personal storage | |
| Startup and small business offices | Pre-configured cluster reduces fit-out time and delivers consistent workspace for small teams | |
| Administrative and back-office departments | Integrated storage and cable management supports daily paperwork and computer-based tasks | |
| Temporary project team spaces | Modular construction allows reconfiguration as team sizes and project needs change | |
| Co-working shared offices | Dedicated locked storage and partitioned privacy suit short-term and long-term dedicated desk users |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office worktables – Safety, strength and durability requirements for work surfaces | |
|---|---|---|
| EN 1335-2:2018 | Office work seating safety requirements applicable for use at the workstations | |
| EN 14073-2:2004 | Office storage furniture – Safety requirements for mobile pedestals | |
| EN 71-3:2019 | Migration of certain elements requirement for furniture materials |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products – Structural performance and durability test standard | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units – Performance requirements for mobile pedestals | |
| ANSI/BIFMA e3-2019 | Furniture sustainability standard for material emissions and circularity |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2024 | General technical requirements for wooden office furniture, applicable to worktops and storage cabinets | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels used in interior finish and furniture | |
| GB 18584-2024 | Limit of harmful substances for wooden furniture for indoor use | |
| GB/T 15102-2017 | Specification for melamine-faced wood-based panels for furniture use | |
| GB/T 4897.3-2015 | Particle board for furniture and interior fitment applications |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2024: General technical requirements for wooden office furniture, applicable to worktops and storage cabinets; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels used in interior finish and furniture; 3. GB 18584-2024: Limit of harmful substances for wooden furniture for indoor use; 4. GB/T 15102-2017: Specification for melamine-faced wood-based panels for furniture use; 5. GB/T 4897.3-2015: Particle board for furniture and interior fitment applications; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
